header-product KVM switch ATEN CS682 — 2-port USB DVI-D KVM with audio, WUXGA 1920x1200, 60Hz, USB keyboard/mouse
57.99 €

KVM switch ATEN CS682 — 2-port USB DVI-D KVM with audio, WUXGA 1920x1200, 60Hz, USB keyboard/mouse

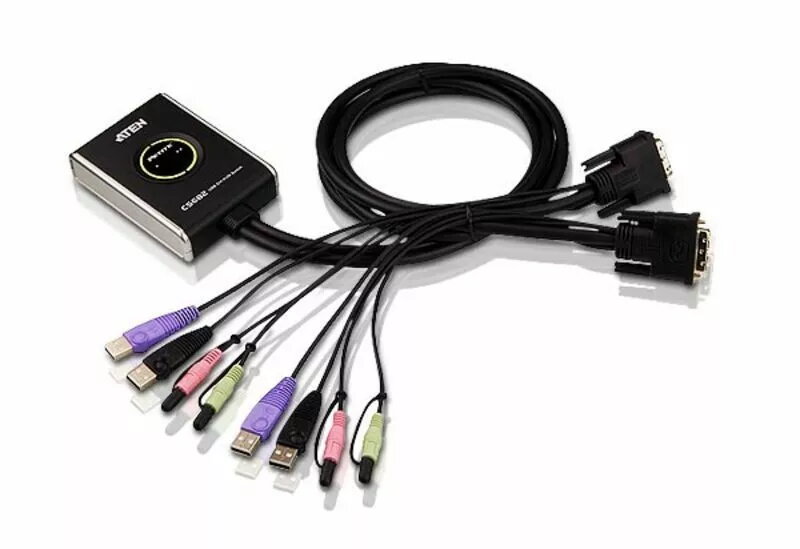

ATEN CS682 2‑Port USB DVI KVM Switch Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

KVM switch ATEN CS682 — 2-port USB DVI-D KVM with audio, WUXGA 1920x1200, 60Hz, USB keyboard/mouse

{{email}}
You keep track of price changes

KVM switch ATEN CS682 — 2-port USB DVI-D KVM with audio, WUXGA 1920x1200, 60Hz, USB keyboard/mouse

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

ATEN CS682 is a 2-port USB DVI KVM switch with audio supporting DVI‑D video and USB keyboard/mouse connections. It delivers up to WUXGA 1920×1200 at 60 Hz and 60 Hz video bandwidth, enables control of two computers from one console, and includes audio switching. Compact black unit powered by 5 V DC with typical consumption 1.9 W; ideal for office or workstation setups.
Available at price 57.99 €: 25 pcs.
Total available for order: 52 pcs.
Warranty: 2 Years
SKU: 354431
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
26.01.2027 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
29.01.2027 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.59 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
29.01.2027 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ATEN CS682 is a 2‑port USB DVI‑D KVM switch that allows control of two computers from a single console with audio support. It provides DVI‑D video at up to WUXGA 1920×1200 at 60 Hz and supports USB keyboard and mouse connections. The compact black unit includes a remote port selector for desktop switching, USB 2.0 peripheral sharing capability, and audio switching suitable for 2.1 speaker setups. The device is powered by a 5 V DC adapter and has a typical power consumption of 1.9 W.

Advantages

The CS682 integrates DVI‑D video transmission with USB keyboard/mouse control and audio switching in a single compact unit, reducing desktop clutter and simplifying multi‑computer workflows. Remote port selector placement enables convenient switching without moving the main unit, while USB 2.0 peripheral sharing allows attaching external devices compatible with the console. The unit’s support for WUXGA 1920×1200 at 60 Hz ensures high resolution output for office applications and graphical tasks.

Suitable for

  • Office workstations that require control of two computers from one keyboard, video display, and mouse
  • Design or CAD stations needing WUXGA resolution at 60 Hz
  • Environments where compact, out‑of‑the‑way KVM placement and desktop switching are preferred
  • Setups using 2.1 audio systems that benefit from audio switching between computers

Key specifications

  • Video type: DVI‑D with support up to WUXGA 1920×1200 @ 60 Hz
  • Keyboard port: USB
  • Mouse port: USB
  • Number of controlled computers: 2
  • Peripheral sharing: USB 2.0 support for connected devices
  • Audio: stereo audio switching with support for 2.1 speaker setups
  • Power: external 5 V DC supply, typical consumption 1.9 W
  • Colour: black
  • Weight: approximately 0.46 kg

How to use

Connect the DVI‑D, USB and audio cables from each computer to the corresponding KVM console ports on the CS682, then connect your monitor, USB keyboard and mouse, and audio devices to the console side. Plug in the supplied 5 V DC power adapter. Use the included remote port selector to switch between the two connected computers from your desktop; the main unit can be placed in a convenient out‑of‑the‑way location. Ensure video settings on each computer are configured for WUXGA 1920×1200 at 60 Hz if that resolution is required.

Usage recommendations

For stable video performance at WUXGA resolution, use certified DVI‑D cables and verify that connected graphics outputs are set to 1920×1200 @ 60 Hz. When sharing USB peripherals through the CS682, confirm device compatibility with USB 2.0 and avoid using high‑power devices that require separate power. Place the remote port selector within easy reach for frequent switching and position the main unit where cable runs are shortest to maintain signal integrity.

Specifications

Built-in display: A display which is part of the product, so you do not need to attach another display.
No
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
No
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200
HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
WUXGA
Video port type: The type of socket in the device for connecting a video e.g. SCART.
DVI-D
Mouse port type:
USB
Keyboard port type: The type of socket in the device for connecting a keyboard e.g. USB.
USB
Number of computers controlled: The amount of computers controlled by this device.
2
Product colour: The colour e.g. red, blue, green, black, white.
Black
Console ports:
3.5mm mic, USB A, DVI-D, 3.5mm headphone
All features

Logistics data

Products per master (outer) case:
10 pc(s)
Master (outer) case gross weight:
6610 g
Master (outer) case height:
182 mm
Master (outer) case length:
405 mm
Master (outer) case width:
395 mm
Master (outer) case net weight:
4600 g
Harmonized System (HS) code:
85176200

Packaging content

Manual:
Yes
Quick installation guide:
Yes

Packaging data

Package weight: Weight of the packaged product.
590 g
Package height: The distance from the top to the bottom of the packaging.
235 mm
Package depth: The distance from the front to the back of the packaging.
163 mm
Package width: The distance from one side of the packaging to the other.
70 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.46 kg
Height: The measurement of the product from head to foot or from base to top.
24 mm
Depth: The distance from the front to the back of something.
78 mm
Width: The measurement or extent of something from side to side.
111.5 mm

Operational conditions

Storage relative humidity (H-H):
0 - 80
Operating relative humidity (H-H):
0 - 80
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 50

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
1.9 W
Input voltage: The voltage (V) which is required to power the product.
5
Power source: What is providing power for the product e.g. mains electricity.
DC

Display

Built-in display: A display which is part of the product, so you do not need to attach another display.
No

Design

LED indicators:
Y
Product colour: The colour e.g. red, blue, green, black, white.
Black
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
No

Performance

Scan interval:
3, 5, 10, 20
Video bandwidth:
60 Hz
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200
HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
WUXGA

Ports & interfaces

Number of microphone inputs:
3
Headphone outputs: Number of sockets /ports where headphones are connected.
3
Audio connections: Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Yes
USB connector type: The type of USB connector/port that this product has.
USB Type-A, USB Type-B
USB 2.0 Type-A hub ports quantity:
4
Console ports:
3.5mm mic, USB A, DVI-D, 3.5mm headphone
Console USB ports quantity:
2
DVI-D ports quantity: This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog.
2
Video port type: The type of socket in the device for connecting a video e.g. SCART.
DVI-D
Mouse port type:
USB
Keyboard port type: The type of socket in the device for connecting a keyboard e.g. USB.
USB
Number of computers controlled: The amount of computers controlled by this device.
2
