KVM switch ATEN KL1508AM

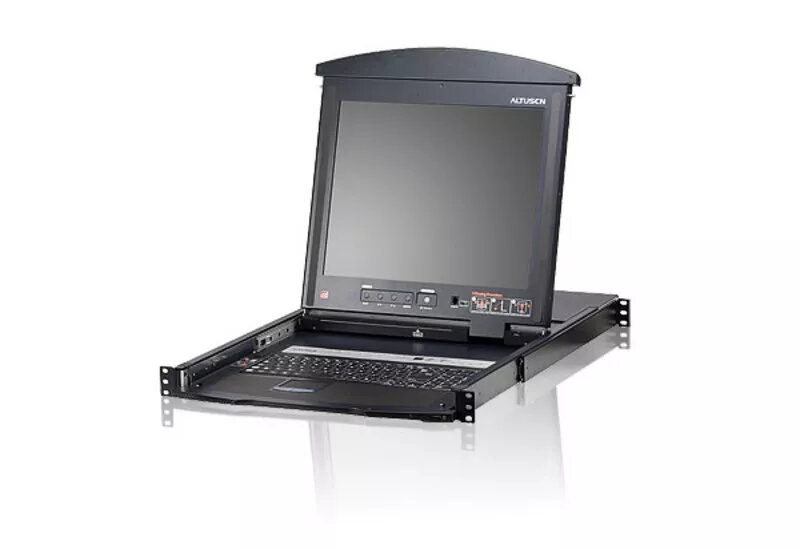

The ATEN KL1508AM is an 8-port Dual Rail LCD KVM switch that lets one keyboard, monitor and mouse control up to eight computers. It supports USB and PS/2 keyboard and mouse connections and uses space-saving RJ-45 Cat 5e/6 cabling with KVM adapter cables for flexible interface conversion (PS/2, USB, Sun, serial). The unit features a built-in 17"/19" style LCD console in a slim 1U-compatible Dual Rail housing, OSD menu navigation, and support for daisy-chaining up to 31 additional KVM switches to manage up to 256 computers.

Advantages

The KL1508AM offers centralized control for multiple platforms (PC, Mac, Sun, Serial) with high video quality up to 1600 x 1200 @ 60 Hz over Cat 5e/6 cabling and extended cable reach. It provides multiple secure access methods including multi-level user accounts and two-level password protection, configurable port access rights, and firmware upgradeability. Additional features include an extra console port for external consoles, LED station/port selectors for quick switching, LCD module rotation for better viewing angles, console lock, and broadcast and auto-scan modes for efficient system management.

Suitable for

• Server rooms and rack-mounted equipment racks where space efficiency is required
• IT administration tasks that require managing multiple computers from a single console
• Environments needing cross-platform control (PC, Mac, Sun, Serial)
• Maintenance tasks such as software deployment, upgrades and simultaneous commands via broadcast mode

Key specifications

• Model: ATEN KL1508AM
• Ports controlled: 8
• Console interfaces: Monitor, USB or PS/2 keyboard, USB or PS/2 mouse; supports external USB mouse
• Cabling: RJ-45 using Cat 5e/6 with KVM adapter cables (automatic interface conversion)
• Video support: up to 1600 x 1200 @ 60 Hz (up to 40 m); 1280 x 1024 @ 75 Hz (up to 50 m)
• Daisy chain: up to 31 additional KVM switches (max 256 computers)
• User accounts: up to 10 users + 1 administrator; two-level password security
• Power: 100–240 V, 50–60 Hz
• Colour: Black
• Includes: KL1508A KVM switch, firmware upgrade cable, power cord (1ADP-0005-005G), user instructions

How to use

Install the KL1508AM in a standard 1U rack position using the supplied rack mount kit. Connect each target computer to the KVM switch using the appropriate KVM adapter cable and Cat 5e/6 cabling terminated to the RJ-45 ports. Attach the console monitor, keyboard and mouse to the console ports; an external console may be connected to the extra console port if required. Use the front-panel station/port selectors, hotkey commands, or the multi-language OSD to switch between computers. Configure user accounts, port access rights and network settings through the OSD and perform firmware updates via the supplied upgrade cable when needed.

Usage recommendations

For optimal video performance and reliable connections, use high-quality Cat 5e/6 cables and supported KVM adapter cables. Ensure firmware is kept up to date and assign user accounts and port access rights according to administrative policies to maintain secure access.
