Short description

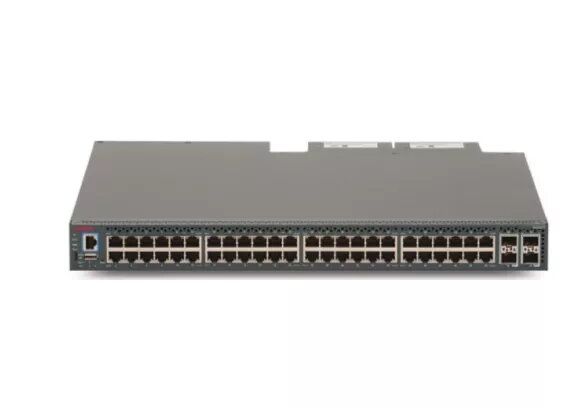

The Avaya ERS 5952GTS is a managed L2/L3 Gigabit Ethernet switch with 48 RJ-45 ports, 4 SFP+ modules, and a switching capacity of 260 Gbit/s. It supports various IEEE networking standards and features a MAC address table of 32,000 entries. Ideal for rack mounting, this 1U form factor switch ensures full duplex communication and efficient network management.

Available for order: 3 pcs.

Warranty: 2 Years

SKU: 2091352

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

24.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

27.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

27.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 61.42 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Avaya ERS 5952GTS is a managed L2/L3 Gigabit Ethernet switch designed for edge and rack-mount deployments. In a 1U chassis it provides 48 Gigabit RJ-45 ports and 4 SFP+ modules, supporting 10GbE uplinks and a switching capacity of 260 Gbit/s. The switch supports standard IEEE networking protocols and offers wire-speed performance, stacking capability, and features for converged voice, video, and data environments.

Advantages

The ERS 5952GTS delivers high-density Gigabit connectivity with 10G uplink options and a large MAC address table for complex networks. Its stacking architecture scales performance and availability, offering virtual backplane bandwidth when multiple units are combined. The switch supports L3 routing, PoE-ready deployment strategies, advanced QoS and MACsec-ready capabilities to simplify consolidation of communications and to optimize delay-sensitive and business-critical applications.

Suitable for

Enterprise wiring closets and top-of-rack aggregation
Environments requiring L2/L3 switching and advanced QoS
Converged networks carrying voice, video, and data
Scalable edge deployments where stacking and 10GbE uplinks are needed

Key specifications

Ports: 48 x Gigabit RJ-45 (10/100/1000) + 4 x SFP+
Switching capacity: 260 Gbit/s
10G support: Yes (SFP+ modules)
MAC address table: 32,000 entries
Networking standards: IEEE 802.3i/802.3u/802.3ab/802.3z/802.3ae/802.3ad/802.3x and IEEE 802.1Q/802.1p/802.1x/802.1w/802.1s/802.1ag/802.1D
Form factor: 1U rack-mount
Weight: 7.11 kg
Colour: Grey

How to use

Install the Avaya ERS 5952GTS in a standard 19-inch rack using its 1U form factor. Connect edge devices to the RJ-45 Gigabit ports and use the SFP+ slots for 10GbE uplinks or server interconnects. Configure stacking and L3 routing through the switch management interface or CLI according to network design. Apply VLANs, QoS policies, and security settings (including MACsec where supported) to ensure traffic segregation and prioritization for delay-sensitive services.

Usage recommendations

Use the ERS 5952GTS in conjunction with proper cooling and rack power distribution. When deploying stacked units, follow Avaya stacking guidelines to maximize virtual backplane bandwidth and redundancy. Regularly update firmware and back up configuration files to maintain network stability and security.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No
Power supply included: There is a power supply with this product.: No
Stackable: Devices can be placed on top of each other.: Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Switching capacity: The data transfer capacity of the switch per second.: 260 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 32000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: Yes
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.: 4
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 48
Switch type: What switch device has, managed or unmanaged.: Managed
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.1D, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab

All features

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 7.11 kg
Height: The measurement of the product from head to foot or from base to top.: 44 mm
Depth: The distance from the front to the back of something.: 508 mm
Width: The measurement or extent of something from side to side.: 440 mm

Operational conditions

Operating altitude:: 0 - 3048
Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 50

Power over Ethernet (PoE)

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 95 W
Input voltage: The voltage (V) which is required to power the product.: 120 - 220
Redundant power supply (RPS) support: Additional power supply which can run a computer if the main power supply fails.: Yes
Power supply included: There is a power supply with this product.: No

Performance

Noise level: The amplitude level of the undesired background noise, usually measured in decibels (db).: 40 dB
Flash memory:: 256 MB
Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.: 1024 MB
Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.: 800 MHz
Built-in processor: Whether or not a processor is built into the device.: Yes
Physical stacking (units):: 8

Design

Electromagnetic compatibility: List of countries and their respective regulatory agency standards with which the product complies.: CISPR22, CIRPR24, FCC part 15B, Class A USA EMC, ICES-003 Class A, VCCI, EN55022 Class A, CISPR22, EN55024, CISPR24, ACMA-RCM, GOST-R, CCC & MIIT, KC, CNS13438
Safety: List of regulatory safety standards for all countries in which this product has been certified.: IEC60950, EN60950-1, UL60950-1, CSA-C22.2, #60950-1, NOM, EN60950-1, ACMA-RCM, GOST-R, CCC & MIIT, CNS14336-1
LED indicators:: Yes
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Form factor: The shape or design of the product.: 1U
Stackable: Devices can be placed on top of each other.: Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes

Protocols

Management protocols:: SNMP v1/v2/v3, Telnet

Multicast features

Multicast support:: Yes

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: SSH, SSL/TLS, HTTPS, 802.1x RADIUS
Authentication:: Port-based authentication
IGMP snooping:: Yes

Data transmission

Jumbo frames:: 9216
Jumbo frames support:: Yes
Number of queues:: 8
Throughput:: 193 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 260 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 32000 entries

Optical fiber

Fiber ethernet cabling technology:: 1000BASE‑ZX, 1000BASE‑SX, 1000BASE‑LX, 1000BASE‑BX, 1000BASE-EX, 100BASE-FX, 10GBASE-SR, 10GBASE-LRM, 10GBASE-LR, 10GBASE-ER

Network

Virtual LAN features:: Port-based VLAN, Protocol-based VLAN, Tagged VLAN
VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.: Yes
Flow control support:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Spanning tree protocol:: Yes
Auto-negotiation:: Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Port mirroring:: Yes
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX, 1000BASE-T
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: Yes
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.1D, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab

Ports & interfaces

Console port:: RJ-45
Fiber ports quantity: The number of sockets (ports) for fibers (cables).: 4
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.: 4
Gigabit Ethernet (copper) ports quantity:: 48
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 48

Management features

System event log:: Yes
Traffic shaping:: Yes
ARP inspection:: Yes
Web-based management: Using a website/web application to manage something.: Yes
Quality of Service (QoS) support:: Yes
Switch layer: A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).: L2/L3
Switch type: What switch device has, managed or unmanaged.: Managed
