Short description

The Axis 01192-002 is a managed Gigabit Ethernet switch with 24 RJ-45 ports, supporting Power over Ethernet (PoE). It features a switching capacity of 52 Gbit/s and a MAC address table with 8000 entries. Compliant with IEEE 802.1x and IEEE 802.3at standards, this switch is ideal for efficient network management and power delivery to connected devices.

Available at price 1,265.99 €: 11 pcs.

Total available for order: 33 pcs.

Warranty: 2 Years

SKU: 921765

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 4.11 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 44.06 euros per month

Available for private customers at price 1,463.99 €: 11 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

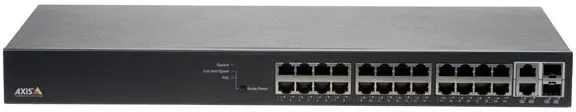

AXIS T8524 PoE+ Network Switch (Model 01192-002) is a 24-port managed Gigabit Ethernet switch with Power over Ethernet (PoE) support designed for surveillance and network installations. The switch includes an integrated DHCP server for automatic IP assignment and discovery of connected Axis devices, and provides a graphical administrator interface with topology overview showing device status and connections.

Advantages

The device delivers high PoE power output capable of supplying up to 24 PoE cameras, while the managed switch functions and compliance with IEEE 802.1x and IEEE 802.3at enable secure network management and reliable power delivery. With a switching capacity of 52 Gbit/s and an 8000-entry MAC address table, it supports stable traffic handling in medium-sized surveillance deployments. The compact, black unit is straightforward to install and integrates with Axis recorders to simplify system setup.

Suitable for

IP video surveillance systems requiring PoE-powered cameras
Medium-sized network segments needing managed Gigabit switching
Installations where automatic device discovery and centralized topology view are useful

Key specifications

Brand: AXIS, Model: 01192-002 (T8524)
Ports: 24 × RJ-45 Gigabit Ethernet (10/100/1000)
PoE: PoE+ (IEEE 802.3at) support for connected devices
Switching capacity: 52 Gbit/s
MAC address table: 8000 entries
Networking standards: IEEE 802.1x, IEEE 802.3at
Integrated DHCP server and graphical topology administrator interface
Colour: Black; Weight: 3.2 kg

How to use

Mount the AXIS T8524 in the rack or place it on a stable surface and connect power. Connect network devices and PoE cameras to the RJ-45 ports. Use the built-in DHCP server to enable automatic IP address assignment and device discovery, or configure static IPs if required. Access the web-based administrator interface to view the graphical topology, review device status, set up VLANs, security (IEEE 802.1x) and other managed-switch features. Monitor PoE power budget to ensure connected cameras receive sufficient power.

Usage recommendations

For optimal performance in surveillance installations, plan the PoE budget before connecting all cameras, keep firmware up to date, and use the graphical topology view to verify device connectivity and status during setup and maintenance.

Specifications

Switch type:: Managed
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Weight:: 3.2 kg
Basic switching RJ-45 Ethernet ports quantity:: 24
Networking standards:: IEEE 802.1x, IEEE 802.3at
Product colour:: Black

All features

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet plus (PoE+) ports quantity:: 24
Total Power over Ethernet (PoE) budget:: 370 W
Power over Ethernet (PoE) power per port:: 30 W

Packaging content

Cables included:: AC
User guide:: Yes
Rack mount kit:: Yes

Packaging data

Rubber feet:: Yes

Management features

Quality of Service (QoS) support:: Yes
Switch type:: Managed
ARP inspection:: Yes

Ports & interfaces

Combo SFP ports quantity:: 2
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 24

Power

Surge protection voltage:: 6 kV
Surge protection:: Yes
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -10 - 70
Operating temperature (T-T):: 0 - 50
Storage relative humidity (H-H):: 5 - 95

Logistics data

Harmonized System (HS) code:: 85176990

Weight & dimensions

Weight:: 3.2 kg
Height:: 44 mm
Width:: 442 mm
Depth:: 211 mm

Data transmission

MAC address table:: 8000 entries
Switching capacity:: 52 Gbit/s
Jumbo frames support:: Yes
Throughput:: 38.7 Mpps
Jumbo frames:: 9216

Network

Networking standards:: IEEE 802.1x, IEEE 802.3at
VLAN support:: Yes
Virtual LAN features:: Private VLAN

Security

Security algorithms:: SNMP, HTTPS, SNMPv3
Access Control List (ACL):: Yes
SSH/SSL support:: Yes
IGMP snooping:: Yes
Password protection:: Yes
BPDU filtering/protection:: Yes
ICMP attack prevention:: Yes
DHCP features:: DHCP server, DHCP snooping

Design

Rack mounting:: Yes
Product colour:: Black
Housing material:: Metal
