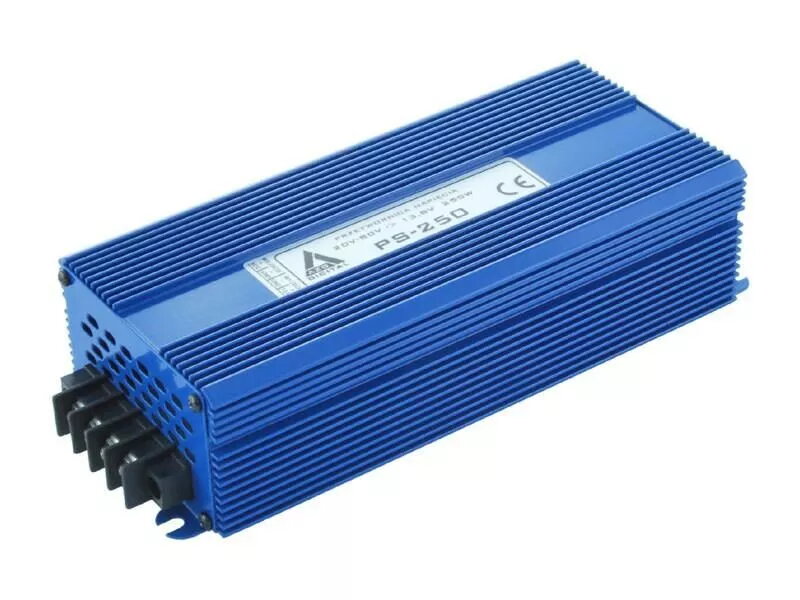

The AZO Digital PS-250-24V is a professional-grade DC/DC voltage converter engineered to provide a stable 24V DC output from a wide input range of 30V to 80V DC. With a robust power capacity of 250W, this device is designed to handle demanding electrical loads while maintaining high efficiency. The inclusion of galvanic isolation ensures that the input and output circuits are electrically separated, providing superior protection against voltage spikes and ground loops, which is essential for sensitive electronic equipment.
Advantages
This converter stands out due to its wide input voltage tolerance, making it highly versatile for various power sources. The galvanic isolation feature significantly enhances operational safety by preventing electrical interference and protecting connected devices from potential surges. Its compact and durable design, combined with an IP21 rating, ensures reliable performance in indoor industrial and automotive environments where consistent power conversion is critical for system stability.
Suitable for
- Industrial automation systems
- Automotive power supply stabilization
- Telecommunications equipment
- Renewable energy storage systems
- Marine electrical installations
When it may not be suitable
This device is not intended for outdoor use where it may be exposed to direct rain, moisture, or high levels of dust, as the IP21 rating only provides protection against vertically falling water drops and solid objects larger than 12mm. It is also not suitable for applications requiring an AC output, as this is a dedicated DC/DC converter.
Key specifications
- Input voltage range: 30V to 80V DC
- Output voltage: 24V DC
- Maximum power output: 250W
- Galvanic isolation: Yes
- Ingress protection rating: IP21
How to use
Installation should be performed by a qualified technician to ensure all electrical connections are secure and properly insulated. Connect the input power source to the designated input terminals, ensuring the polarity is correct. Connect the load to the output terminals, verifying that the total power consumption does not exceed the 250W limit. Ensure the unit is mounted in a well-ventilated area to allow for proper heat dissipation during operation.
What to consider before purchase
- Verify that your input voltage source consistently falls within the 30V to 80V range.
- Calculate the total wattage of your connected devices to ensure it remains under the 250W threshold.
- Confirm that the installation environment meets the IP21 protection requirements.
- Check that the output voltage of 24V is compatible with your specific equipment requirements.
Usage recommendations: Always use appropriately sized wiring for the input and output connections to prevent voltage drops and overheating. Periodically inspect the terminals for signs of corrosion or loose connections to maintain optimal performance.
