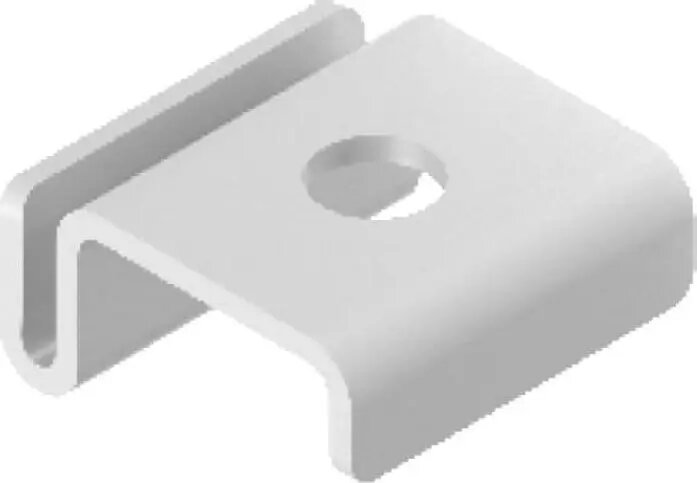

Baks UPPMC Intermediate Panel Clamp 897301

The Baks UPPMC intermediate panel clamp is a professional-grade mounting component engineered for the secure and stable installation of solar panels. Designed to provide a reliable connection between adjacent modules, this clamp ensures that your photovoltaic array remains firmly in place, maintaining structural integrity even under challenging environmental conditions. Its robust construction and precise design facilitate efficient assembly, making it an essential element for high-quality solar energy systems.

Advantages

This intermediate clamp offers exceptional durability and resistance to external factors, ensuring a long service life for your solar installation. The design allows for quick and straightforward mounting, which significantly reduces installation time and labor costs. By providing a consistent and secure grip, the clamp helps maintain the alignment of the solar panels, which is crucial for optimal performance and safety of the entire photovoltaic system.

Suitable for

• Professional photovoltaic solar panel installations
• Securing solar modules on mounting rails
• Commercial and residential solar energy projects

When it may not be suitable

This clamp is specifically designed for intermediate use between two panels. It is not suitable for securing the ends of a solar array, where end clamps are required. Additionally, it may not be compatible with mounting rails or solar panels that fall outside the specified dimensional tolerances of the clamp.

Key specifications

• Type: Intermediate panel clamp
• Material: Corrosion-resistant metal
• Function: Secures two adjacent solar panels
• Compatibility: Standard solar mounting systems

How to use

To install the Baks UPPMC intermediate panel clamp, position the clamp between two adjacent solar panels already placed on the mounting rails. Ensure that the clamp is properly aligned with the frame of both panels. Tighten the fastening bolt according to the manufacturer's torque specifications to ensure a secure connection without damaging the panel frames. Verify that the panels are held firmly and do not move before proceeding to the next section of the array.

What to consider before purchase

• Verify the thickness of your solar panel frames to ensure compatibility with the clamp range
• Check the spacing requirements between panels as specified by your mounting system design
• Ensure the clamp material is suitable for your local environmental conditions

Usage recommendations

Always follow the specific installation manual provided by the mounting system manufacturer to ensure structural safety and warranty compliance. Regularly inspect the clamps during routine maintenance to ensure they remain tight and free from damage.
