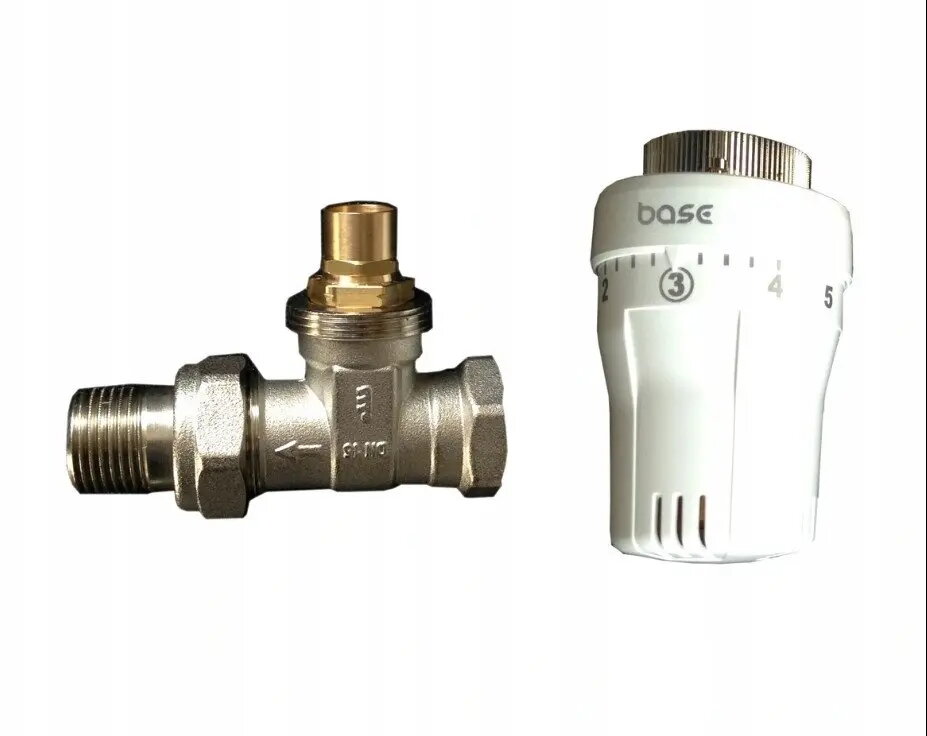

Thermostatic return temperature limiter Basic RTL with thermostatic head and straight thermostat valve 1/2x3/4 male

The Basic Thermostatic return temperature limiter (RTL) with thermostatic head and straight thermostat valve 1/2x3/4 male is designed to control return-water temperature in central heating systems. The unit combines a thermostatic sensing head and a straight valve to regulate flow to the return line, maintaining the set temperature and preventing excessively hot water from returning to the boiler. This device is suitable for installations where limiting the return temperature is required to protect heat generators and to ensure stable hydraulic and thermal behaviour of radiators and heating circuits.

Advantages

The integrated construction simplifies installation by combining the sensing element and valve in a single assembly. The thermostatic head provides automatic, temperature-dependent flow regulation, reducing the need for manual adjustment. By limiting return temperature, the RTL helps protect condensing boilers from high return-water temperatures and can improve system efficiency. The straight valve design and standardized 1/2x3/4 male connection facilitate connection to common radiator and piping configurations.

Suitable for

• Domestic and light-commercial radiator circuits where return temperature control is required
• Central heating systems with condensing boilers to maintain low return-water temperature
• Hydronic zones where preventing thermal shock or corrosion in the heat generator is important

Key specifications

• Type: thermostatic return temperature limiter with integrated thermostatic head
• Valve orientation: straight (inline) valve
• Connection: male thread 1/2 x 3/4
• Function: regulates flow to limit return-water temperature based on setpoint
• Application: radiator and central heating circuits

How to use

Install the RTL in the return pipe of the radiator or heating circuit following local plumbing codes and the system layout. Mount the device with the flow direction and thread orientation matching the piping; use appropriate sealing on threaded connections. Set the desired return temperature on the thermostatic head according to boiler manufacturer recommendations or system design values. The device will then modulate flow automatically to maintain the selected return-water temperature.

Usage recommendations

For reliable operation, check compatibility with the boiler and radiator connections before installation, and ensure the system is flushed and free of debris. Regular visual inspection and occasional functional testing of the thermostatic head are recommended. When integrating with condensing boilers, select a return temperature setpoint that supports condensing operation to maximize efficiency while respecting boiler manufacturer guidance.
