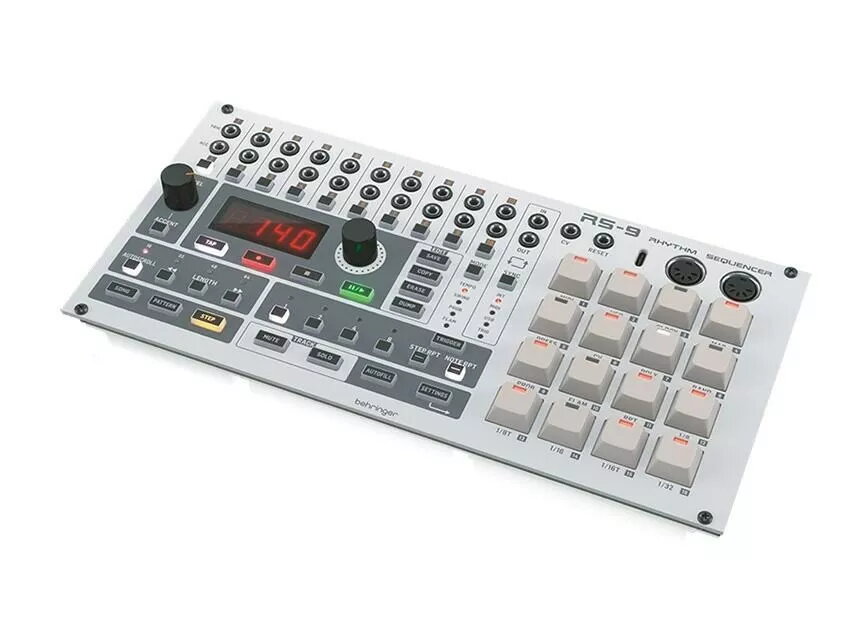

Eurorack Housing for Drum Machine Behringer RS-9 — Eurorack Module Case

The Eurorack Housing for Drum Machine Behringer RS-9 is a purpose-built module case that allows the Behringer RS-9 drum machine electronics to be mounted and integrated into a standard Eurorack system. Designed to provide a compact, rack-compatible enclosure, the housing offers secure fixing points and clear access to front-panel controls and connectors so the RS-9 can operate alongside other modular synth modules in studio and live environments.

Advantages

This Eurorack housing provides a precise fit for the RS-9 electronics while maintaining the standard Eurorack module width and depth so it aligns cleanly with other modules in a case. The enclosure ensures stable mounting and helps protect internal circuitry from accidental movement or stress during transport. It also preserves access to the unit’s control surface and jacks, enabling seamless patching and immediate visual feedback when used in a modular setup.

Suitable for

• Integrating the Behringer RS-9 drum machine into a Eurorack modular system
• Studio setups where modular routing and compact organization are required
• Live performance rigs needing secure module mounting and quick access to controls
• DIY module builds or repairs that require a standardized Eurorack enclosure

Key specifications

• Form factor: Eurorack-compatible module case designed to fit the Behringer RS-9 electronics
• Mounting: Panel and internal fixing points for secure attachment of PCB and controls
• Front panel: Cutouts and spacing to match RS-9 controls and jacks for direct access
• Compatibility: Designed for standard Eurorack rails and spacing to align with other modules
• Construction: Rigid enclosure to protect internal components and maintain alignment in transit

How to use

Mount the RS-9 circuit board or module assembly into the housing using the supplied fixing points and screws, aligning controls and jacks with the front panel openings. Install the assembled housing into a Eurorack case by securing it to the rails in the desired location, ensuring correct alignment with adjacent modules. Connect power and patch cables according to your system’s layout and verify that all front-panel controls and jacks are accessible and function as expected.

Usage recommendations

Handle the electronics with anti-static precautions when installing into the housing. Verify that mounting hardware is snug but not over-tightened to avoid damaging PCB traces or component leads. Use the housing in a Eurorack case with appropriate power distribution and ensure cable routing avoids strain on connectors.
