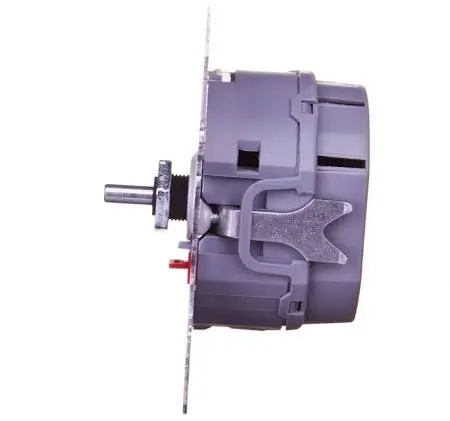

Lighting controller Hager 289110, AC 230 V, 50–60 Hz, metallic finish

Hager 289110 is a lighting controller for mains operation with AC 230 V input and 50–60 Hz frequency, supplied in a metallic finish. Designed to switch and control electronic ballasts and 1–10 V Tronic transformers up to 105 W, the unit provides a compact solution for reliable lighting control in residential and commercial installations. The controller meets relevant interface standards and includes built-in protection to ensure safe operation.

Advantages

The controller supports switching and control of electronic ballasts and 1–10 V Tronic transformers, allowing smooth dimming and level control for compatible luminaires. It features a control current of 50 mA and a switching current rating of 6 A, suitable for typical lighting circuits. Safety is addressed by short-circuit and overload protection using a fine-wire fuse, and a spare fuse is included for quick replacement. A metallic finish provides a durable exterior suitable for visible installation locations.

Suitable for

• Switching and dimming electronic ballasts in residential lighting
• Controlling 1–10 V Tronic transformers in commercial interiors
• Retrofitting existing lighting circuits requiring mains-powered controllers
• Applications where compact, fuse-protected lighting control is needed

Key specifications

• Supply voltage: AC 230 V
• Frequency: 50–60 Hz
• Compatible load types: electronic ballasts and 1–10 V Tronic transformers
• Maximum load rating: 105 W
• Control current: 50 mA
• Switching current: 6 A
• Protection: short-circuit and overload proof with fine-wire fuse; spare fuse included
• Mounting/shaft interface: axis dimension Ø 4 mm
• Finish: metallic

How to use

Install the lighting controller into the electrical circuit according to applicable wiring standards and local regulations. Connect supply and load conductors to the designated terminals, ensuring compatibility with electronic ballasts or 1–10 V Tronic transformers and verifying the total connected load does not exceed 105 W. Use an appropriate control interface or rotary shaft with Ø 4 mm axis dimension for manual adjustment where required. Replace the fine-wire fuse only with the supplied spare type or an equivalent rated fuse, and disconnect power before servicing.

Usage recommendations

Verify compatibility of connected ballasts and transformers with a 50 mA control current and the listed interface standard. For safety and long-term reliability, ensure installation is performed by a qualified electrician and the total connected load remains within the specified 105 W limit. Regularly inspect the fuse and replace with the spare provided if necessary.
