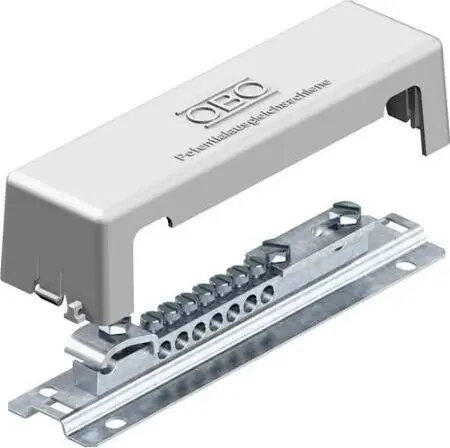

Bettermann 1809/M Equipotential Bonding Busbar 7x25mm2 and 1x Flat Conductor

The Bettermann 1809/M equipotential bonding busbar is a high-quality component engineered for effective electrical grounding and potential equalization within building installations. It provides a secure connection point for various conductors, ensuring that all metallic parts of a building's electrical system remain at the same potential. This helps to minimize the risk of dangerous voltage differences, which is critical for both personal safety and the protection of sensitive electronic equipment.

Advantages

This busbar is constructed from durable materials designed to withstand the rigors of professional electrical environments. Its design allows for organized and reliable cable management, facilitating a clean and efficient installation process. By providing multiple connection points, it simplifies the task of integrating various grounding conductors into a single, unified system, thereby enhancing the overall reliability of the building's lightning protection and electrical distribution infrastructure.

Suitable for

• Main equipotential bonding in residential and commercial buildings
• Integration of grounding conductors in electrical distribution boards
• Connection of flat conductors in lightning protection systems
• Potential equalization for metallic piping and structural elements

When it may not be suitable

This busbar is not intended for use in high-voltage transmission lines or environments where extreme chemical corrosion may compromise the integrity of the metal contacts. It is also not suitable for applications requiring a higher number of connection points than those provided by the standard configuration.

Key specifications

• Seven connection points for conductors up to 25mm2
• One dedicated connection point for a flat conductor
• Designed for standard equipotential bonding applications
• Robust construction for long-term electrical reliability

How to use

Installation should be performed by a qualified electrician in accordance with local electrical codes. The busbar is typically mounted on a wall or within an electrical cabinet using the provided mounting holes. Once secured, individual grounding conductors are inserted into the terminals and tightened to the specified torque to ensure a low-resistance connection. The flat conductor is secured to its designated terminal to complete the potential equalization circuit.

What to consider before purchase

• Verify that the number of connection points meets your specific project requirements
• Ensure the cross-section of your conductors does not exceed the 25mm2 limit
• Confirm compatibility with your existing grounding or lightning protection system
• Check the mounting space available in your electrical enclosure

Usage recommendations

Regular inspections of the connections are recommended to ensure they remain tight and free from oxidation, maintaining the integrity of the grounding system over time.
