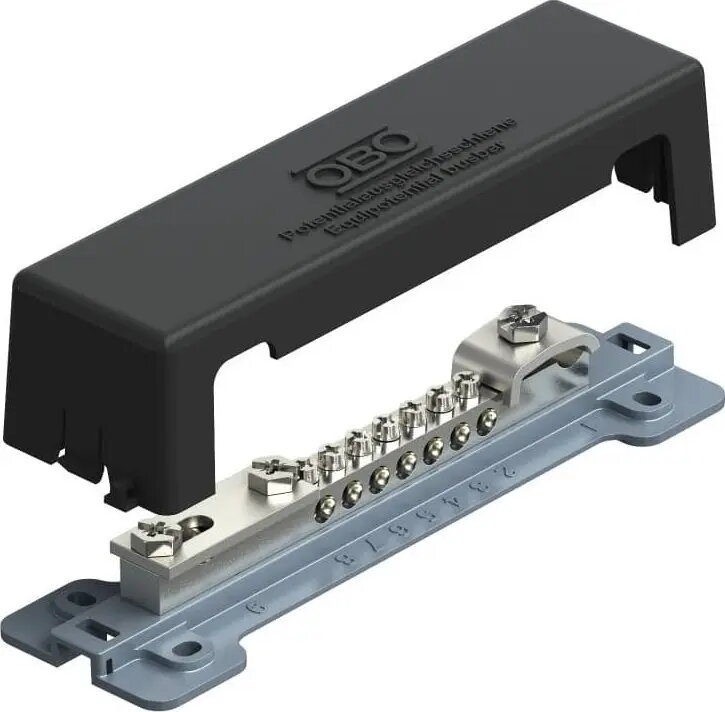

Bettermann 1809 A Equipotential Bonding Busbar with UV-Resistant Cover and Metal Base

The Bettermann 1809 A equipotential bonding busbar is a professional-grade component engineered for reliable earthing and potential equalization within electrical systems. Constructed with a durable metal base and a high-quality UV-resistant cover, this busbar is designed to maintain structural integrity and performance even when exposed to challenging environmental conditions. It serves as a central connection point for grounding conductors, ensuring safety and compliance in both residential and industrial electrical installations.

Advantages

This equipotential bonding busbar offers exceptional mechanical strength due to its robust metal base, which provides a stable foundation for all connected conductors. The inclusion of a UV-resistant cover ensures that the internal components remain protected from degradation caused by sunlight, making it suitable for installations where exposure to light is a factor. Its versatile terminal configuration allows for the simultaneous connection of multiple conductor types, simplifying the setup of complex grounding systems while maintaining high electrical conductivity and secure contact points.

Suitable for

• Residential electrical grounding systems
• Industrial building potential equalization
• Outdoor installations requiring UV protection
• Main earthing terminals in distribution boards

This product may not be suitable for environments with extreme chemical exposure or high-vibration areas where specialized industrial-grade vibration-proof terminals are required. It is also not intended for use in high-voltage transmission lines or specialized telecommunications grounding systems that require specific shielding or non-standard connection geometries.

Key specifications

• Base material: Metal
• Cover material: UV-resistant plastic
• Terminal capacity: 7 x 25 mm² conductors
• Additional capacity: 1 x 10 mm conductor
• Flat conductor capacity: 1 x flat conductor

To use the Bettermann 1809 A, mount the metal base securely to the desired surface within your electrical cabinet or wall enclosure. Insert the grounding conductors into the appropriate terminal slots and tighten the screws firmly to ensure a low-resistance connection. Once all conductors are secured, snap the UV-resistant cover into place to protect the terminals from dust, moisture, and environmental degradation. Ensure that all connections are verified by a qualified electrician to meet local safety standards.

What to consider before purchase

• Verify the cross-section of your grounding conductors matches the terminal capacity
• Ensure the mounting location provides sufficient space for cable routing
• Confirm that the installation environment does not exceed the material's chemical resistance limits

For optimal safety and performance, always ensure that the equipotential bonding busbar is installed by a certified professional and that all connections are periodically inspected for tightness and signs of corrosion.
