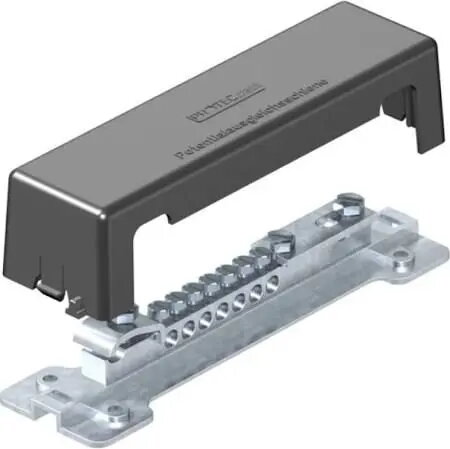

Bettermann 1809 A Potential Equalization Busbar with 7x25mm2, 1x10mm2 and Flat Conductor Connections

The Bettermann 1809 A potential equalization busbar is a high-quality component engineered for secure equipotential bonding within electrical systems. It serves as a central connection point to ensure that all conductive parts in a building are at the same electrical potential, thereby minimizing the risk of dangerous voltage differences. This busbar is constructed from durable materials to provide long-term reliability and consistent performance in both residential and industrial environments.

Advantages

This busbar offers a versatile connection layout that accommodates various conductor sizes, making it highly adaptable for complex electrical installations. Its robust design ensures a low-resistance connection, which is critical for effective grounding and lightning protection systems. The unit is built to withstand mechanical stress and environmental factors, ensuring that the integrity of the electrical installation is maintained over time. By centralizing multiple connections, it simplifies the wiring process and improves the overall organization of the grounding system.

Suitable for

• Residential electrical grounding systems
• Industrial building equipotential bonding
• Lightning protection installations
• Integration with main earthing terminals

When it may not be suitable

This busbar is not intended for use in high-voltage transmission lines or specialized environments where extreme chemical corrosion might exceed the material specifications. It should not be used as a substitute for primary circuit protection devices.

Key specifications

• 7 connections for conductors up to 25mm²
• 1 connection for conductors up to 10mm²
• Dedicated terminal for flat conductors
• Designed for professional electrical installations

How to use

Installation should be performed by a qualified electrician in accordance with local electrical codes. The busbar is typically mounted on a wall or within an enclosure using the provided mounting points. Conductors are inserted into the respective terminals and secured by tightening the screws to the recommended torque to ensure a firm mechanical and electrical connection. Ensure that all connections are clean and free of oxidation before installation.

What to consider before purchase

• Verify the total number of conductors required for your specific installation
• Ensure the cross-section of your cables matches the terminal capacity
• Check the mounting space available in your electrical cabinet or wall area

Usage recommendations

Regularly inspect the connections for signs of loosening or corrosion, especially in environments with high humidity or vibration, to maintain optimal electrical safety.
