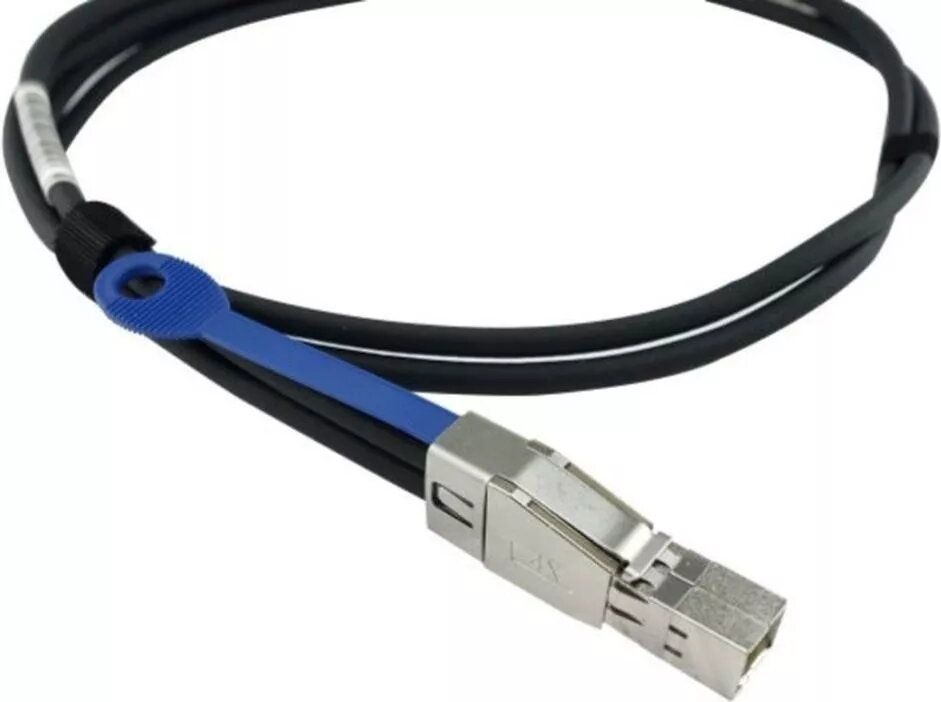

CBO MiniSAS cable 5 m model 10117949-4050LF for storage and server connections

CBO MiniSAS cable 5 m model 10117949-4050LF for storage and server connections is a 5-metre MiniSAS cable designed for high-density storage and server interconnections. It provides a single-cable solution to link SAS host adapters, RAID controllers and external storage enclosures in data centre and enterprise environments. The cable supports flexible layout changes and extensions while maintaining a reliable serial attachment connection for storage subsystems.

Advantages

The cable offers a compact MiniSAS connector design that reduces cable clutter and simplifies rack cabling. With a 5 m length it enables flexible placement of servers and storage units without the need for additional extension modules. The construction is intended for robust, continuous operation in dense server environments, providing consistent signal integrity for high-speed serial data transfers.

Suitable for

• Connecting SAS host adapters to external storage enclosures
• Linking RAID controllers with JBOD or SAN expansion units
• Reorganising rack layouts where a medium-length external SAS link is required
• Enterprise and data centre server-to-storage connections

Key specifications

• Cable length: 5 metres
• Interface type: MiniSAS (external serial attached SCSI connector)
• Application: external server-to-storage interconnects
• Design: high-density connector to reduce rack cable bulk
• Environment: intended for data centre and enterprise use

How to use

Install the MiniSAS cable by inserting each connector into the corresponding external SAS port on the host adapter, RAID controller or storage enclosure until it seats firmly. Route the cable through rack channels or cable management panels to minimise strain and avoid tight bends; maintain the recommended bend radius for high-speed data cables. Verify link status on the connected devices and check for any error indicators after powering up the systems.

Usage recommendations

For reliable operation, avoid running the cable near high-power electrical sources or heavy electromagnetic interference. Use proper cable management in racks to prevent kinking and to preserve signal integrity; replace the cable if the connector shell or cable jacket shows visible damage. Confirm compatibility with your SAS host adapter and external enclosure specifications before deployment.
