header-product SFP28 transceiver module BlueOptics AFBR-735JAMZ-BO 25000 Mbit/s 850 nm
58.99 €

SFP28 transceiver module BlueOptics AFBR-735JAMZ-BO 25000 Mbit/s 850 nm

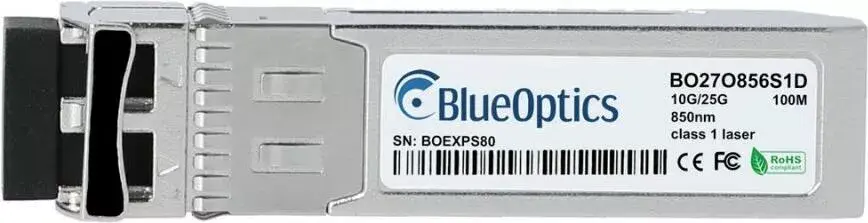

SFP28 transceiver BlueOptics AFBR-735JAMZ-BO Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

SFP28 transceiver module BlueOptics AFBR-735JAMZ-BO 25000 Mbit/s 850 nm

{{email}}
You keep track of price changes

SFP28 transceiver module BlueOptics AFBR-735JAMZ-BO 25000 Mbit/s 850 nm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The BlueOptics AFBR-735JAMZ-BO is an SFP28 fiber optic transceiver module with a maximum data transfer rate of 25000 Mbit/s and operates at 850 nm. It features a silver color, weighs 40 g, and has a form factor of SFP28. The module has a mean time between failures (MTBF) of 3000000 hours and complies with CE, FCC, and RoHS standards.
Available for order: 255 pcs.
Warranty: 2 Years
SKU: 11250903
Manufacturer: BlueOptics
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The BlueOptics AFBR-735JAMZ-BO is an SFP28 fiber optic transceiver module designed for short-range 10/25GBASE-SR applications. It supports a maximum data transfer rate of 25000 Mbit/s over multimode fiber at a wavelength of 850 nm and uses an LC duplex connector. The module is supplied in a silver housing, has a compact SFP28 form factor and a weight of 40 g. It is built to meet CE, FCC and RoHS standards and offers an expected MTBF of 3,000,000 hours.

Advantages

The module provides simultaneous transmit and receive functionality with standard-compliant LC duplex connections and is compatible with common Broadcom-based hardware platforms. It implements Digital Diagnostics Monitoring (DDM/DOM) compliant with SFF-8472 for real-time monitoring of supply voltage, laser current, optical output/input power and temperature. Components are selected to match MSA requirements, ensuring interoperability, stable optical performance over multimode fiber and a long service life.

Suitable for

  • Short-range high-speed connections between switches and routers in data centers
  • Server-to-switch and switch-to-switch uplinks at 10G/25G
  • Storage systems and SAN fabrics requiring low-latency optical links
  • Measurement and testing equipment that support SFP28 SR modules

Key specifications

  • Form factor: SFP28 (LC duplex)
  • Data rate: up to 25 Gbit/s
  • Wavelength: 850 nm
  • Maximum transfer distance over multimode fiber: 100 m
  • Connector type: LC
  • Color: silver
  • Weight: 0.04 kg
  • Digital Diagnostics Monitoring: SFF-8472 compatible
  • Standards compliance: CE, FCC, RoHS
  • MTBF: 3,000,000 hours

How to use

Install the SFP28 transceiver into an SFP28-compatible port on supported network equipment according to the device manufacturer’s instructions, ensuring the module is fully seated until the latch engages. Connect LC duplex multimode fiber patch cables to the transceiver, observing correct transmit/receive orientation. Verify that the host device recognizes the module and, if required, enable or check DDM/DOM monitoring in the management interface to view real-time diagnostic values. For safe handling, avoid touching the optical interfaces and keep protective dust caps on until connection.

Usage recommendations

Use OM3/OM4 multimode fiber for optimal 25G performance up to the specified 100 m distance, and pair the transceiver with matched LC duplex patch cables and compatible Broadcom-based hardware to ensure interoperability and access to DDM data. Store and handle the module in accordance with industry ESD precautions and keep connectors clean to maintain signal quality.

Specifications

Maximum data transfer rate:
25000 Mbit/s
Maximum transfer distance:
100 m
Weight:
0.04 kg
Fiber optic connector:
LC
Product colour:
Silver
All features
Interface type:
SFP28
Maximum operating temperature:
70 °C
Brand compatibility:
Broadcom
SFP transceiver type:
Fiber optic
Minimum operating temperature:
0 °C
Multi-mode fiber (MMF) supported:
Yes
SFP transceiver standard:
SR

Network

Maximum data transfer rate:
25000 Mbit/s
Fiber ethernet cabling technology:
10GBASE, 2.5GBASE

Ports & interfaces

Fiber optic connector:
LC

Technical details

Warranty period:
5 year(s)

Performance

Maximum transfer distance:
100 m
Mean time between failures (MTBF):
3000000 h
Wavelength:
850 nm
Rx wavelength (max):
850 nm
Rx wavelength (min):
850 nm
Tx wavelength (min):
850 nm
Tx wavelength (max):
850 nm

Weight & dimensions

Weight:
0.04 kg

Other features

Form factor:
SFP28

Certificates

Compliance certificates:
RoHS, Federal Communications Commission (FCC), CE

Operational conditions

Operating temperature (T-T):
0 - 70

Sustainability

Sustainability compliance:
Yes

Features

Product colour:
Silver
Digital Diagnostics Monitoring (DDM):
Yes

Packaging data

Package weight:
50 g

Logistics data

Quantity per pack:
1 pc(s)

Description

Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Customer questions

FAQ

How much does the SFP28 transceiver BlueOptics AFBR-735JAMZ-BO cost, and is it available for purchase?

The price is 58.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 255 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 23.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All BlueOptics products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized BlueOptics service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: maximum data transfer rate, maximum transfer distance, weight, fiber optic connector, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
