header-product Fiber optic transceiver module BlueOptics BO28L13610DS-BO 100000 Mbit/s QSFP28
430.99 €

Fiber optic transceiver module BlueOptics BO28L13610DS-BO 100000 Mbit/s QSFP28

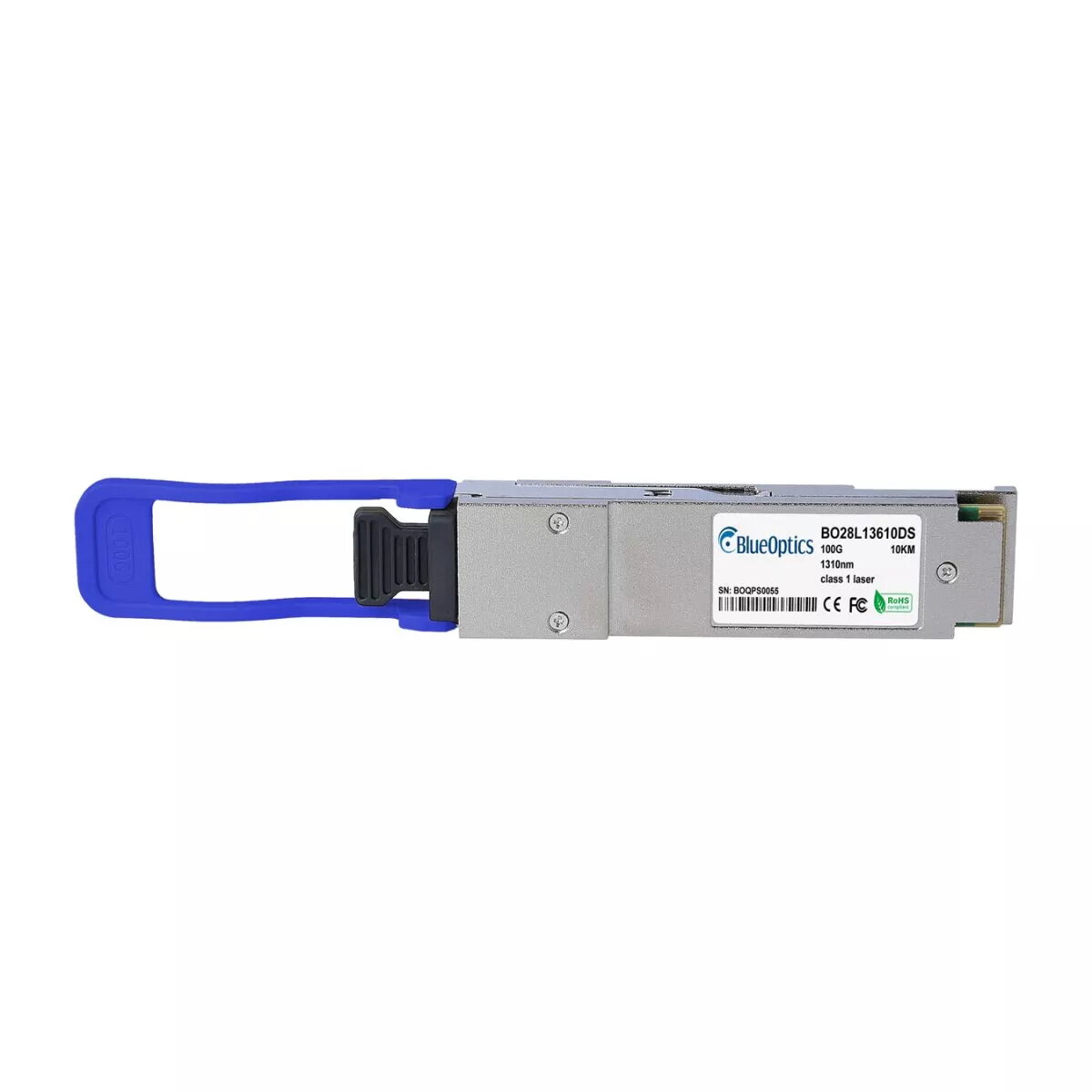

Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 1

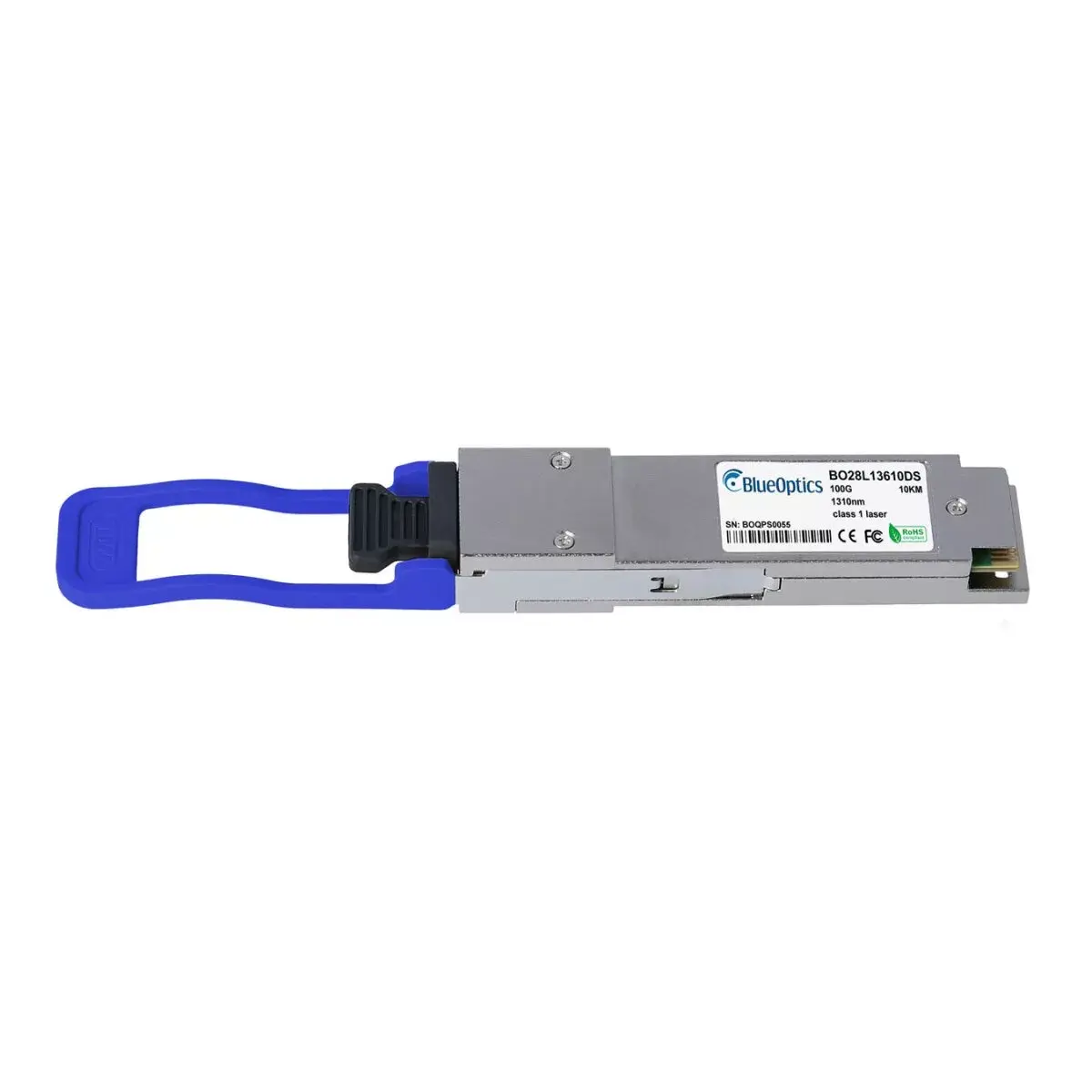

Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 2

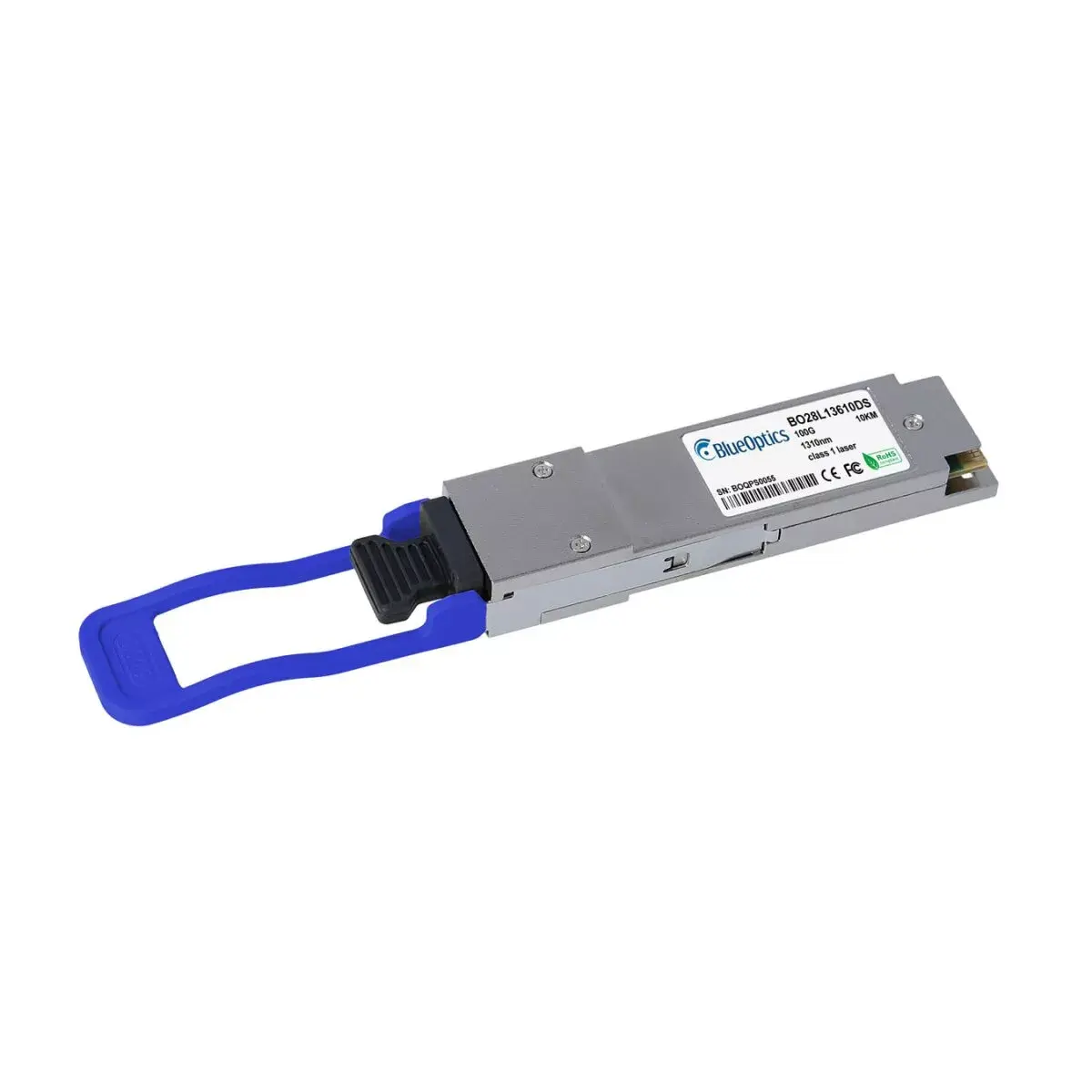

Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 3

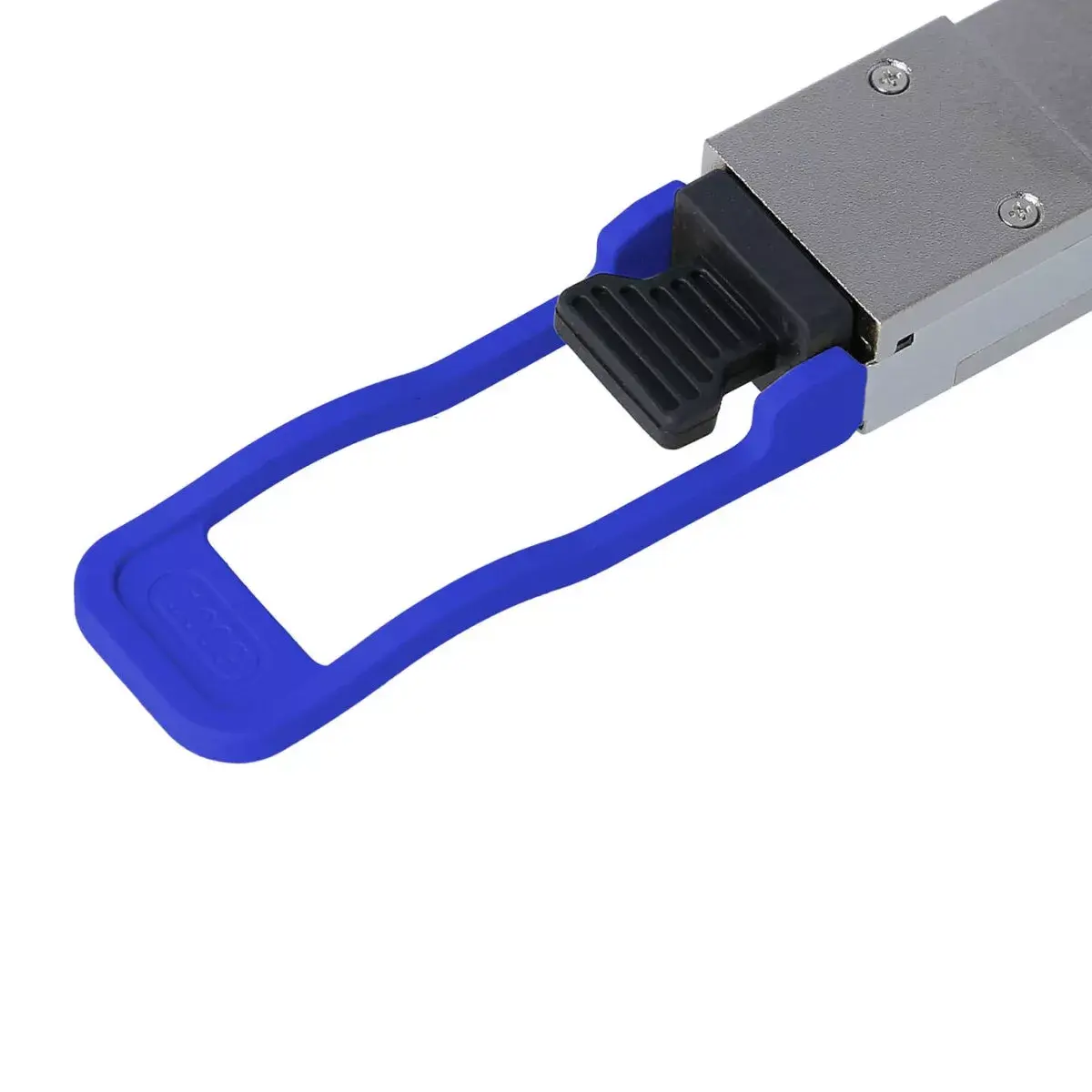

Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 4

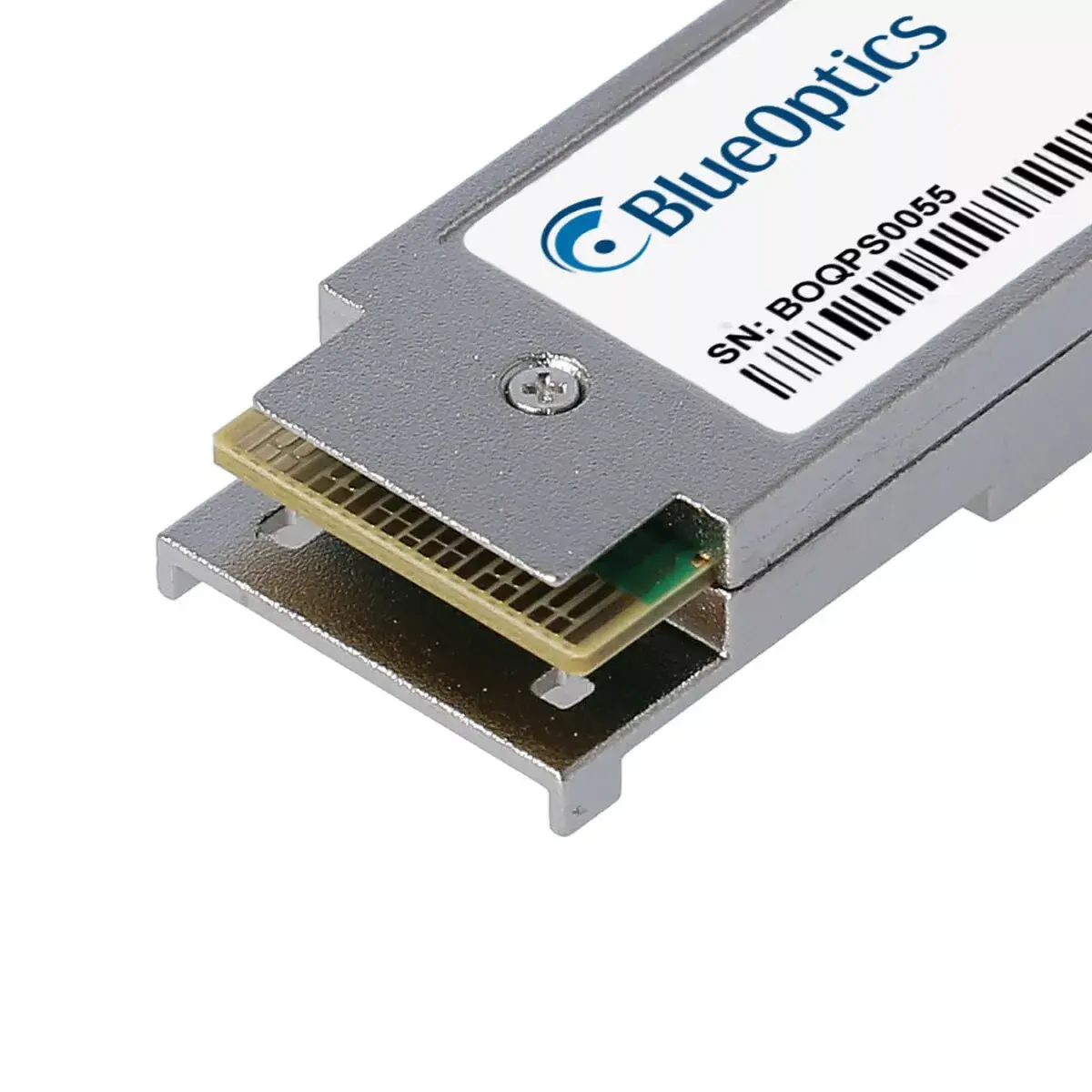

Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 5

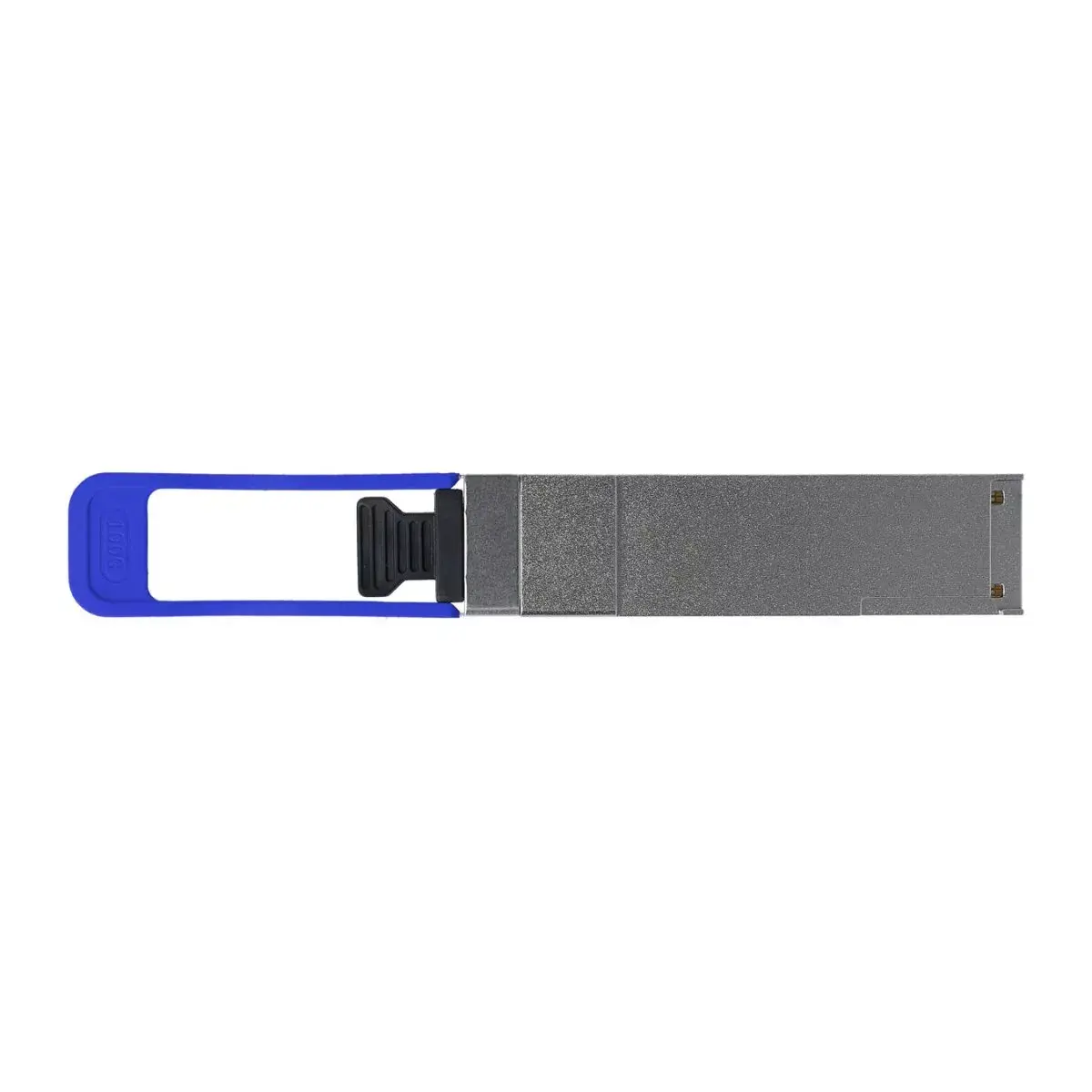

Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 6
Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 1
Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 2
Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 3
Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 4
Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 5
Fiber optic transceiver BlueOptics BO28L13610DS-BO Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Fiber optic transceiver module BlueOptics BO28L13610DS-BO 100000 Mbit/s QSFP28

{{email}}
You keep track of price changes

Fiber optic transceiver module BlueOptics BO28L13610DS-BO 100000 Mbit/s QSFP28

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The BlueOptics BO28L13610DS-BO is a high-performance fiber optic transceiver module designed for data transfer rates up to 100000 Mbit/s. It features a QSFP28 interface, metal housing for durability, and a long mean time between failures (MTBF) of 1000000 hours. Weighing only 40 g, it is lightweight and efficient for network applications.
Available for order: 13 pcs.
Warranty: 2 Years
SKU: 10695904
Manufacturer: BlueOptics
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
03.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
06.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.04 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
06.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The BlueOptics BO28L13610DS-BO is a QSFP28 fiber optic transceiver module engineered for 100000 Mbit/s (100G) links over single-mode fiber. It uses a duplex LC connector and supports long-reach transmissions up to 10,000 meters. The module is housed in metal for mechanical stability, weighs 40 g and is designed to meet MSA QSFP28 interoperability standards. Built for high-availability environments, this transceiver provides digital diagnostics support and a long MTBF for reduced maintenance in data center and carrier networks.

Advantages

The transceiver delivers 100 Gigabit Ethernet performance with a QSFP28 interface and LC duplex fiber connector, enabling simultaneous transmit and receive channels over one fiber pair. Compact metal housing ensures durability and EMI resilience for reliable operation. Integrated digital diagnostics (DDM/DOM) provide real-time monitoring of supply voltage, laser bias current, optical output and input power and temperature to simplify troubleshooting. A long mean time between failures (1,000,000 hours) helps maintain continuous operation and lowers replacement frequency.

Suitable for

  • 100 Gigabit Ethernet links in data centers and core networks
  • Long-reach single-mode fiber connections up to 10 km
  • Interoperable use in switches, routers, storage systems and optical transport equipment that support QSFP28
  • High-density aggregation and spine-leaf network topologies

Key specifications

  • Maximum data transfer rate: 100000 Mbit/s (100G)
  • Interface: QSFP28 (electrical and mechanical MSA compliant)
  • Fiber type: single-mode fiber
  • Connector: LC duplex
  • Wavelength (Tx/Rx): 1310 nm (typical for LR optics)
  • Maximum transmission distance: up to 10,000 m (10 km)
  • Housing: metal
  • Weight: 0.04 kg
  • Digital diagnostics: DDM/DOM support (real-time monitoring)
  • MTBF: approximately 1,000,000 hours

How to use

Install the QSFP28 transceiver into a compatible QSFP28 port on a switch, router or other networking device following the host hardware manufacturer’s insertion and removal procedure. Connect duplex LC single-mode patch cables to the module’s LC connector, observing correct transmit/receive orientation. Enable or verify support for 100GBASE-LR operation and DDM/DOM monitoring in the host device firmware or management interface as required. Perform link verification and basic troubleshooting using the host equipment’s status indicators and the module’s diagnostic readings.

Usage recommendations

Use high-quality single-mode LC patch cords and compliant patch panels to achieve the specified 10 km reach. Confirm interoperability with your hardware vendor and ensure DDM/DOM support is enabled to monitor optical parameters remotely. Avoid excessive bending or strain on fiber connectors and maintain clean connector endfaces to prevent signal loss.

Specifications

Maximum data transfer rate:
100000 Mbit/s
Maximum transfer distance:
10000 m
Weight:
0.04 kg
Ethernet interface type:
100 Gigabit Ethernet
Fiber optic connector:
LC
Product colour:
Blue, Silver
All features
Interface type:
QSFP28
Ethernet LAN:
Yes
Maximum operating temperature:
70 °C
SFP transceiver type:
Fiber optic
Single-mode fiber (SMF) supported:
Yes
SFP transceiver standard:
LR

Network

Ethernet interface type:
100 Gigabit Ethernet
Maximum data transfer rate:
100000 Mbit/s
Fiber ethernet cabling technology:
100GBASE

Ports & interfaces

Fiber optic connector:
LC

Performance

Maximum transfer distance:
10000 m
Mean time between failures (MTBF):
1000000 h
Rx wavelength (max):
1310 nm
Tx wavelength (max):
1310 nm

Weight & dimensions

Weight:
0.04 kg

Operational conditions

Operating temperature (T-T):
0 - 70

Packaging data

Package weight:
50 g

Features

Product colour:
Blue, Silver
Housing material:
Metal

Description
