header-product Network transceiver module BlueOptics G63LWSQ-BO QSFP fiber optic 40000 Mbit/s

Network transceiver module BlueOptics G63LWSQ-BO QSFP fiber optic 40000 Mbit/s

BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 1

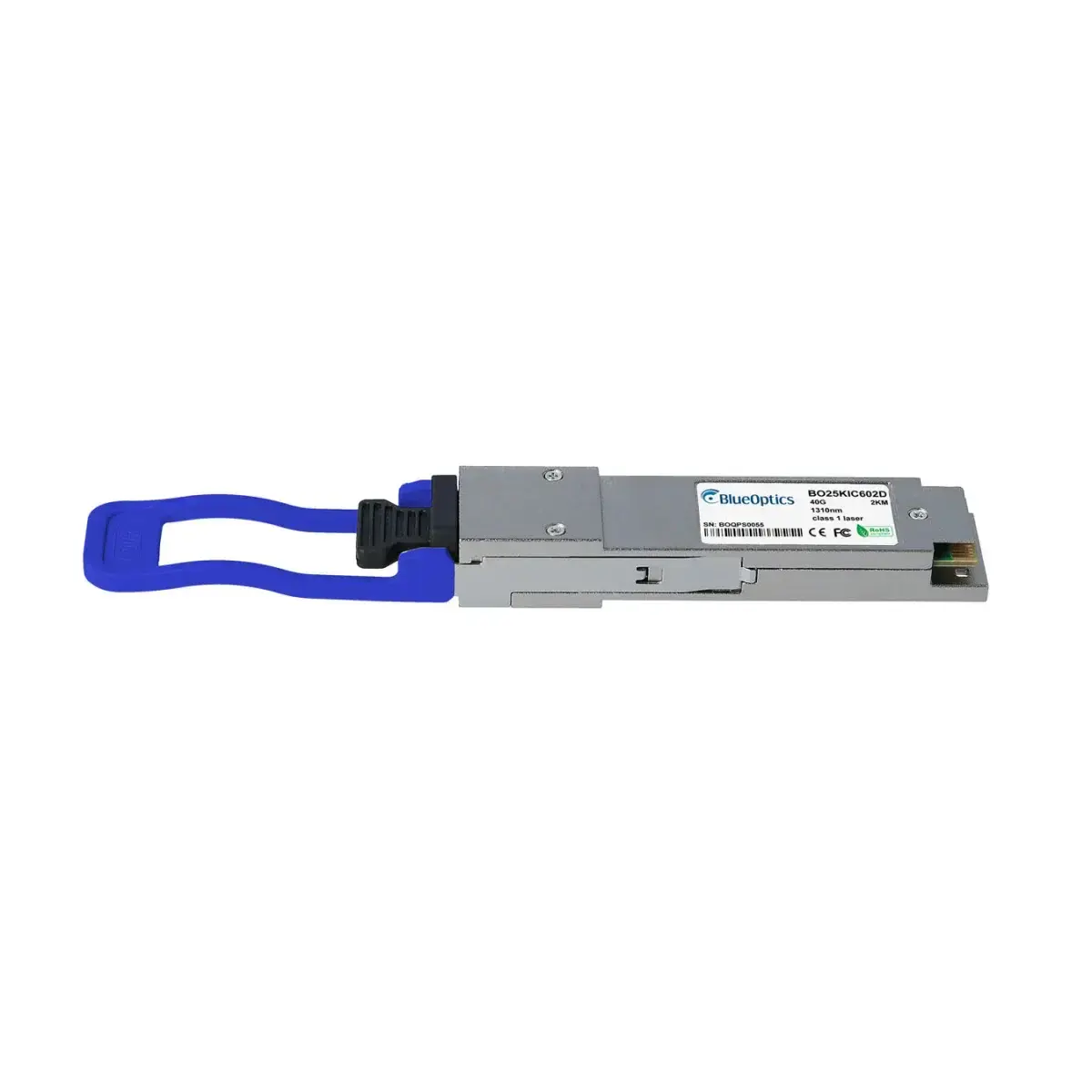

BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 2

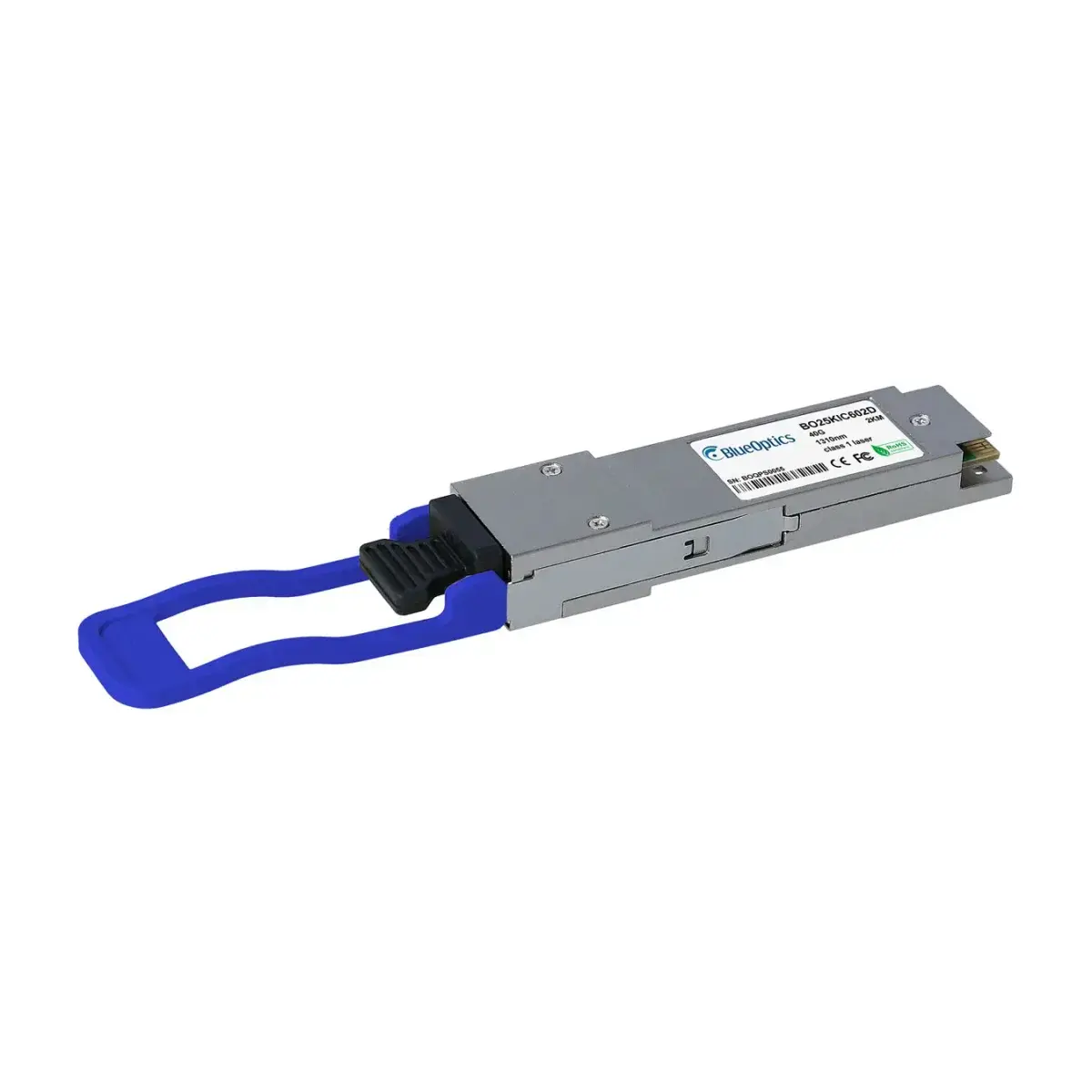

BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 3

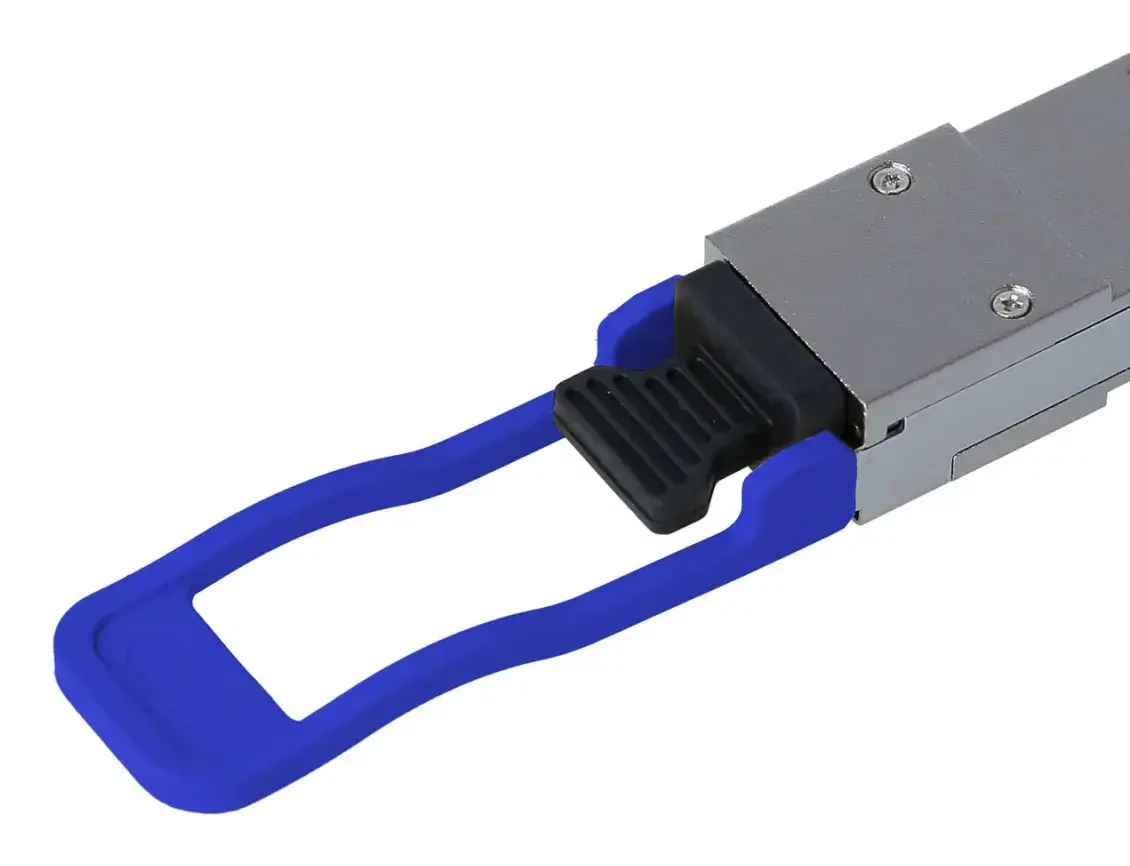

BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 4

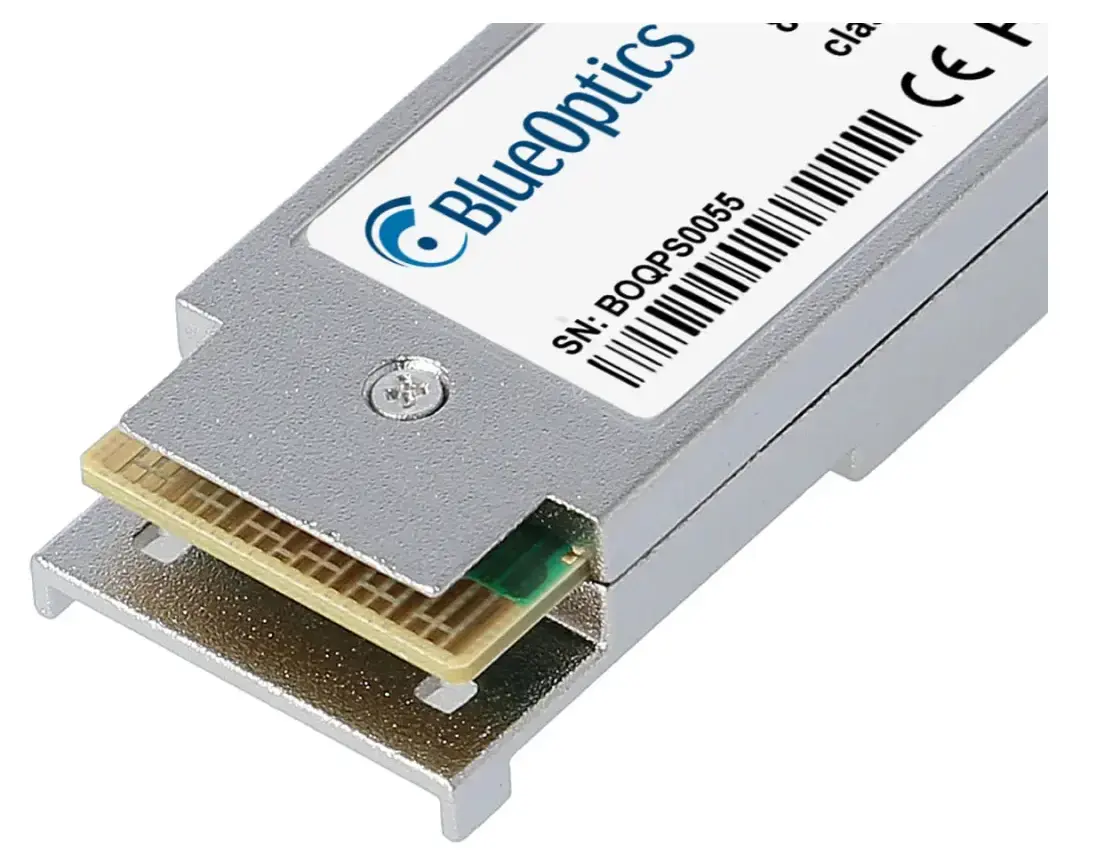

BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 5

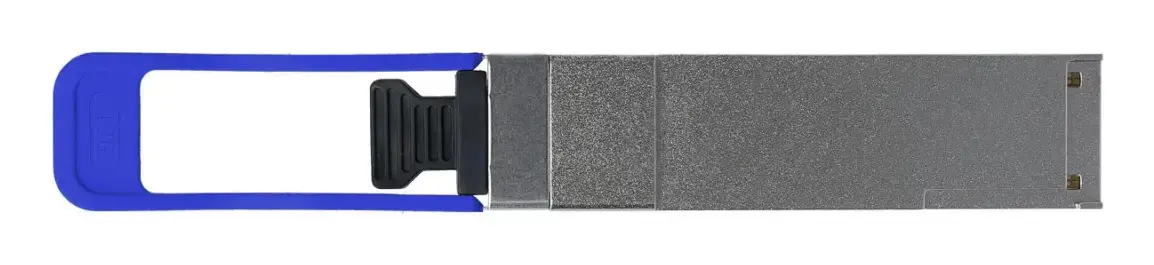

BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 6
BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 1
BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 2
BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 3
BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 4
BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 5
BlueOptics G63LWSQ-BO QSFP fiber transceiver 40Gbps Photo 6
Out of stock.
View similar!

Short description

BlueOptics G63LWSQ-BO is a QSFP form-factor fiber optic network transceiver supporting up to 40 Gbit/s data rate. Designed for high-speed links, it provides QSFP interface compatibility, RoHS/FCC/CE compliance and an MTBF of 3,000,000 hours. Suitable for data center uplinks, switches and aggregation ports requiring 40GbE connectivity.
Warranty: 2 Years
SKU: 11476623
Manufacturer: BlueOptics
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The BlueOptics G63LWSQ-BO is a QSFP form-factor fiber optic transceiver designed for 40 Gbit/s links. It provides an LC Duplex interface and supports 40GBASE-LX4 transmission over multimode fiber with CWDM-based transmit and receive functions. The module is intended for use in common networking hardware that accepts QSFP 40GbE optics, such as switches, routers, storage systems and aggregation ports.

Advantages

This QSFP transceiver supports a 40 Gbit/s data rate in a compact QSFP form factor and uses LC Duplex connections for easy integration into existing fiber patching; the module complies with common safety and electromagnetic standards and is suitable for high-availability environments thanks to a long mean time between failures.

Suitable for

  • Data centre uplinks and aggregation ports requiring 40GbE
  • Switch-to-switch and switch-to-router high-speed links
  • Storage network connections and SAN aggregation
  • Hardware platforms supporting QSFP 40G optics

When it may not be suitable

This transceiver is intended specifically for 40GBASE-LX4 multimode fiber links and requires network equipment with a compatible QSFP interface. It is not suitable for environments that require other physical interfaces (for example SFP/SFP+ sockets) or for single-mode fiber links that require a different optical specification.

Key specifications

  • Form factor: QSFP
  • Data rate: up to 40 Gbit/s
  • Optical interface: LC Duplex
  • Transmission standard: 40GBASE-LX4 (CWDM transmit and receive functions)
  • Typical use: multimode fiber links
  • Product colour: silver
  • Weight: 0.04 kg
  • MTBF: approximately 3,000,000 hours

How to use

Install the QSFP transceiver into a compatible QSFP port on the network device according to the device manufacturer's instructions, then connect LC Duplex fiber cables to the transceiver. Ensure the network equipment is configured for 40GbE operation and the correct transmission protocol. Verify link status and diagnostics through the host device to confirm proper operation.

What to consider before purchase

  • Ensure the host device supports QSFP 40GbE optics and the 40GBASE-LX4 standard.
  • Confirm compatibility with your multimode fiber cabling and the use of LC Duplex connectors.
  • Check that the device accepts third-party optics if required by the vendor.

Usage recommendations

Use with patched multimode LC Duplex fiber in short to medium reach data centre links; verify firmware or vendor compatibility if the host hardware enforces vendor-specific optics checks.

Specifications

Interface type:
QSFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
40000 Mbit/s
SFP transceiver type:
Fiber optic
All features

Logistics data

Warranty period:
5 year(s)

Packaging data

Package weight: Weight of the packaged product.
50 g

Packaging content

Manual:
Yes
Quantity per pack:
1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.04 kg

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 70
Maximum operating temperature:
70 °C
Minimum operating temperature:
0 °C

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, Federal Communications Commission (FCC), CE

Features

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
3000000 h
Form factor: The shape or design of the product.
QSFP
Product colour: The colour e.g. red, blue, green, black, white.
Silver

Performance

Fiber ethernet cabling technology:
40GBASE
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.
2000 m
Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Multi-mode fiber (MMF) supported:
Yes
Single-mode fiber (SMF) supported:
Yes
Interface type:
QSFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
40000 Mbit/s
SFP transceiver type:
Fiber optic

Description
