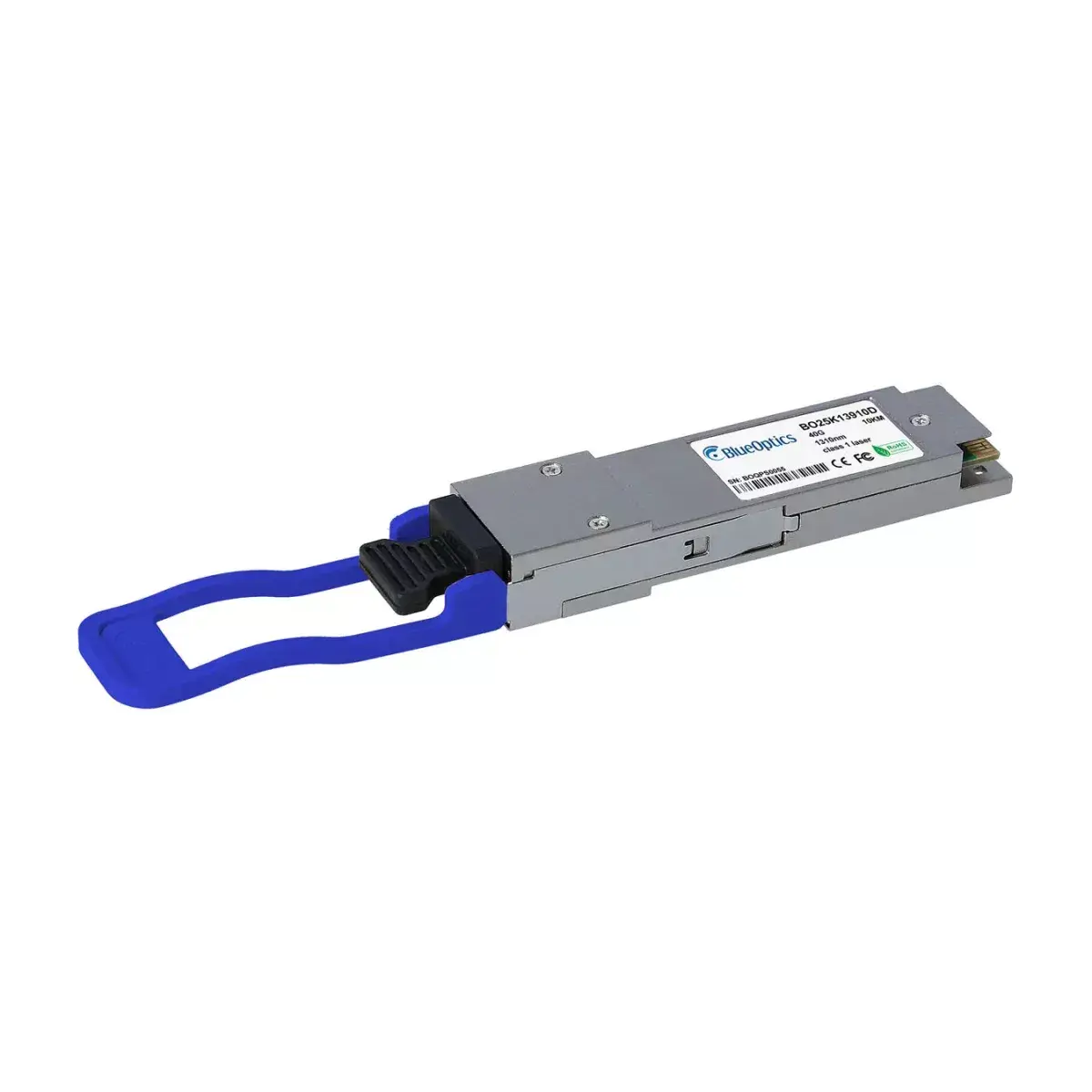

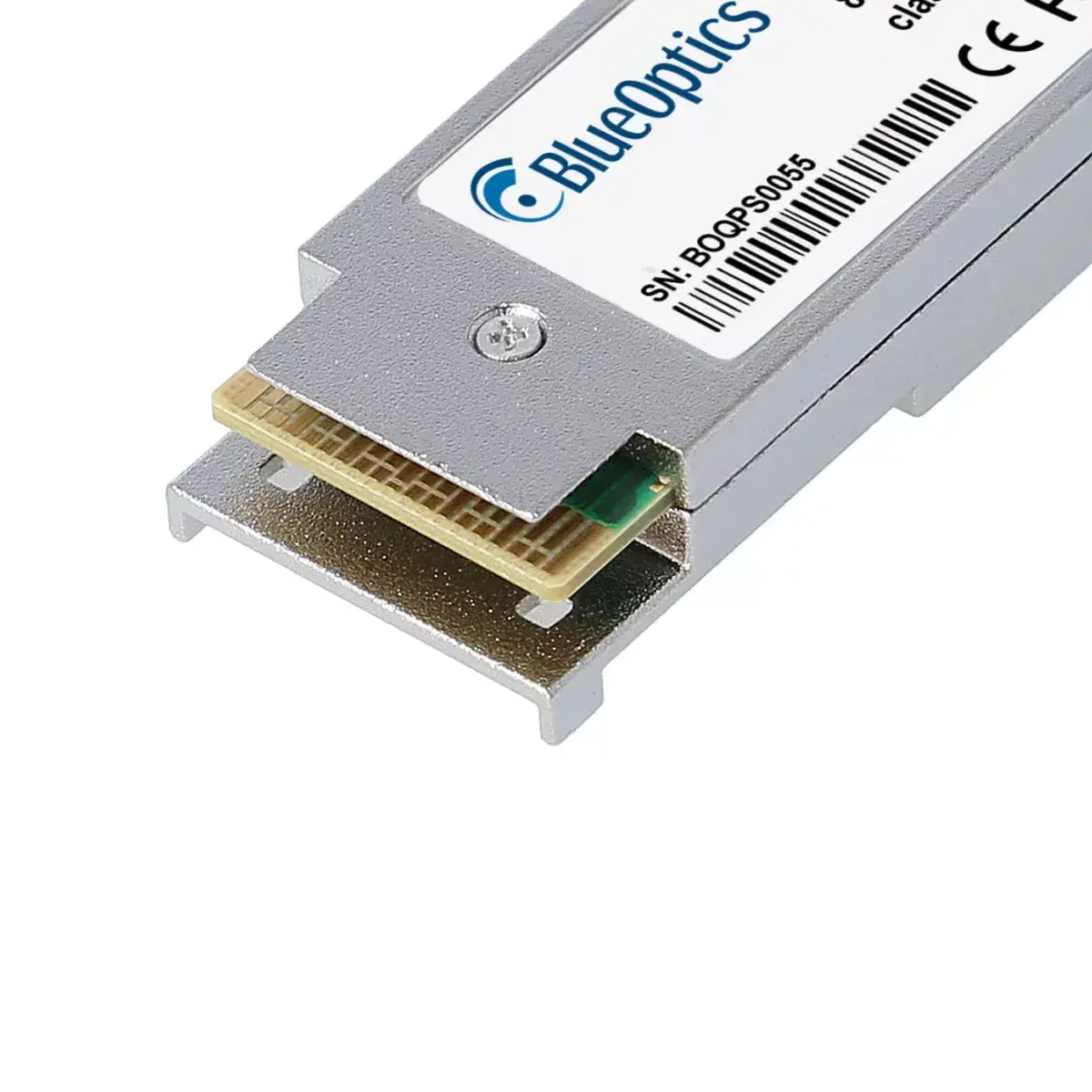

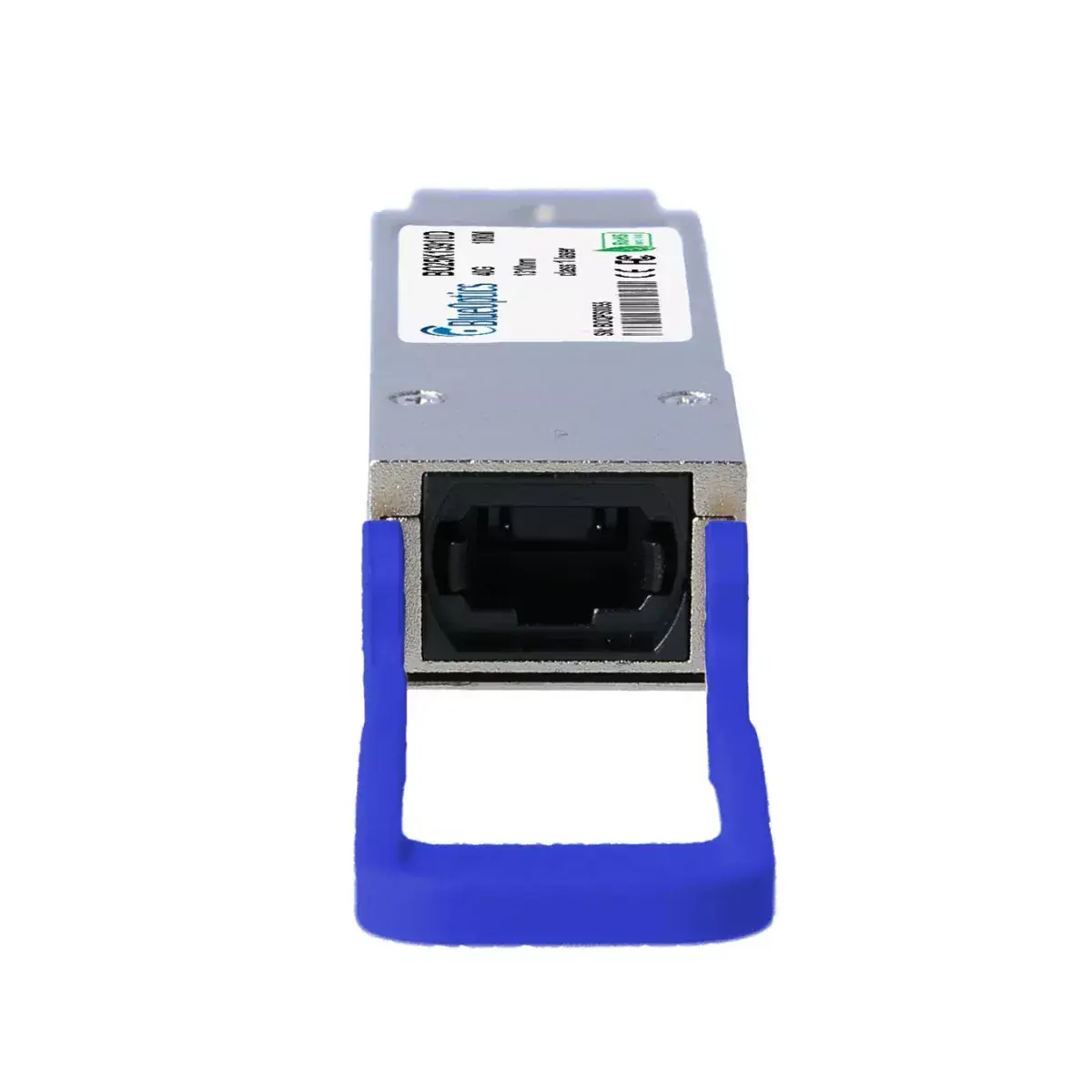

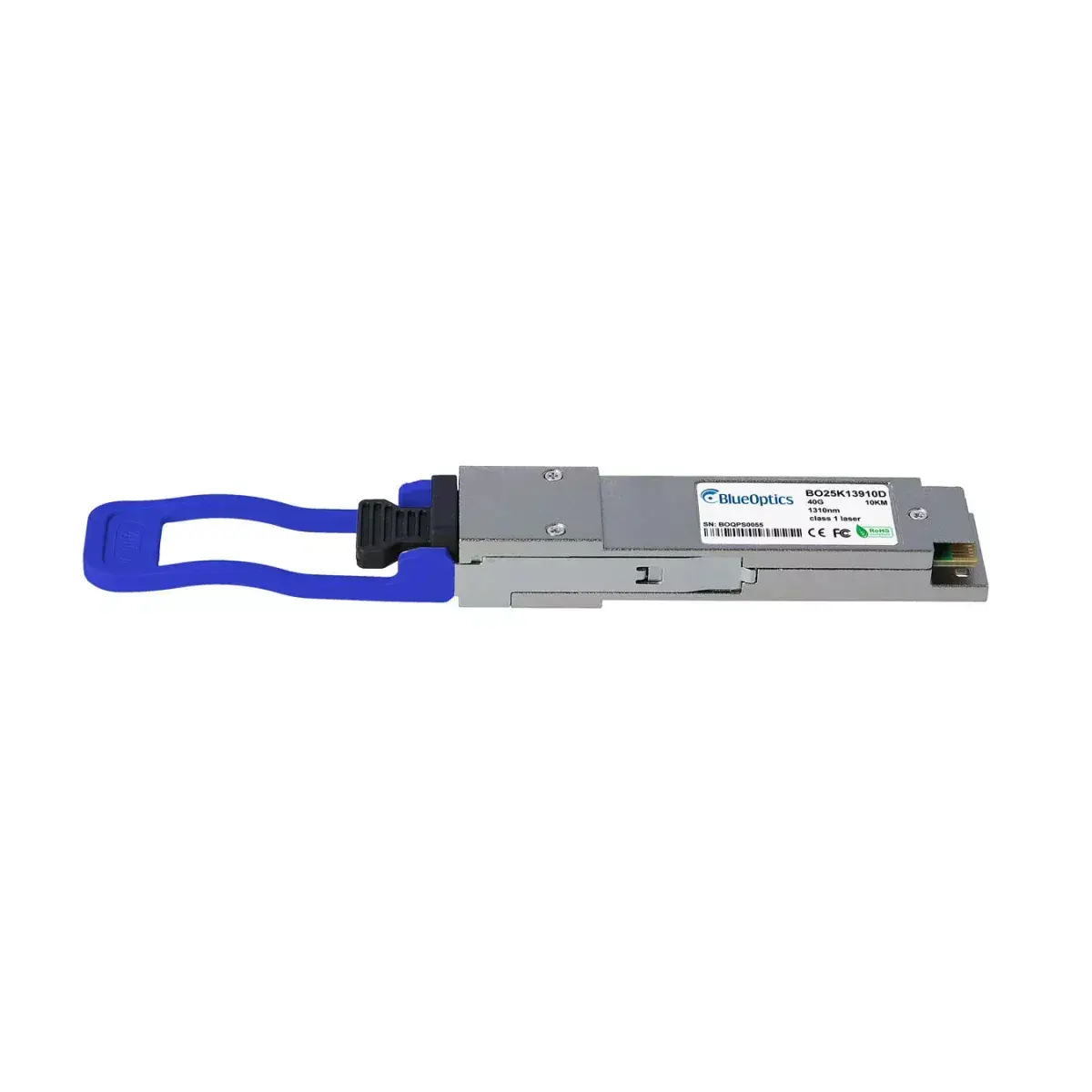

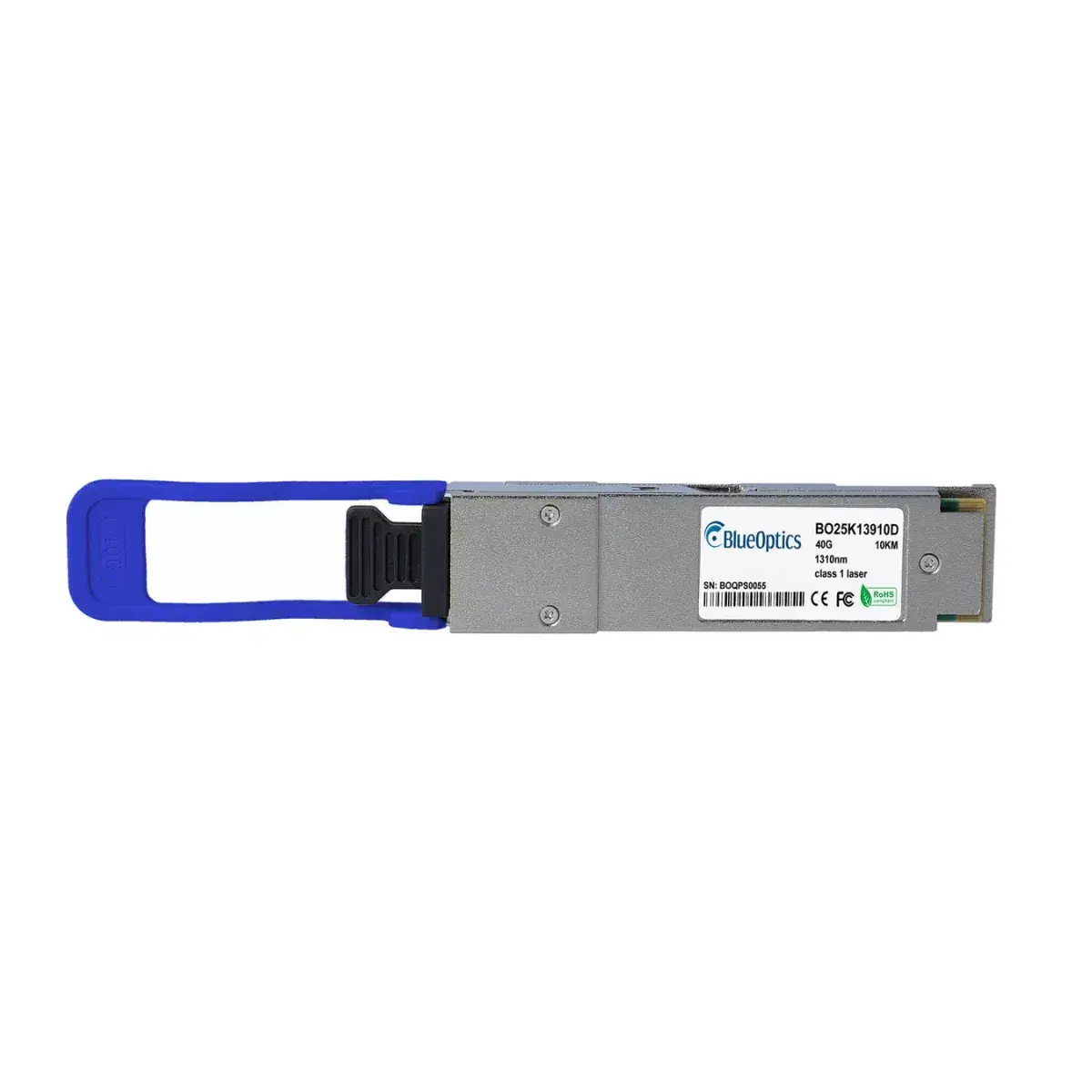

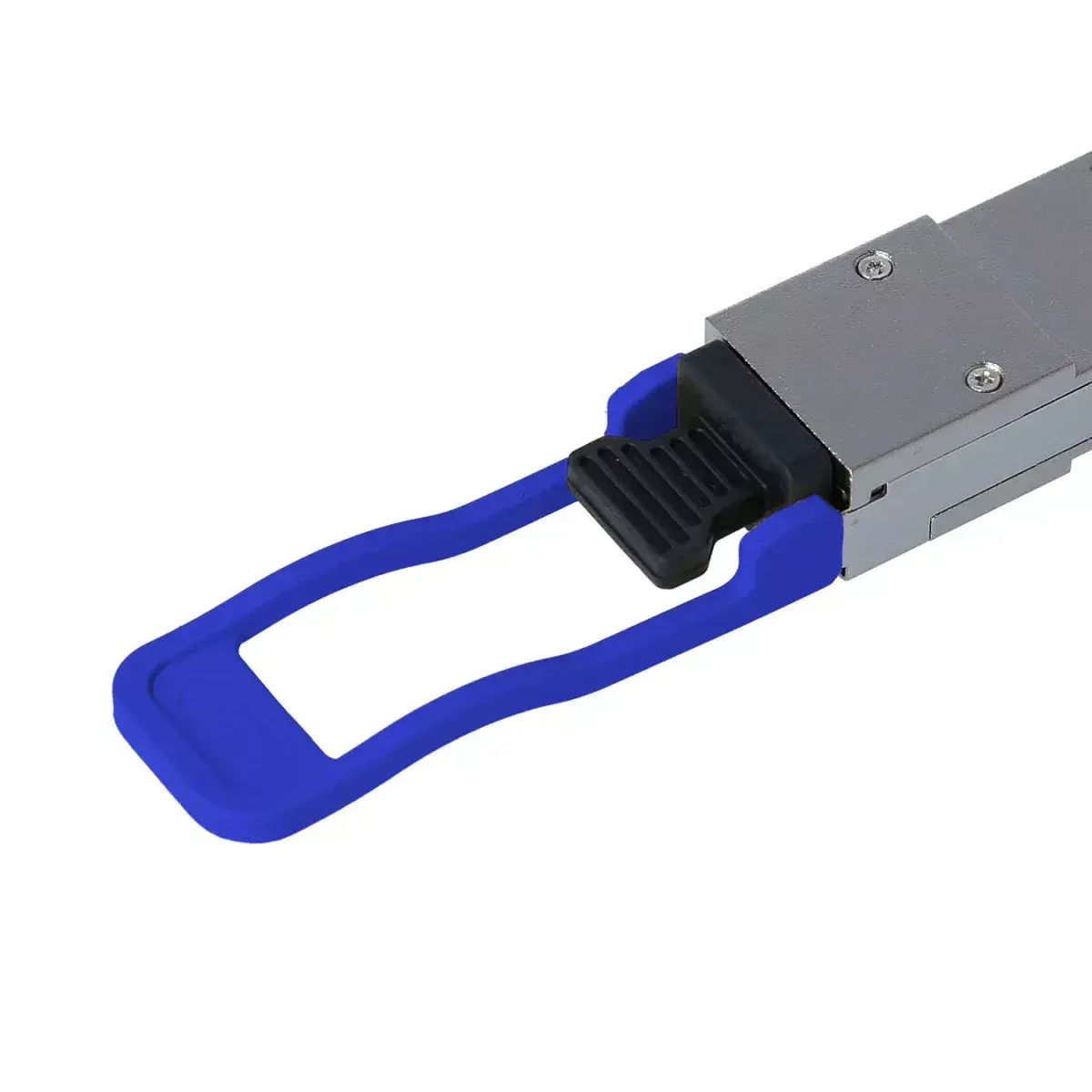

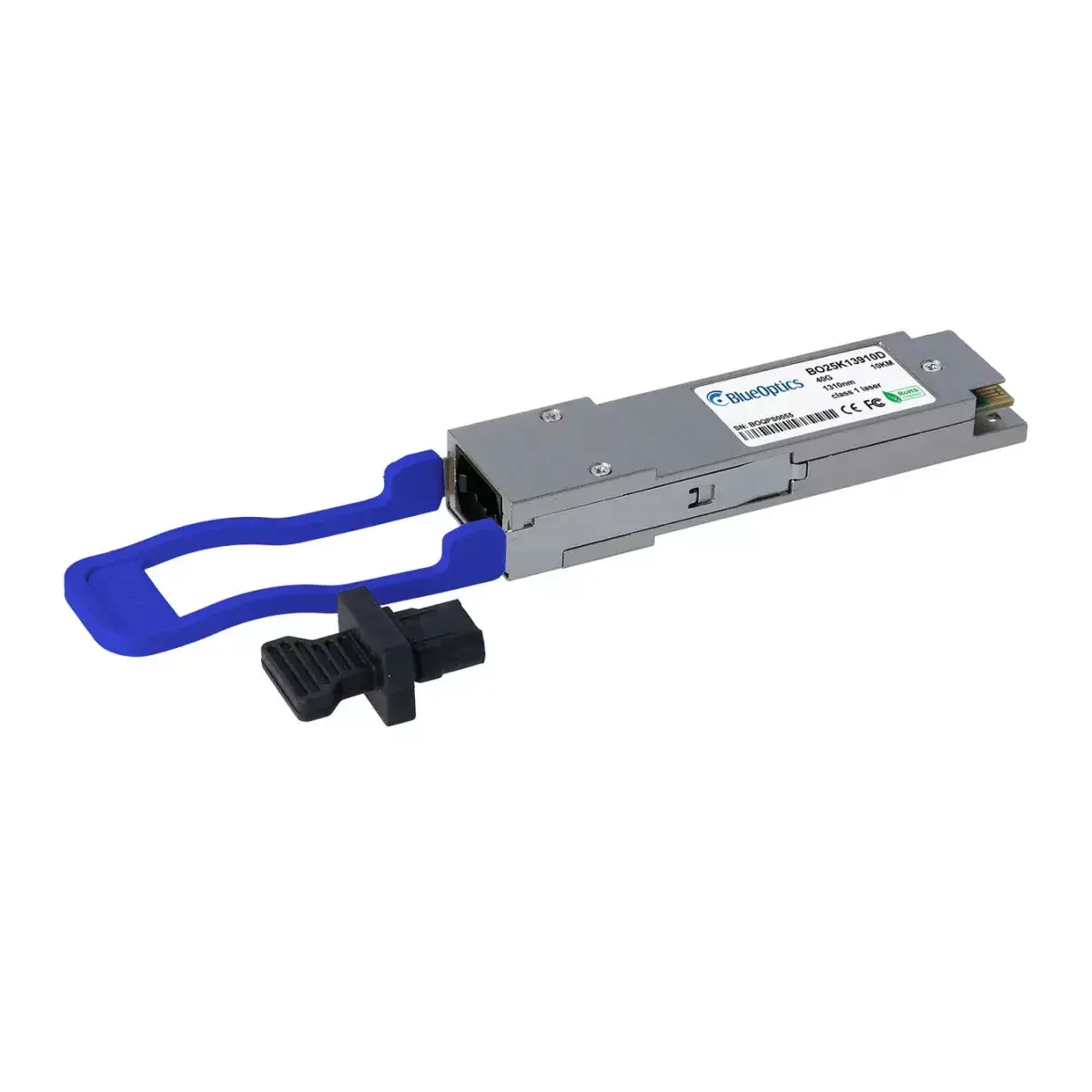

Fiber optic transceiver BlueOptics OPT-0045-BO 40000 Mbit/s OSFP

The BlueOptics OPT-0045-BO 40000 Mbit/s OSFP is a fiber optic transceiver module designed for high-speed optical networks. It provides a 40 Gbit/s data rate, an OSFP interface in a QSFP-compatible form factor, and a silver housing weighing approximately 0.04 kg. The module supports MPO/MTP connections for multimode fiber and implements separate 1310 nm transmit and receive channels for optical signal transmission. Compliance with CE, RoHS and FCC standards and a mean time between failures (MTBF) of 3,000,000 hours indicate a focus on reliability and regulatory conformity.

Advantages

The module delivers 40 Gbit/s bandwidth with MPO/MTP connectivity and separate 1310 nm transmitter and receiver, enabling simultaneous send and receive optical channels. Tested for compatibility with common hardware platforms, the transceiver includes components selected to meet MSA standards and supports digital diagnostics monitoring (DDM/DOM) for real-time status reporting of voltage, laser currents, optical power and temperature. Compact and lightweight, it is intended for integration in switches, routers, storage systems and other network devices that accept QSFP/OSFP-style transceivers.

Suitable for

• High-speed switch-to-switch links in data centers
• Aggregation and distribution layers in campus or enterprise networks
• Interconnects between storage systems and servers
• Network equipment upgrades where 40 Gbit/s MPO/MTP interfaces are required

Key specifications

• Maximum data transfer rate: 40000 Mbit/s (40 Gbit/s)
• Interface type: OSFP (QSFP-compatible form factor)
• Optical connection: MPO/MTP multimode fiber
• Wavelength: 1310 nm transmit and 1310 nm receive
• Housing colour: silver
• Weight: approximately 0.04 kg
• Digital diagnostics: DDM/DOM (MSA SFF-8472 compliant)
• Regulatory compliance: CE, RoHS, FCC
• Mean time between failures (MTBF): 3,000,000 hours

How to use

Install the transceiver into the compatible OSFP/QSFP slot of a network device according to the device manufacturer's instructions, ensuring the host hardware supports MPO/MTP connections and the DDM/DOM interface if diagnostic access is required. Connect an MPO/MTP multimode fiber patch cable to the transceiver's port, observing correct polarity and fiber type. After physical installation, verify link status and data rate through the host device management interface and confirm that the 40 Gbit/s link is established. Follow the host equipment procedures for firmware or compatibility settings when using third-party transceivers.

Usage recommendations

Use matched MPO/MTP multimode patch cables and, where applicable, compatible BlueOptics patch panels or transceivers at both ends of a link to ensure optimal range and signal quality. Confirm that the network equipment supports the 40GBASE-PLR4 profile and DDM/DOM functionality if remote diagnostics are required. Observe general fiber handling best practices: keep connectors clean, avoid tight bends, and secure cables to prevent mechanical stress.
