Patch Panel BTR NETCOM 130862-21C-E

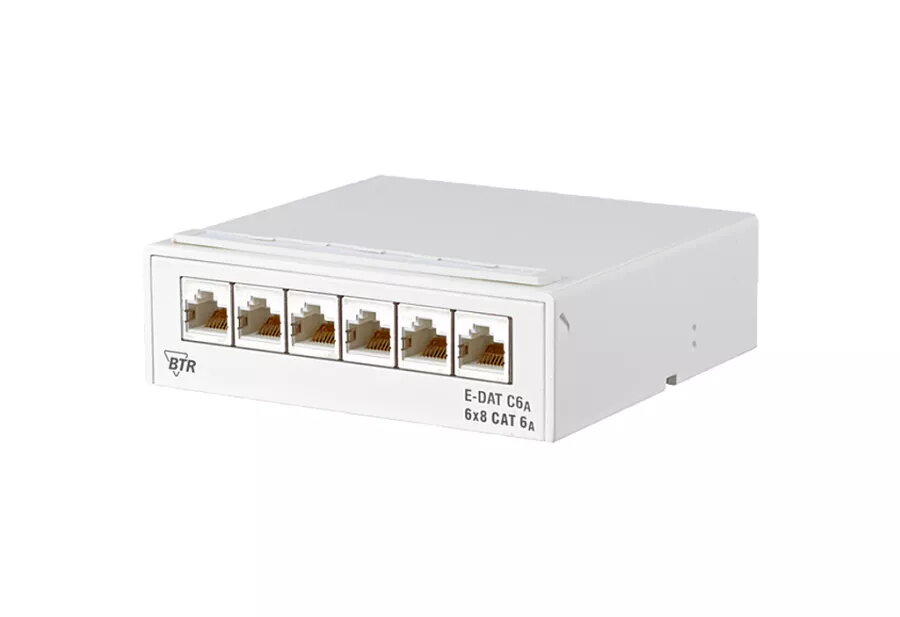

The BTR NETCOM 130862-21C-E is a surface-mounted 6-fold patch panel / wall outlet with RJ-45 connectors designed for structured cabling in buildings. It is certified for component performance up to Category 6A (class EA) and supports 10 GBase-T Ethernet. The unit is compatible with Power over Ethernet (PoE, PoE+ and UPoE) and provides a compact, white housing with a label window for identification.

Advantages

This patch panel is component-tested and certified according to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1 and TIA/EIA-568-C.2, and is GHMT certified. It complies with class EA up to 500 MHz and has been tested for components to 600 MHz and for links to 800 MHz, ensuring reliable high-speed data transmission. The LSA insulation-displacement connectors accept 2- to 4-pair data lines (AWG 26/1–22/1) without requiring untwisting of the wire pairs, and conductor colors follow T568A for consistent termination.

Suitable for

• Structured cabling in offices, server rooms and commercial buildings
• 10 Gigabit Ethernet (IEEE 802.3an) network installations
• Deployments requiring Power over Ethernet (PoE, PoE+, UPoE)
• Surface-mounted or wall outlet installations where a 6-port RJ-45 patch panel is needed

Key specifications

• Brand: BTR, Model: NETCOM 130862-21C-E, MPN: 130862-21C-E, EAN: 4250184118602
• Ports: 6-fold, RJ-45
• Mounting: surface-mounted / wall outlet
• Standards / Certification: ISO/IEC 11801 Ed.2.2, DIN EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51; GHMT certified
• Performance: Class EA up to 500 MHz; components tested to 600 MHz; links tested to 800 MHz
• Ethernet: supports 10 GBit Ethernet (IEEE 802.3an)
• PoE: compatible with PoE, PoE+ and UPoE
• Termination: LSA insulation-displacement connectors for 2–4 pair (AWG 26/1–22/1), T568A color coding
• Additional: label window for identification, optional strain relief using cable ties

How to use

Mount the patch panel at the desired surface or wall location and route the structured cabling to the LSA termination area. Insert 2- to 4-pair copper data cables into the LSA insulation-displacement connectors following T568A conductor color coding; pairs do not need to be untwisted before termination. Secure the cables and use the label window to apply identification labels. Optionally apply cable ties for strain relief at the indicated points.

Usage recommendations

For optimal performance, install and terminate the panel following the applicable cabling standards (ISO/IEC 11801, TIA/EIA) and use compatible Category 6A or higher cabling. Keep pair untwist length to a minimum at termination points and verify connections with appropriate test equipment certified for Cat.6A.
