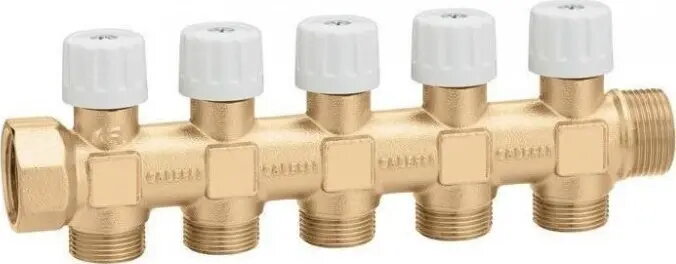

CALEFFI Rozdzielacz z zaworami odcinającymi 3/4" x 5 23 p.1,5 GZ (MPN 354055)

CALEFFI Rozdzielacz z zaworami odcinającymi 3/4" x 5 23 p.1,5 GZ is a plumbing manifold designed to distribute fluid from a single supply to five separate circuits. The unit integrates shut-off valves for each branch, enabling isolation of individual lines for maintenance or system balancing. With 3/4" main connections and five outlet ports, the manifold is intended for use in heating systems and domestic hot/cold water distribution where compact, organized distribution and control are required.

Advantages

The manifold provides individual shut-off for each circuit, simplifying repairs and replacements without interrupting the entire system. Its compact construction reduces installation space and facilitates neat pipe routing. The standardized 3/4" connections enable compatibility with common fittings and piping materials. Built for practical installation in residential and light commercial systems, the manifold supports reliable flow division and straightforward system servicing.

Suitable for

• Distribution of heating medium to multiple radiator or underfloor heating circuits
• Domestic hot and cold water manifold systems in residential buildings
• Systems requiring individual circuit isolation for maintenance or leakage response
• Renovation projects where existing piping must be organized into a compact distribution point

Key specifications

• Number of outlets: 5
• Main connection size: 3/4"
• Integrated shut-off valves for each branch
• Designed for fluid distribution in heating and domestic water systems
• Compact manifold body suitable for wall or cabinet mounting

How to use

Install the manifold in a location that allows access for operation and maintenance. Connect the supply line to the 3/4" main inlet and attach each circuit to the corresponding outlet port. Use the integrated shut-off valves to close or open individual circuits as needed during commissioning, balancing or repairs. Verify sealing of all connections and gradually pressurize the system while checking for leaks. Follow local plumbing and heating regulations during installation and commissioning.

Usage recommendations

Use compatible fittings and follow the system manufacturer’s guidance for flow balancing. For safe operation, ensure the manifold is installed by a qualified technician and protected from freezing in unheated spaces. Regularly inspect valve operation and connection tightness as part of routine system maintenance.
