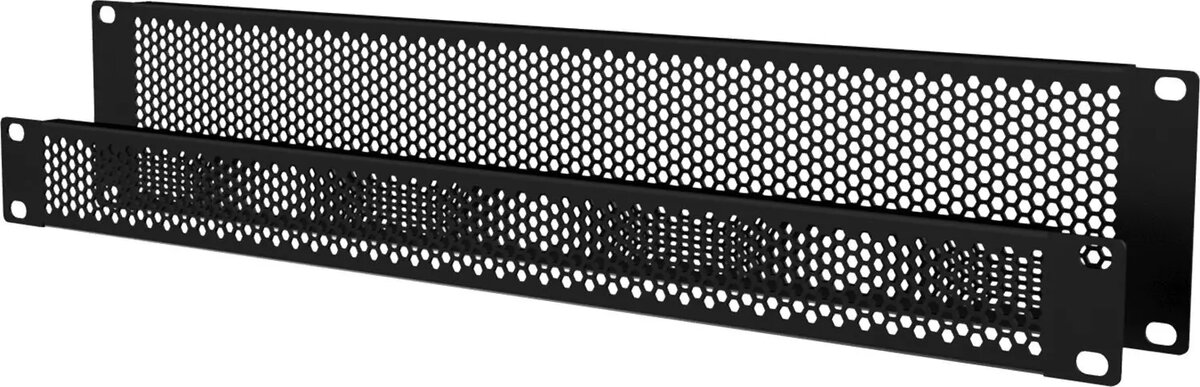

Rack vented blanking panel 19” CAYMON BSV02H – ventilation slots, 1U

19" rack vented blanking panel CAYMON BSV02H is a 1U front panel that fills unused rack space while enabling passive airflow through a pattern of ventilation slots. The panel is intended for mounting in standard 19" cabinets and server racks to close gaps, maintain a tidy appearance and support front-to-back airflow management. It helps reduce dust ingress to the interior of the enclosure and contributes to more efficient cooling by directing air through occupied rack zones.

Advantages

The vented blanking panel provides a simple, low-cost way to manage unused rack units without blocking airflow. Ventilation slots allow continuous air movement to reduce hotspots and support uniform temperature distribution inside the cabinet. The 1U format fits standard rack rails and keeps the rack front organized, improving access and cable routing. The panel is lightweight, easy to install and requires no additional tools for standard cage nut or threaded-rail mounting.

Suitable for

• Server racks and network cabinets in office and data centre environments
• Enclosures requiring passive ventilation and improved airflow management
• Racks where unused U spaces need to be covered to prevent dust and maintain appearance
• Equipment cabinets with front-to-back cooling layouts

Key specifications

• Form factor: 1U front panel for 19" racks
• Design: vented panel with multiple ventilation slots for passive airflow
• Material: metal construction for durability and heat dissipation
• Finish: protective coating to resist corrosion and wear
• Mounting: compatible with standard 19" rack rails (cage nut or threaded rail systems)

How to use

Mount the vented blanking panel in any unused 1U position on the front rail of a standard 19" cabinet. Align the panel holes with the rack rail mounting points and secure it using appropriate screws or cage nuts for your rack type. Ensure the ventilation slots remain unobstructed by cables or accessories. Use multiple panels to cover larger empty areas and to guide airflow through populated sections of the rack.

Usage recommendations

Install blanking panels in a consistent pattern with equipment layout to direct airflow from intake to exhaust zones. Regularly inspect panels for dust accumulation and clean with a dry cloth or mild detergent if necessary; avoid abrasive cleaners. When arranging equipment, combine vented and solid blanking panels as needed to balance airflow and provide dust protection.
