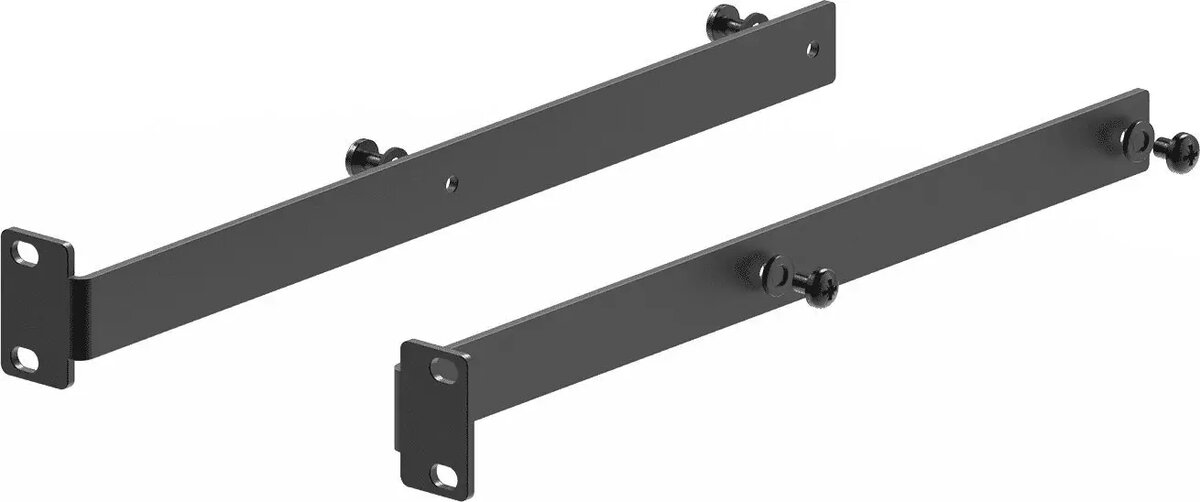

Rear bracket for RDx20 series rack drawers CAYMON RD2S/B, set of 2

CAYMON RD2S/B is a set of two rear brackets designed to secure and support rack drawers from the RDx20 series inside 19" server, telecom, or AV cabinets. These brackets provide rear fixation for compatible drawer units, helping to maintain alignment and load distribution when drawers are extended or loaded. The components are intended to pair with front mounting points of RDx20 series drawers for a complete and stable installation in standard rack enclosures.

Advantages

The pair of rear brackets offers reinforced rear support that reduces lateral movement and sagging of rack drawers. Their form factor is compatible with industry-standard 19" rack spacing and complements front mounting hardware on RDx20 series units. By securing the drawer at the rear, these brackets contribute to safer operation, better weight distribution and longer hardware life under regular use in IT, telecom and AV environments.

Suitable for

• Mounting RDx20 series rack drawers in 19" equipment cabinets
• IT server rooms and data centres requiring secure drawer fixation
• Telecom racks and network equipment cabinets with sliding drawer modules
• Audio-visual installations that use rack-mounted storage or drawer units

Key specifications

• Set contains two rear support brackets
• Designed for compatibility with RDx20 series rack drawers
• Fits standard 19" rack enclosure spacing
• Purpose: rear fixation and support for sliding drawers
• Material: metal construction for structural support

How to use

Install the rear brackets after the drawer has been mounted at the front of the rack according to the drawer manufacturer’s instructions. Position each bracket at the rear attachment points of the drawer, align with the rack’s vertical rails and secure using appropriate rack fasteners. Ensure the brackets are tightened evenly on both sides so the drawer slides freely and remains level under load. Verify movement and clearance by fully extending and retracting the drawer once installation is complete.

Usage recommendations

Use the rear brackets in combination with the front mounting hardware of RDx20 series drawers and check that fasteners are appropriate for the rack rail thickness. For heavy loads, inspect mounting points periodically for signs of wear or loosening and retighten fasteners as needed to maintain stable fixation.
