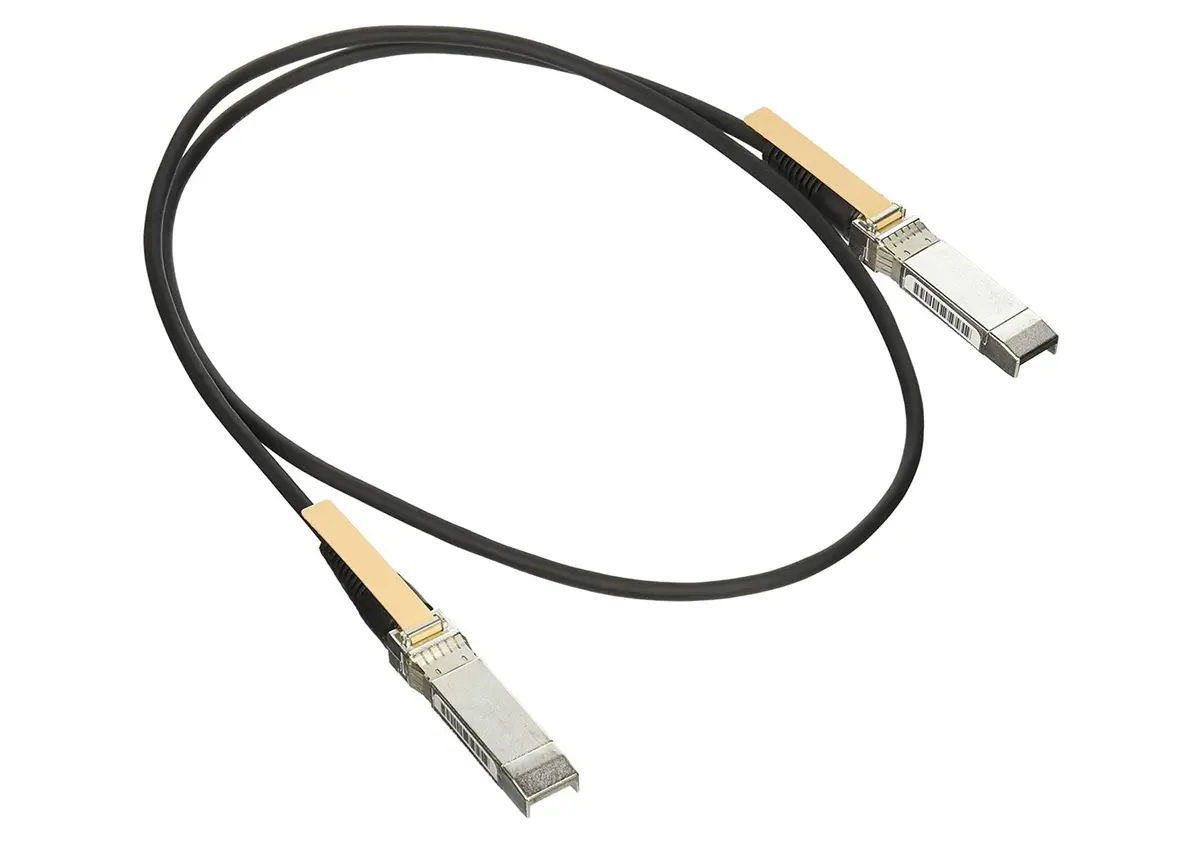

The Cisco 10G Direct Attach Twinax SFP+ Passive Cable Assembly 1 M 30AWG SFP-H10GB-CU1M= is compared with several alternative direct attach copper (DAC) cable assemblies, including the SFP+ Direct Attach Cable StarTech SFP-H10GB-CU1-5M 1.5m, Cisco SFP-H10GB-CU3M-C Direct Attach Copper Twinax Cable 3 m, SFP+ DAC Cable CBO MCP2103-X01AB Passive 30 m, LevelOne SFP+ Direct Attach Copper Cable 10Gbps Twinax 3m, and LevelOne 10Gbps SFP+ Direct Attach Copper Twinax Cable 1m. All of these products are passive Twinax copper cable assemblies with SFP+ connectors on both ends, engineered for high-speed 10 Gbps short-range network connections between switches, routers, servers, and storage systems in enterprise data centers and server rooms. The primary differences among the options lie in their cable length, brand ecosystem, and support for additional protocols such as InfiniBand.
⚙️ The specifications comparison table below compares parameters such as brand, cable length, connector type, supported data rates, supported protocols, and practical characteristics.
| Parameter | Cisco 10G Direct Attach Twinax SFP+ Passive Cable Assembly 1 M 30AWG SFP-H10GB-CU1M= | SFP+ Direct Attach Cable StarTech SFP-H10GB-CU1-5M 1.5m | Cisco SFP-H10GB-CU3M-C Direct Attach Copper Twinax Cable with 3 m Length | SFP+ DAC Cable CBO MCP2103-X01AB Passive, 30 m | LevelOne SFP+ Direct Attach Copper Cable 10Gbps Twinax 3m | LevelOne 10Gbps SFP+ Direct Attach Copper Twinax Cable, 1m | Practical Significance |
|---|
| Brand | Cisco | StarTech | Cisco | BlueOptics | No name | OEM | Defines ecosystem alignment and hardware compatibility with specific vendor equipment. |
| Cable length | 1 m | 1.5 m | 3 m | 30 m | 3 m | 1 m | Different lengths allow for optimal routing within a rack (Top-of-Rack) or between adjacent racks without excess cable slack. |
| Cable type | Passive Twinax (30AWG) | Passive Twinax | Passive copper Twinax (10GBASE-CR) | Passive Twinax (Direct Attach Copper) | Passive Twinax | Passive Twinax (Direct Attach Copper) | All options utilize passive copper technology for low power consumption and minimal latency. |
| Interfaces | SFP+ to SFP+ | SFP+ to SFP+ | SFP+ to SFP+ | SFP+ to SFP+ | SFP+ to SFP+ | SFP+ to SFP+ | Provides standard direct connection for networking hardware with matching port types. |
| Speed and protocols | 10 Gbps, InfiniBand support | 10 Gbps (10GbE) | 10 Gbps, InfiniBand | 10 Gbps | 10 Gbps | 10 Gbps | Delivers high data rates for critical infrastructures, with the Cisco solution explicitly noting InfiniBand support. |
◎ The suitability table below evaluates which product is best suited for specific use cases, distance requirements, and network environments.
| Use case | Recommended product | Why |
|---|
| Direct connection between Cisco switches and servers at an exact 1-meter distance | Cisco 10G Direct Attach Twinax SFP+ Passive Cable Assembly 1 M 30AWG SFP-H10GB-CU1M= | Ideally suited for intra-rack connections within a Cisco ecosystem with required protocol support. |
| Connecting equipment within a rack over a 1.5-meter distance | SFP+ Direct Attach Cable StarTech SFP-H10GB-CU1-5M 1.5m | Provides slightly more reach than a 1-meter option while maintaining low power operation. |
| Connecting network devices up to 3 meters apart in a Cisco environment | Cisco SFP-H10GB-CU3M-C Direct Attach Copper Twinax Cable with 3 m Length | Allows devices to be linked over a longer distance within or between adjacent racks. |
| Establishing short-range links at 3 meters in standard enterprise environments | LevelOne SFP+ Direct Attach Copper Cable 10Gbps Twinax 3m | Suitable for standard enterprise setups requiring device interconnection up to a 3-meter distance. |
| Short-range connection at 1 meter with third-party compatible hardware | LevelOne 10Gbps SFP+ Direct Attach Copper Twinax Cable, 1m | A practical and efficient solution for basic short-distance data transmission tasks. |
The Cisco 10G Direct Attach Twinax SFP+ Passive Cable Assembly 1 M 30AWG SFP-H10GB-CU1M= differs from alternative products through its precise 1-meter length, 30AWG wire gauge, and official InfiniBand protocol support within the Cisco ecosystem. This product is most suitable for data center engineers and network administrators who require a reliable, low-latency intra-rack connection between branded switches, routers, and servers over short distances. A buyer may prefer this option over alternatives when brand-specific compatibility and an exact 1-meter cable length without unnecessary slack are critical for their setup.
