Short description

PV combiner box CNC NV822324 is a DC junction enclosure with 6 inputs and 6 outputs designed for photovoltaic systems. Rated IP66 for dust-tight and strong water protection, it consolidates multiple string connections, simplifies wiring and provides a centralized point for fuses or surge protection. Suitable for rooftop and ground-mounted solar arrays to improve installation safety and maintenance.

Available for order: 5 pcs.

Warranty: 2 Years

SKU: 10842635

Manufacturer: CNC

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 121.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 10.10 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

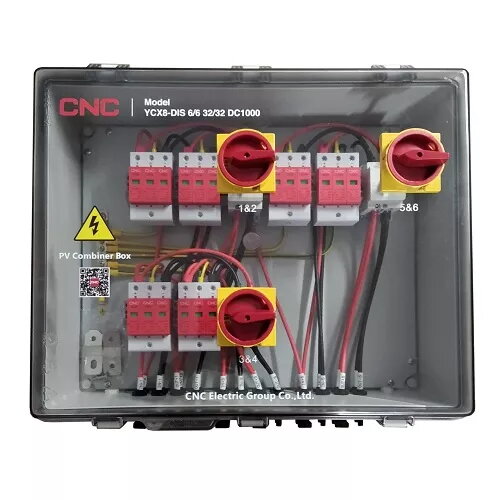

PV Combiner Box CNC NV822324 is a DC junction enclosure for photovoltaic systems with 6 inputs and 6 outputs, designed to centralize and protect string connections. Rated IP66 and made of flame-retardant polycarbonate (V0 UL94), the box simplifies wiring for rooftop and ground-mounted arrays and provides space for DC switching and surge protection devices at up to 1000 V DC.

Advantages

The combiner box supports six string inputs and six outputs with MC4 connectors, offering a compact solution for consolidating PV strings. It features lockable DC switches with a patented arc extinguishing chamber, integrated DC surge protection devices (SPD) with response time under 25 ns, and an IP66 waterproof, UV-resistant enclosure for outdoor use. The polycarbonate housing meets IEC60529 and provides V0 flame-retardant performance.

Suitable for

Rooftop solar PV installations
Ground-mounted photovoltaic arrays
Medium-size commercial and residential string systems
Installations requiring centralized DC switching and surge protection

Key specifications

Inputs / outputs: 6 in - 6 out
Maximum voltage: 1000 V DC
DC switch: 1000 V, 25 A (3 pcs), lockable handle, patented arc extinguishing chamber (standards UL508i, IEC60947-3 Pv2)
SPD: 1000 V, 40 kA (6 pcs), In 20 kA, Imax 40 kA, Up 3.6 kV, response time <25 ns (standards IEC 61643-31, EN 50539-11 + A1)
Short-circuit current per input (Isc): 15 A–30 A (changeable)
Maximum output current: 25 A
Material and protection: Polycarbonate enclosure, IP66, V0 UL94, UV resistant
Dimensions: 528 x 458 x 358 mm
Cable glands input: PG09 (2.5–16 mm); output: PG21 (2.5–16 mm)
Operating temperature: -25 °C to +60 °C

How to use

Mount the CNC NV822324 combiner box on a suitable surface following local electrical codes and the manufacturer’s mounting instructions. Connect up to six PV strings to the input MC4 connectors and route the combined outputs through the output glands. Ensure DC switches are in the correct position and that surge protection devices are installed and connected per system requirements. Verify all cable sizes and tightening torques comply with the specified current ratings and local regulations before energizing the system.

Usage recommendations

Use qualified personnel for installation and maintenance. Regularly inspect seals, cable glands, SPD condition and switch operation. Replace SPDs after they reach their nominal discharge capacity or show signs of damage. Do not exceed rated voltages and currents and follow applicable standards (IEC60529, IEC60947-3, IEC61643-31, EN50539-11).
