Cudy FS1006P Fast Ethernet 6-port PoE switch

Name: Network switch Cudy FS1006P Fast FS1006P
Brand: Cudy
SKU: 10483349
Price: 20.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Network switch Cudy FS1006P Fast Ethernet 6-port (4 PoE, 1 PoE+) 10/100 Mbps, 1.2 Gbit/s bandwidth, metal housing, rack/wall mount

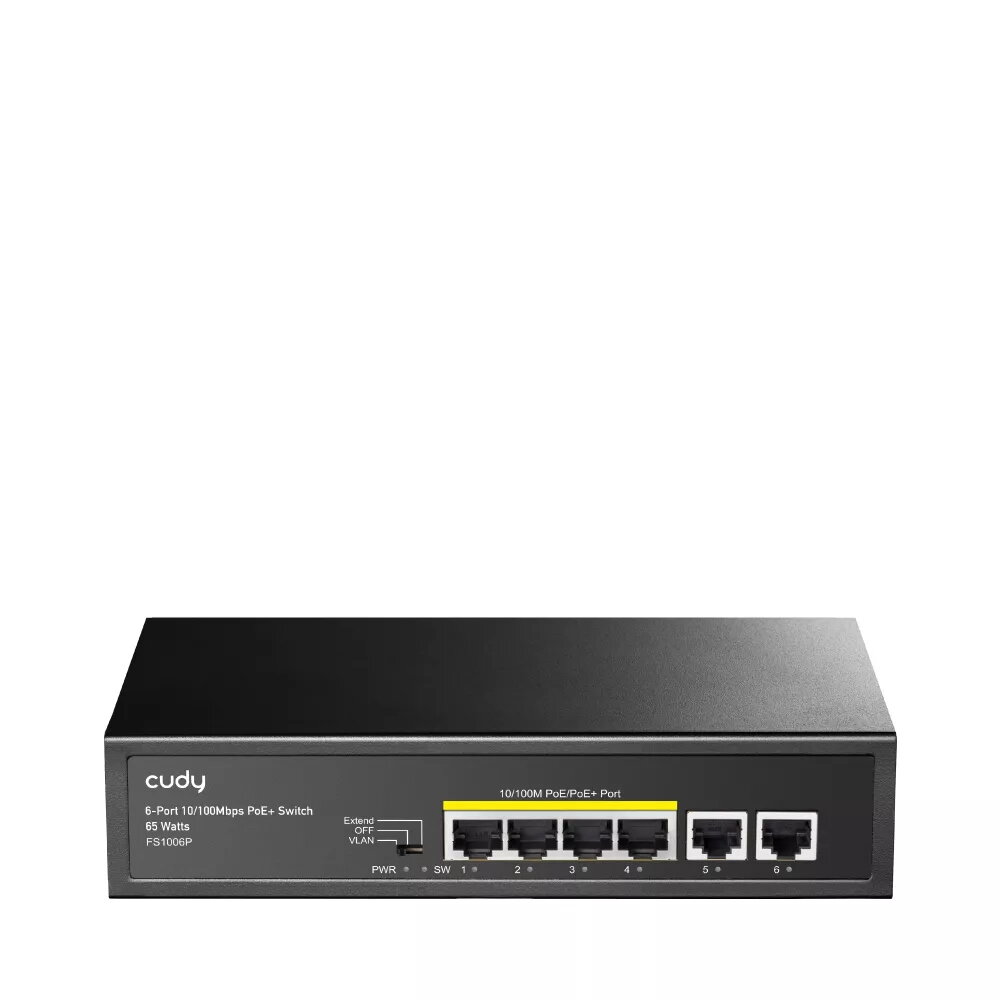

Cudy FS1006P Fast Ethernet 6-port PoE switch Photo 1

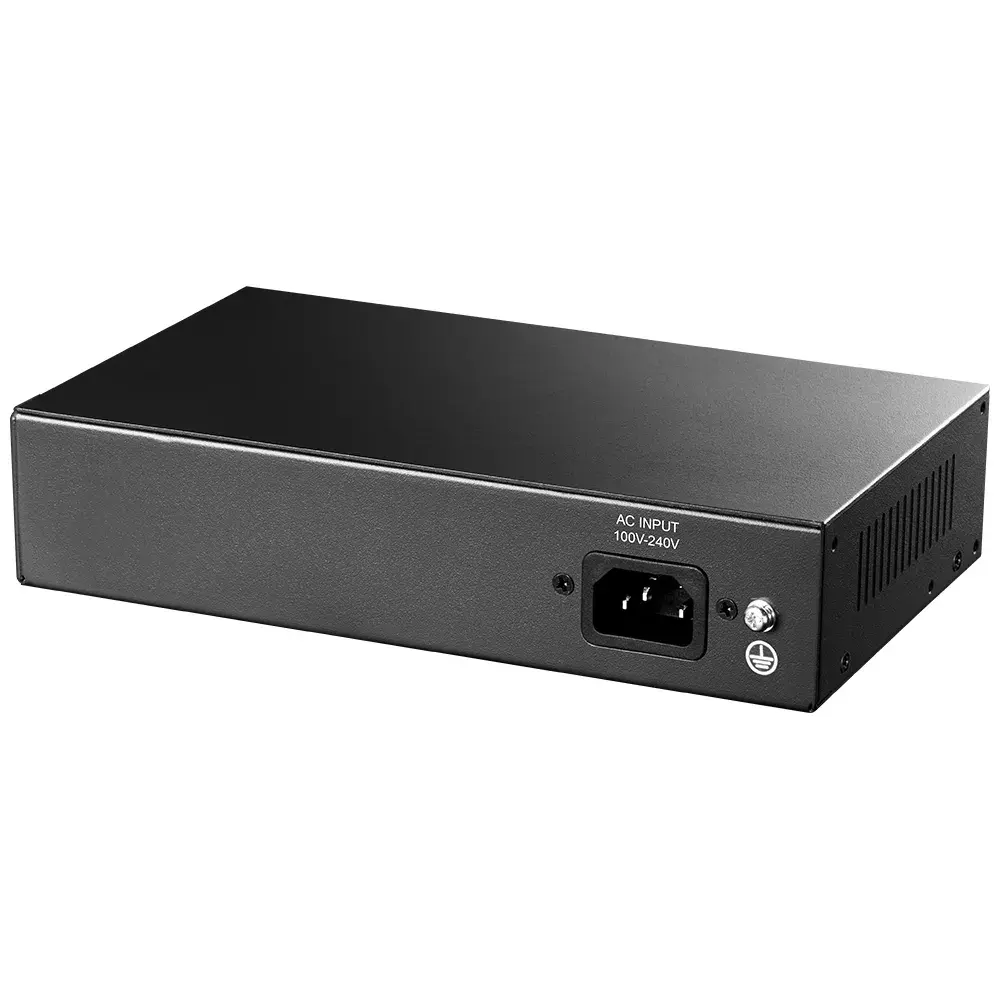

Cudy FS1006P Fast Ethernet 6-port PoE switch Photo 2

Cudy FS1006P Fast Ethernet 6-port PoE switch Photo 3

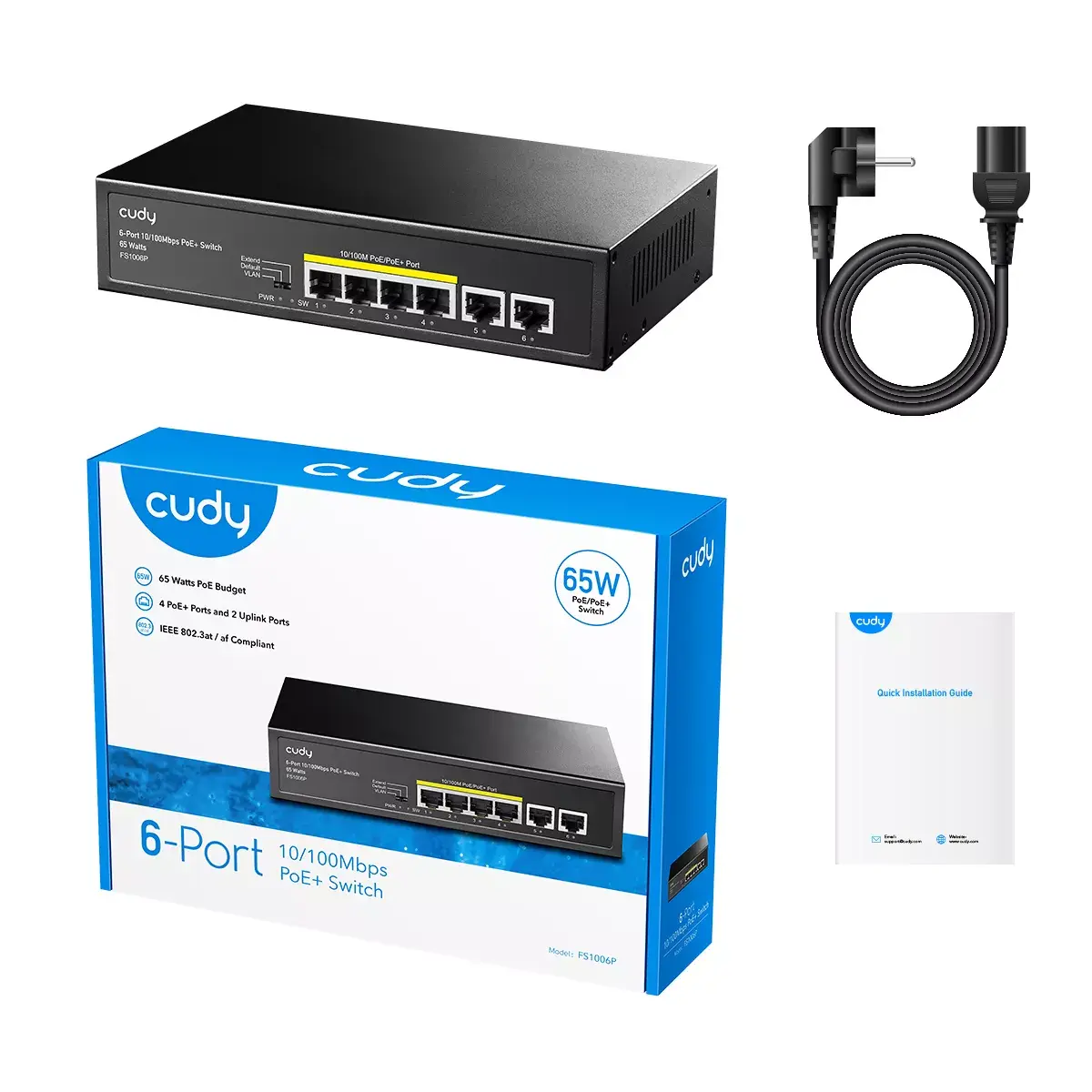

Cudy FS1006P Fast Ethernet 6-port PoE switch Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Cudy FS1006P is a 6-port Fast Ethernet switch with 4 PoE ports and 1 PoE+ port providing 52 V output and a total PoE budget of 60 W. Supports 10/100 Mbps, full/half duplex, VLAN, flow control and store-and-forward switching. Metal, fanless housing with rack and wall mounting, AC power supply included (100–240 V). Compact and reliable for IP cameras, VoIP and small office networks.

Available at price 20.99 €: 2 pcs.

Total available for order: 9 pcs.

Warranty: 2 Years

SKU: 10483349

Manufacturer: Cudy

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Thursday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Thursday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

25.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.93 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

25.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

60W Power budget & 30W Maximum One Port PoE switch provides up to 60W total Power over Ethernet and supports a single port delivering up to 30W. The device auto-detects connected equipment and complies with IEEE 802.3af/at standards, preventing damage to non-standard PoE devices or to regular PoE switches.

Advantages

Supports multiple installation options including rack, wall and desktop mounting. Fanless metal housing ensures silent operation, reliable heat dissipation and long service life. Plug-and-play operation requires no configuration, and the switch uses standard PoE pin assignment (Mode A: 1/2(+), 3/6(-)).

Key specifications

Total PoE budget: 60W
Maximum PoE per port: 30W
PoE standards: IEEE 802.3af/at
Auto-detection: supports detection of powered devices and protects non-standard devices
Installation: rack mount, wall mount, desktop
Design: fanless, metal case
Pin assignment: Mode A (1/2(+), 3/6(-))
Typical applications: IP cameras, VoIP phones, Wi‑Fi access points

How to use

Place and secure the unit using the preferred mounting method (rack, wall or desktop). Connect the switch to power and to your network uplink. Plug PoE-enabled devices (IP cameras, VoIP phones, Wi‑Fi APs) into the switch ports; the unit will automatically detect powered devices and supply appropriate power up to the per‑port and total budget limits.

Recommendations

Verify combined power requirements of connected PoE devices to ensure they do not exceed the 60W total budget, and avoid connecting more than one device drawing 30W or higher to a single port. Use appropriate cabling and follow local installation rules for mounting and grounding.

Specifications

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 6
Networking standards:: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Product colour:: Black

All features

Packaging content

Quick start guide:: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 6
Power connector:: AC-in jack
Uplink ports quantity:: 2

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) voltage:: 52 V
Power over Ethernet (PoE) ports quantity:: 4
Power over Ethernet plus (PoE+) ports quantity:: 1
Total Power over Ethernet (PoE) budget:: 60 W
Power over Ethernet (PoE) power per port:: 30 W

Power

Power source:: AC
Output voltage:: 52
Output current:: 1.25 A
AC input voltage:: 100 - 240
Power supply included:: Yes

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 80
Operating temperature (T-T):: -20 - 50
Storage relative humidity (H-H):: 5 - 90

Packaging data

Package type:: Box

Weight & dimensions

Height:: 45 mm
Width:: 200 mm
Depth:: 120 mm

Data transmission

MAC address table:: 1000 entries
Store-and-forward:: Yes
Packet buffer memory:: 0.448 MB

Performance

Mean time between failures (MTBF):: 100000 h
Plug and Play:: Yes
Fanless:: Yes

Other features

Bandwidth:: 1.2 Gbit/s

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Flow control support:: Yes
Ethernet LAN data rates:: 10, 100
VLAN support:: Yes
Half duplex:: Yes

Design

Rack mounting:: Yes
LED indicators:: Activity, Link, PoE, Power
Wall mountable:: Yes
Product colour:: Black
Housing material:: Metal

Hide Show all
