Cudy FS1010PG Fast Ethernet PoE switch

Name: Network switch Cudy FS1010PG — FS1010PG
Brand: Cudy
SKU: 10483352
Price: 43.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Network switch Cudy FS1010PG — 10/100 Mbps, 8 PoE ports, 2 uplink, 120W PoE budget, metal housing

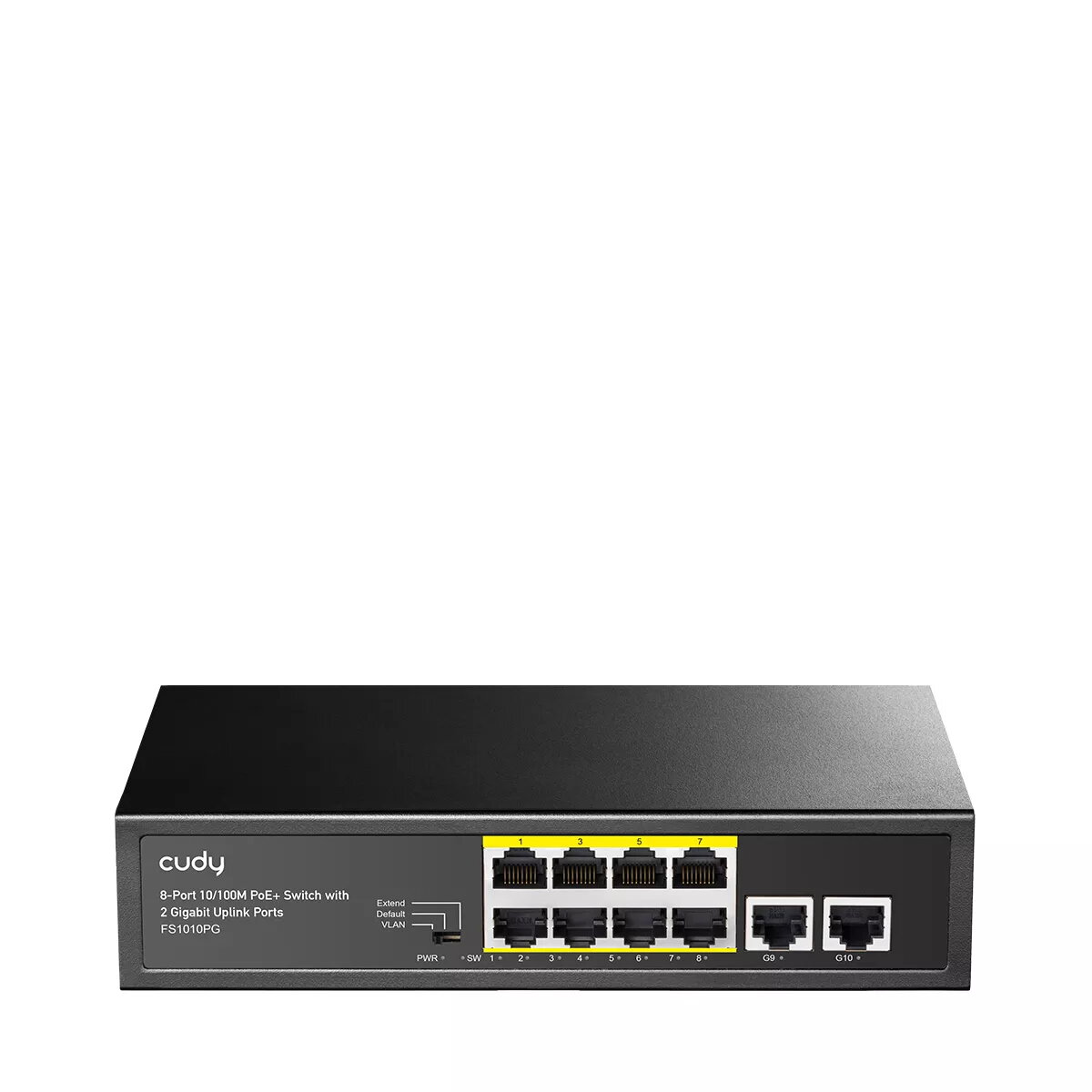

Cudy FS1010PG Fast Ethernet PoE switch Photo 1

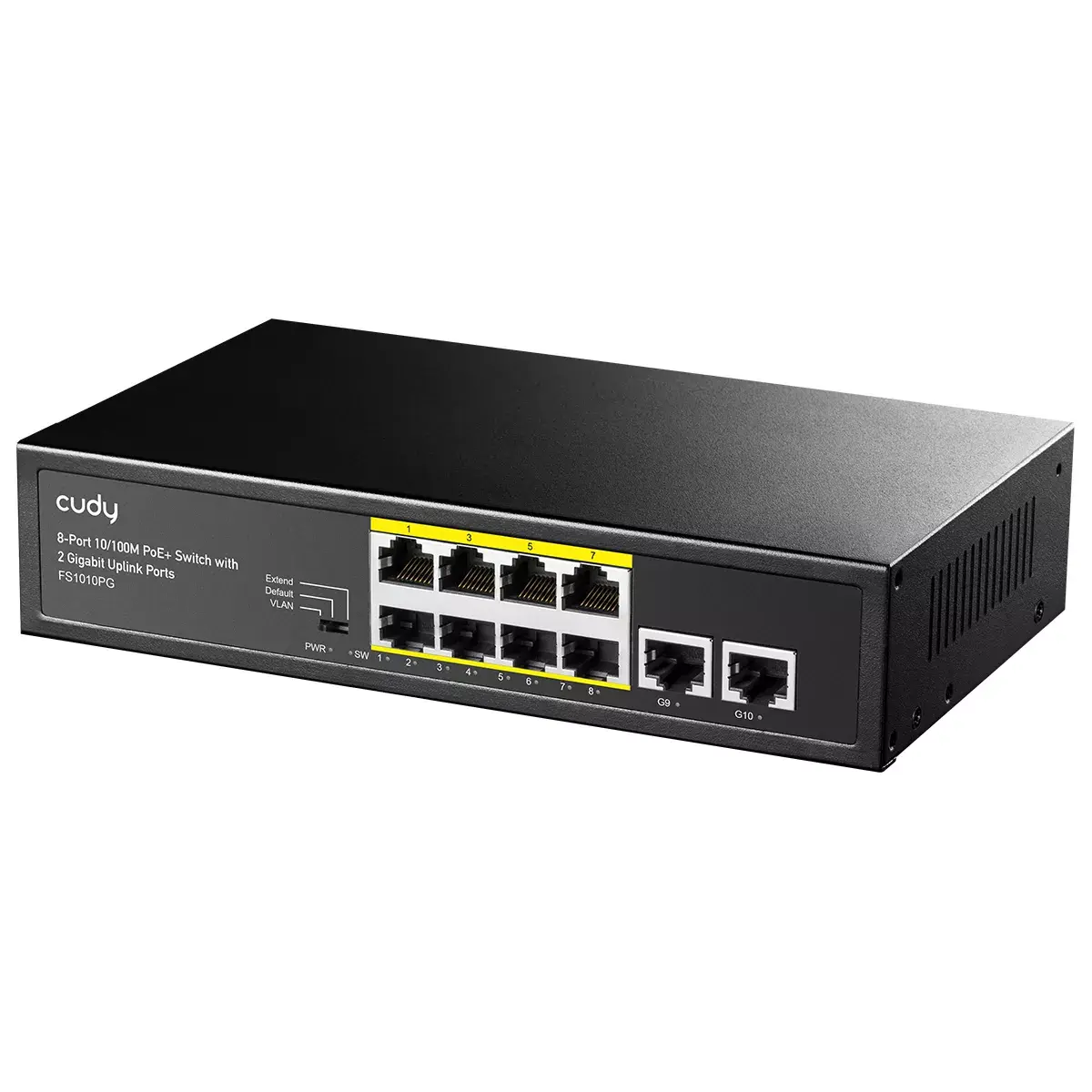

Cudy FS1010PG Fast Ethernet PoE switch Photo 2

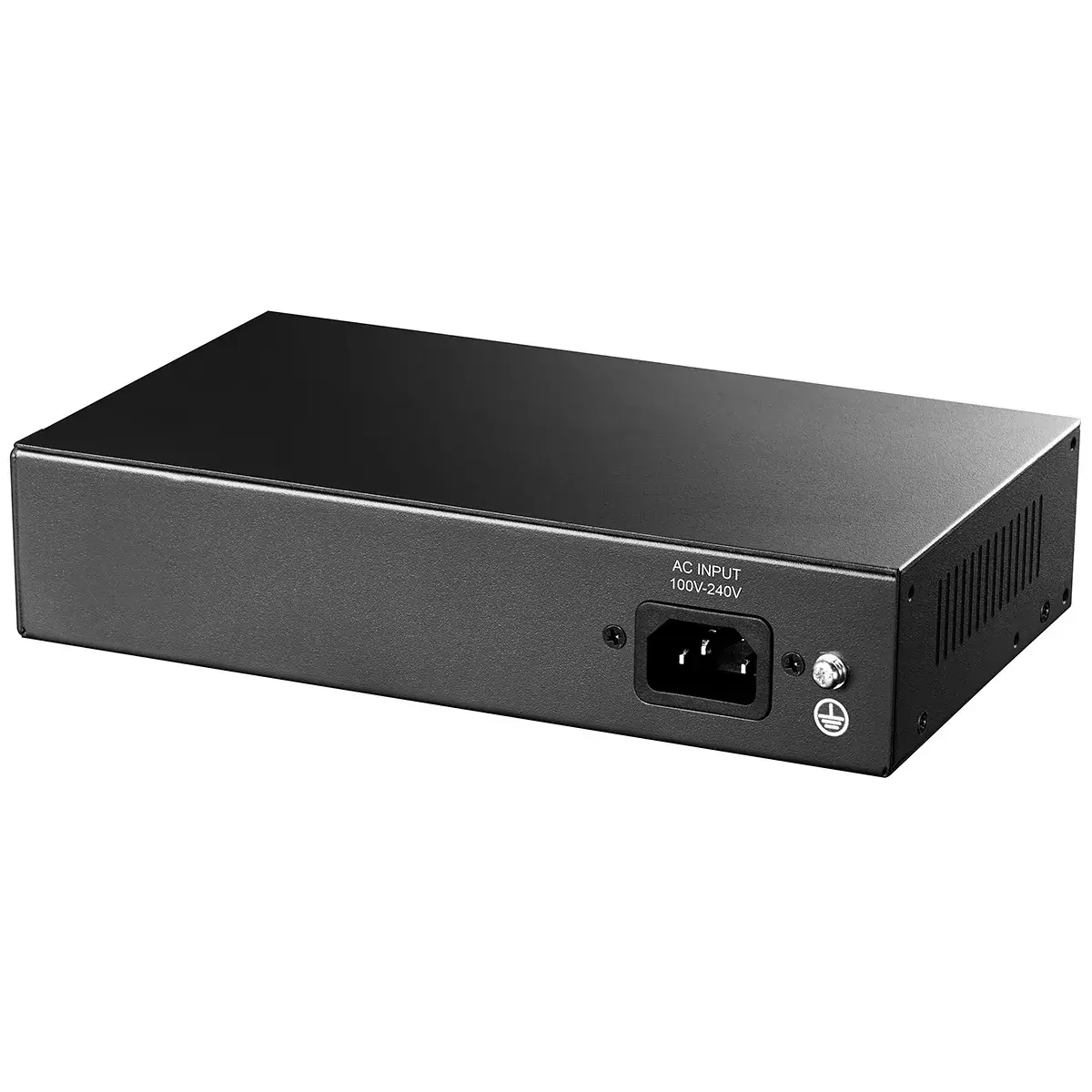

Cudy FS1010PG Fast Ethernet PoE switch Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Unmanaged Fast Ethernet switch Cudy FS1010PG with 8 Fast Ethernet (10/100) RJ‑45 ports providing PoE on all 8 ports and one PoE+ capable port. Two uplink ports, 2 Gbit/s switching bandwidth, 1.48 Mpps forwarding rate, 8000 MAC table entries and 1528‑byte jumbo frame support. Metal housing, fanless design, included AC power cord, 120 W total PoE budget and surge protection for reliable small office or surveillance network deployment.

Available for order: 35 pcs.

Warranty: 2 Years

SKU: 10483352

Manufacturer: Cudy

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.96 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PoE switch provides a total power budget of 120 W with a maximum of 30 W available to a single PoE port, compliant with IEEE802.3af/at standards. It is designed for Plug & Play installation and a fanless metal housing for quiet, reliable operation. The switch supports common network devices such as IP cameras, VoIP phones and Wi‑Fi access points for small offices, homes and businesses.

Advantages

The switch supplies standardized PoE power without damaging non-standard PoE devices or conventional PoE switches. An integrated PoE watchdog continuously monitors connected remote devices and automatically restarts any device that reports an error to restore normal operation. Fanless construction and a metal case improve heat dissipation and reduce noise while ensuring durability. Pin assignment follows Mode A: 1/2(+), 3/6(-).

Key specifications

Total PoE power budget: 120 W
Maximum power per port: 30 W
PoE standards: IEEE802.3af/at
PoE watchdog: automatic device monitoring and reboot
Design: Plug & Play, fanless
Housing: metal case for better heat dissipation
Pin assignment: Mode A (1/2(+), 3/6(-))

How to use

Connect the PoE switch to your network and attach PoE-capable devices such as IP cameras, VoIP phones or Wi‑Fi access points to the PoE ports. The device is Plug & Play and requires no additional configuration for basic operation. The built-in watchdog monitors remote devices and will automatically restart a device if a fault is detected. Ensure the total power consumption of connected PoE devices does not exceed the 120 W budget and that no single device requires more than 30 W.

Recommendations

For reliable operation, distribute connected devices so the total PoE load remains within 120 W and avoid connecting a single device that requires more than 30 W. Place the switch in a well-ventilated location to assist heat dissipation despite the fanless design. Use with IP cameras, VoIP phones and Wi‑Fi access points for small office, home or business deployments.

Specifications

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 8
Product colour:: Black
Networking standards:: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

All features

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 8
Power connector:: AC-in jack
Uplink ports quantity:: 2

Power

Power source:: AC
Surge protection voltage:: 4 kV
Surge protection:: Yes
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power supply included:: Yes

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 90

Weight & dimensions

Height:: 44 mm
Width:: 220 mm
Depth:: 150 mm

Data transmission

MAC address table:: 8000 entries
Jumbo frames support:: Yes
Store-and-forward:: Yes
Forwarding rate:: 1.48 Mpps
Packet buffer memory:: 0.25 MB
Jumbo frames:: 1528

Performance

Mean time between failures (MTBF):: 50000 h
Plug and Play:: Yes
Fanless:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) ports quantity:: 8
Power over Ethernet plus (PoE+) ports quantity:: 1
Total Power over Ethernet (PoE) budget:: 120 W
Power over Ethernet (PoE) power per port:: 30 W

Other features

Bandwidth:: 2 Gbit/s

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Flow control support:: Yes
Ethernet LAN data rates:: 10, 100
VLAN support:: Yes
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX
Cable types supported:: Cat3, Cat4, Cat5, Cat5e
Half duplex:: Yes

Design

LED indicators:: Activity, Link, PoE, Power
Product colour:: Black
Housing material:: Metal

Packaging content

Cables included:: AC
