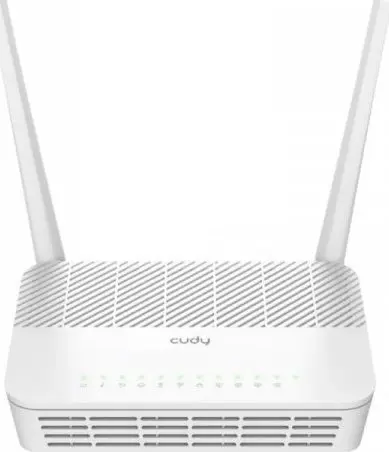

Tabletop router Cudy GP1200

Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

SC/APC

Product type: The sub-category of the product.

Tabletop router

Wi-Fi band: The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)

Ethernet LAN interface type: The characteristics of the Ethernet LAN interface.

Gigabit Ethernet

WLAN data transfer rate (max):

867 Mbit/s

WLAN data transfer rate (first band):

300 Mbit/s

WLAN data transfer rate (second band):

867 Mbit/s

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 5 (802.11ac)

MIMO:

Yes

Antenna design:

External

SC/APC GPON ports quantity:

1

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

33 mm

Depth: The distance from the front to the back of something.

123.8 mm

Width: The measurement or extent of something from side to side.

173 mm

Operational conditions

Storage relative humidity (H-H):

5 - 95

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Output current:

1 A

Output voltage:

12

AC input frequency:

50/60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Power source type: What the power source is.

DC

Antenna

Antennas quantity:

2

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

5 dBi

Design

LED indicators:

LAN, Power, WLAN

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

White

Features

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

256 MB

Flash memory:

128 MB

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

2

Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.

1150 MHz

Built-in processor: Whether or not a processor is built into the device.

Yes

Packaging content

Quick installation guide:

Yes

Cables included:

LAN (RJ-45)

AC adapter included:

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

Management features

WPS push button:

Yes

Reset button:

No

Network

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

WAN connection

SIM card slot: Whether the device features a SIM card slot.

No

DSL WAN: Whether or not the product features a DSL WAN (Wide Area Network) connection option.

No

Ethernet WAN:

Yes
