Cudy GS1010P network switch GS1010P

Name: Cudy GS1010P network switch Gigabit GS1010P
Brand: Cudy
SKU: 11268401
Price: 46.49 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

A curated selection of maximum value offers!

Cudy GS1010P network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Black

Cudy GS1010P network switch GS1010P Photo 1

Cudy GS1010P network switch GS1010P Photo 2

Cudy GS1010P network switch GS1010P Photo 3

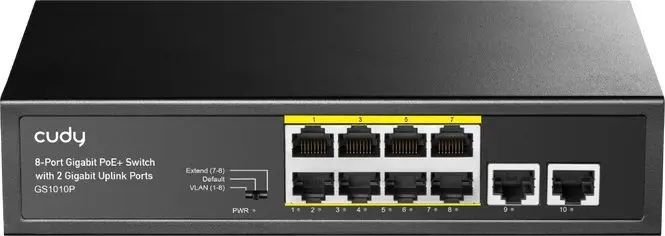

Cudy GS1010P network switch GS1010P Photo 4

Short description

Cudy GS1010P. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting, Form factor: Desktop/Wall-Mounting

Warranty: 2 Years

SKU: 11268401

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Key Features

8× GbE with 802.3at/af Mode A PoE
2× Uplink GbE
120W Power Supply
Extend On/Off, VLAN On/Off
Watchdog On/Off
PoE Max Status LED
200×118×44 mm (7.87×4.65×1.73'')
Basic switching RJ-45 Ethernet ports quantity: 10
Cat3, Cat5, Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 2048 entries Switching capacity: 20 Gbit/s
Desktop/Wall-Mounting Rack mounting
AC Power supply included Power over Ethernet (PoE)

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

Simplify PoE Management

Built-In Modes for Practical Use Cases

VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

Exceptional Built-Quality for Stable Operation

Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

Versatile Scenarios

Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages

A 10-GbE PoE switch with a 120W power supply and a silent cooling system, featuring independant control switch for Extend, VLAN, Watchdog feature.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes
Power supply included: There is a power supply with this product.: Yes
Power source: What is providing power for the product e.g. mains electricity.: AC
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Switching capacity: The data transfer capacity of the switch per second.: 20 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 2048 entries
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 10
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3

All features

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China

Packaging data

Package weight: Weight of the packaged product.: 936 g
Package height: The distance from the top to the bottom of the packaging.: 60 mm
Package depth: The distance from the front to the back of the packaging.: 190 mm
Package width: The distance from one side of the packaging to the other.: 245 mm

Packaging content

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.: Yes
Cables included:: AC

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.63 kg
Height: The measurement of the product from head to foot or from base to top.: 44 mm
Depth: The distance from the front to the back of something.: 150 mm
Width: The measurement or extent of something from side to side.: 220 mm

Operational conditions

Storage relative humidity (H-H):: 10 - 95
Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 40

Other features

Warranty period:: 1 year(s)

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget:: 120 W
Power over Ethernet (PoE) power per port:: 30 W
Power over Ethernet plus (PoE+) ports quantity:: 8
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes

Power

Power consumption (max): The maximum amount of power used by the device.: 120 W
AC input frequency:: 50/60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240
Power supply included: There is a power supply with this product.: Yes
Power source: What is providing power for the product e.g. mains electricity.: AC

Performance

Fanless:: Yes
Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.: Yes

Design

Wall mountable: The product can be mounted on (attached to ) a wall.: Yes
LED indicators:: Power, Link, Activity
Housing material: What the casing of the product is made of.: Metal
Product colour: The colour e.g. red, blue, green, black, white.: Black
Form factor: The shape or design of the product.: Desktop/Wall-Mounting
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes

Data transmission

Packet buffer memory:: 0.448 MB
Jumbo frames:: 2000
Jumbo frames support:: Yes
Store-and-forward:: Yes
Forwarding rate:: 14.88 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 20 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 2048 entries

Network

Number of VLANs:: 8
VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.: Yes
Flow control support:: Yes
Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.: 10, 100
Cable types supported:: Cat3, Cat5, Cat5e
Copper ethernet cabling technology:: 100BASE-TX, 1000BASE-T, 10BASE-T
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3at, IEEE 802.3x, IEEE 802.3u, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3

Ports & interfaces

Power connector:: AC-in jack
Uplink ports quantity:: 2
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 10
