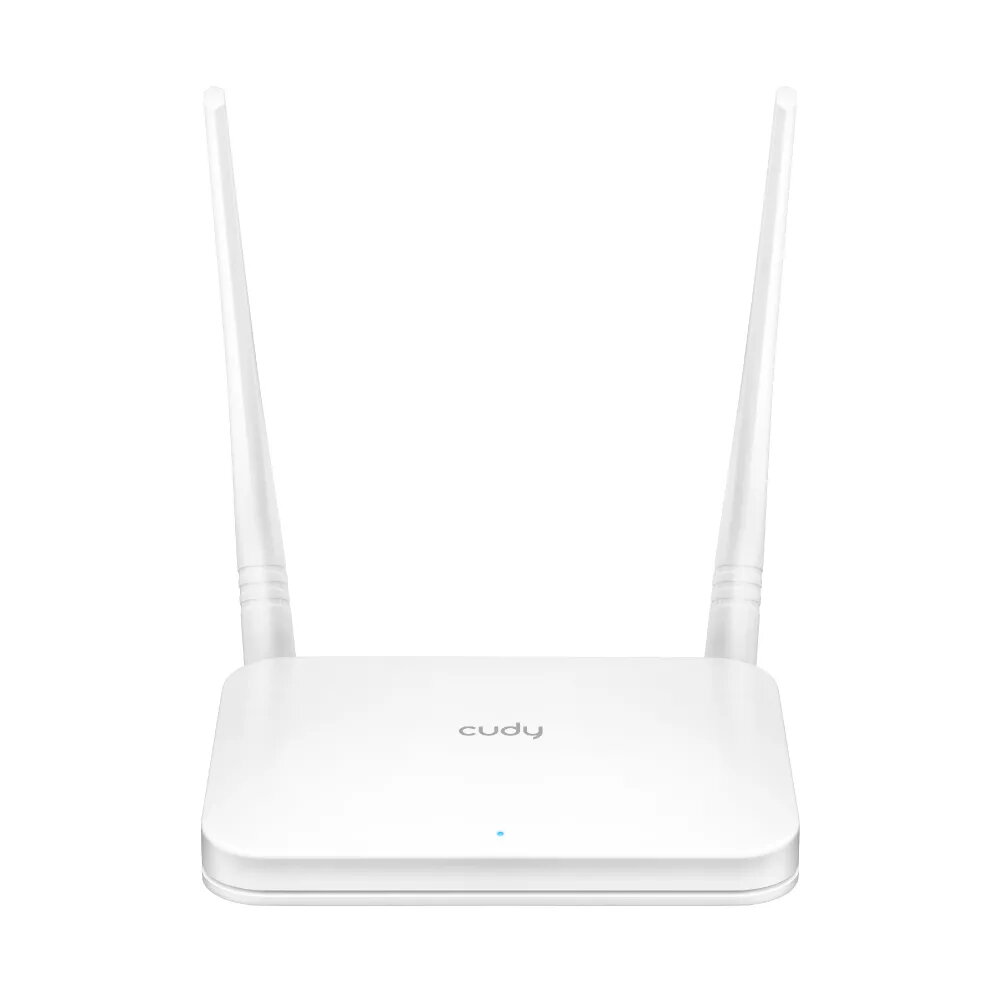

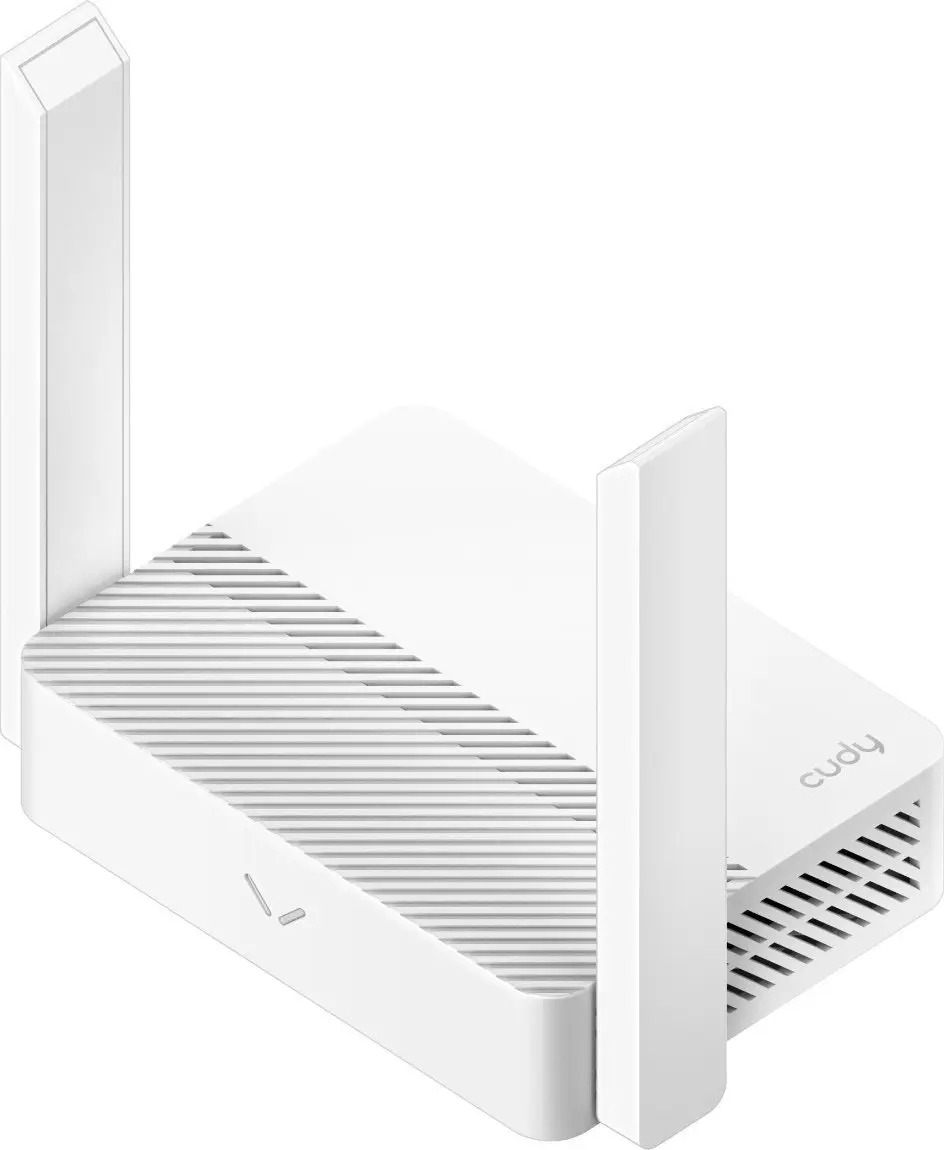

Tabletop router Cudy WR300

Number of products included: The number of products that are included in the package.

1 pc(s)

Product type: The sub-category of the product.

Tabletop router

Remote management:

Yes

WAN connection type:

RJ-45

Wi-Fi band: The frequency bands the product features.

Single-band (2.4 GHz)

USB port: The device features a socket into which a USB cable can be plugged.

No

Ethernet LAN interface type: The characteristics of the Ethernet LAN interface.

Fast Ethernet

WLAN data transfer rate (max):

300 Mbit/s

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 4 (802.11n)

Stateful Packet Inspection (SPI):

Yes

VPN Passthrough:

Yes

5G:

No

Port triggering:

Yes

Bandwidth control:

Yes

Number of guest networks (5 GHz):

1

Number of guest networks (2.4 GHz):

1

Schedule access:

Yes

Antenna design:

External

Other features

Supported WAN type:

Dynamic IP/Static IP/PPPoE

Parental control:

Yes

Packaging data

Package type: The type of product package e.g. box.

Box

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

64 mm

Depth: The distance from the front to the back of something.

169 mm

Width: The measurement or extent of something from side to side.

259 mm

Operational conditions

Storage relative humidity (H-H):

5 - 95

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Power

Output current:

1 A

Output voltage:

5

Power source type: What the power source is.

DC

Antenna

Antennas quantity:

2

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

5 dBi

Design

On/off switch: The button which is pressed to switch the device on or off.

Yes

LED indicators:

Activity, Power

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

White

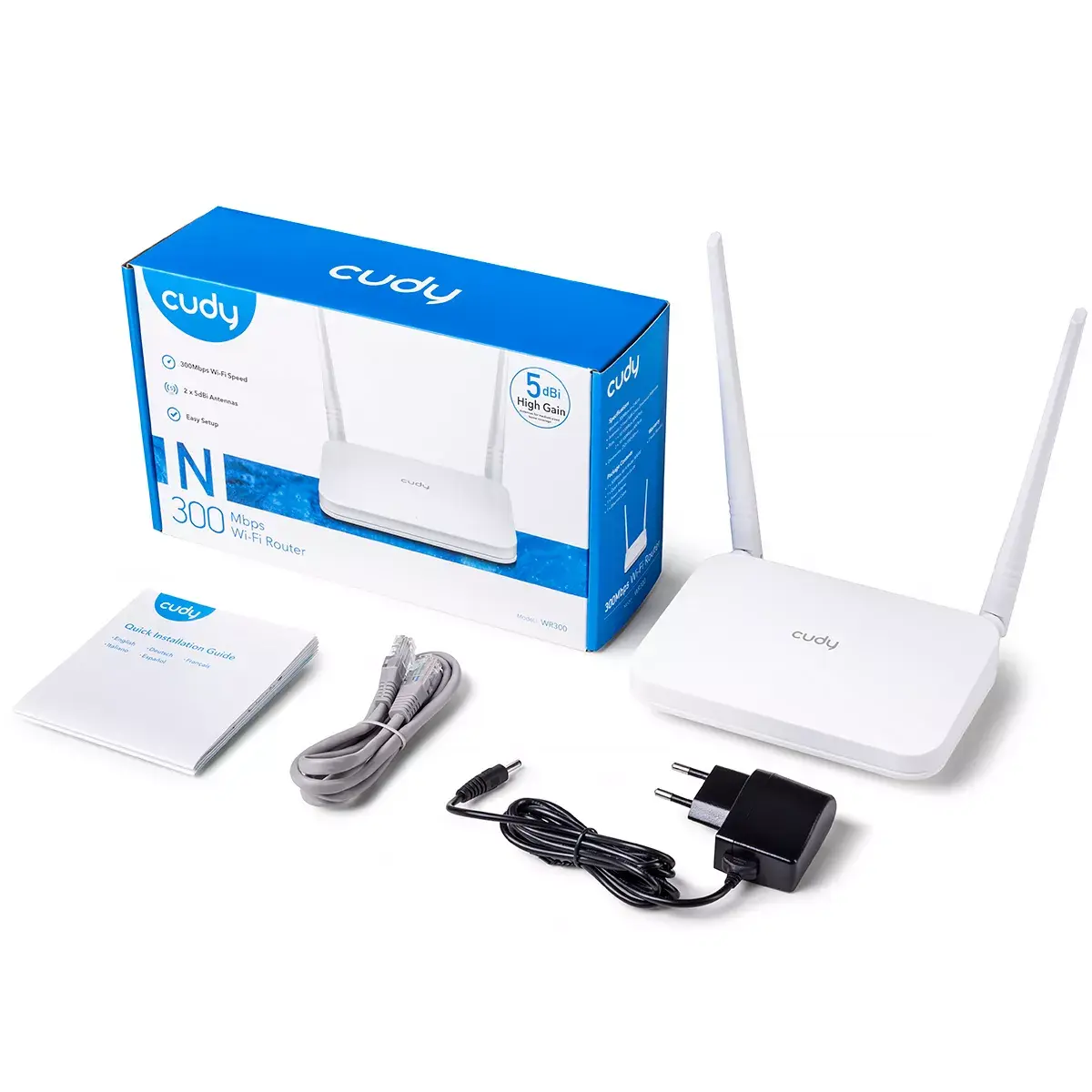

Packaging content

Quick installation guide:

Yes

Cables included:

LAN (RJ-45)

AC adapter included:

Yes

Security

Guest access:

Yes

DoS attack prevention:

Yes

IP address filtering:

Yes

MAC address filtering: Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.

Yes

Firewall security: Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.

DoS, SPI Firewall；IP Address Filter/MAC Address Filter/Domain Filter；IP and MAC Address Binding

Firewall:

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA2, WPA-PSK, WPA, WEP, WPA2-PSK

Protocols

Supported protocols:

IPv4, IPv6

DMZ support:

Yes

DHCP client: Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Yes

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2

Management features

Reset button:

Yes

Wi-Fi Multimedia (WMM)/(WME):

Yes

Universal Plug and Play (UPnP):

Yes

Quality of Service (QoS) support:

Yes

Web-based management: Using a website/web application to manage something.

Yes

Wireless LAN features

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11b, Wi-Fi 4 (802.11n), 802.11g

Mobile network

3G: Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.

No

4G: Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.

No

Network

Receiver sensitivity:

5GHz 11a 6Mbps : -96dBm, 11a 54Mbps: -79dBm 11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm, 11n HT20: -72dBm, 11n HT40: -71dBm；2.4GHz 11g 54M: -77dBm 11n HT20: -74dBm, 11n HT40: -72dBm

Port forwarding:

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

100, 10

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

WAN connection

3G/4G USB modem compatibility:

No

SIM card slot: Whether the device features a SIM card slot.

No

DSL WAN: Whether or not the product features a DSL WAN (Wide Area Network) connection option.

No

Ethernet WAN:

Yes
