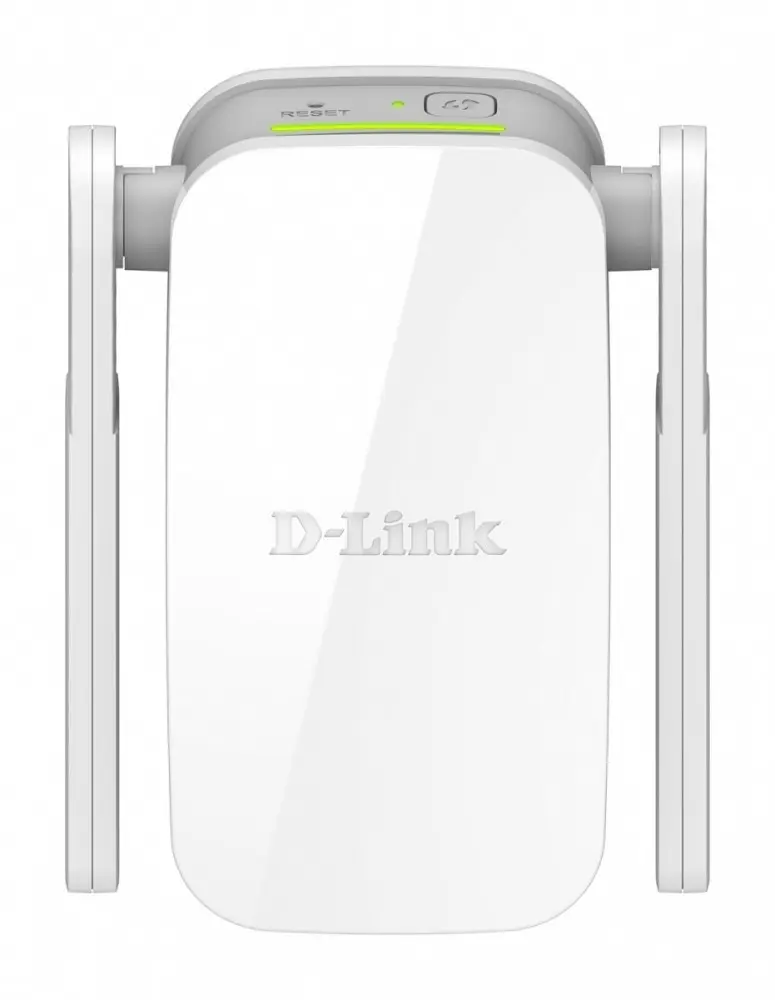

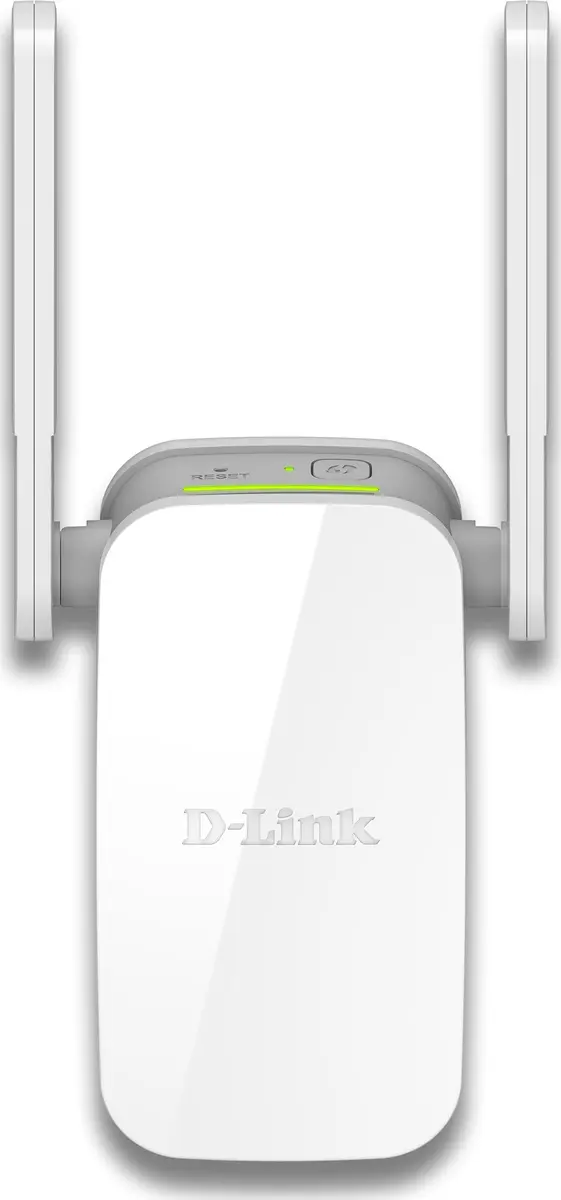

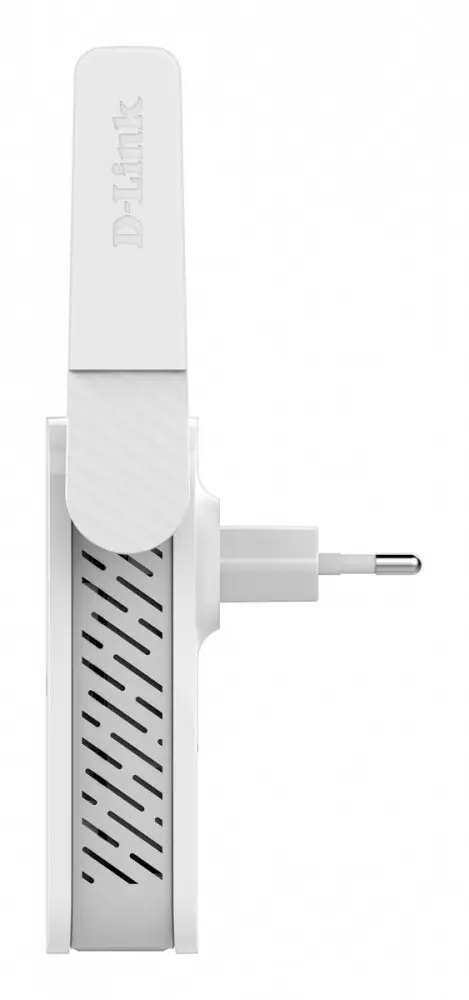

Network transmitter & receiver D-Link DAP-1610

The D-Link DAP-1610 AC1200 Wi‑Fi Range Extender is a compact wall-plug device that extends an existing wireless network by repeating the signal and increasing coverage. Supporting Wireless AC dual-band technology, it offers combined speeds up to 1200 Mbps and can operate as both network transmitter and receiver. The unit has external antennas for improved signal strength, a single Ethernet LAN (RJ-45) port for wired connections, LED status indicators and WPS for easy setup. It connects to standard AC mains (100–240 V) and comes in a compact white enclosure.

Advantages

The DAP-1610 provides increased Wi‑Fi coverage without requiring changes to the existing router, using dual‑band operation to reduce interference and deliver higher combined throughput. Its wall‑plug form factor saves space and places the extender close to power outlets, while the Ethernet port lets you connect wired devices for stable links. External antennas and visible LED indicators simplify placement and status monitoring, and support for IEEE 802.11a/b/g/n/ac ensures compatibility with a wide range of client devices.

Suitable for

• Extending home Wi‑Fi coverage to dead zones (rooms, corridors, balconies)
• Connecting a single wired device via the LAN (RJ‑45) port
• Improving wireless signal for streaming, web browsing and video calls

Key specifications

• Model: D-Link DAP-1610 (MPN: DAP-1610/E, EAN: 790069434518)
• Wireless standard: IEEE 802.11a/b/g/n/ac
• Data transfer rate: up to 1167 Mbit/s (AC1200 class, combined)
• Ports: 1 × Ethernet LAN (RJ-45)
• Power: AC input 100–240 V
• Indicators and features: LED status indicators, WPS
• Color: White; Weight: 0.12 kg
• Certification: FCC, CE, UL, IC

How to use

Plug the DAP-1610 into a household power socket within range of your existing Wi‑Fi network, then use the WPS button or the web-based setup to connect it to your router. After connection, place the extender where the LED indicators show a strong signal from the router. Use the Ethernet LAN port to connect a wired device if required. The device can operate in repeater mode to extend the wireless network and may require repositioning to achieve optimal coverage.

Usage recommendations

Position the extender midway between the router and the area with poor Wi‑Fi reception, avoid placing it near large metal objects or microwave ovens, and check LED indicators for signal strength during setup. For best performance, use the 5 GHz band for high‑bandwidth activities and 2.4 GHz for wider coverage.
