Managed Switch D-Link DXS-1210-10TS

Name: Managed Switch D-Link DXS-1210-10TS DXS-1210-10TS/E
Brand: D-Link
SKU: 6815582
Price: 859.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

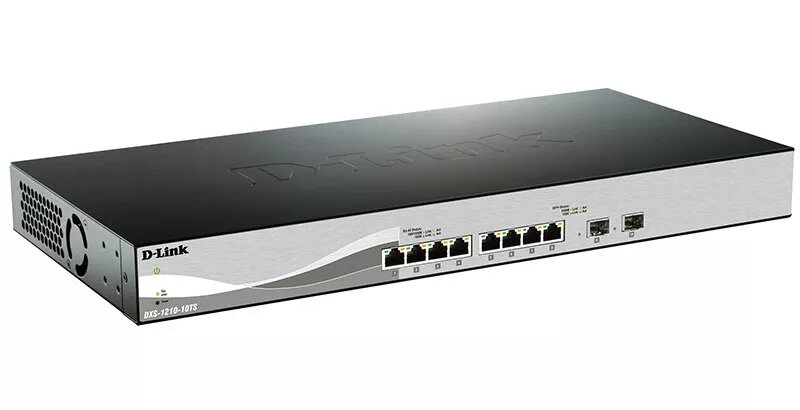

Managed Switch D-Link DXS-1210-10TS Photo 3

Short description

The D-Link DXS-1210-10TS is a managed L2/L3 switch featuring 8 x 10G Ethernet ports, a MAC address table of 16,000 entries, and a switching capacity of 200 Gbit/s. It supports various networking standards including IEEE 802.1D, 802.1Q, and 802.1x. Designed for rack mounting, this 1U form factor switch is ideal for high-performance networking environments.

Warranty: 2 Years

SKU: 6815582

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The D-Link DXS-1210 Series 10 Gigabit Ethernet Smart Switches deliver cost-effective 10 GbE connectivity for small and medium businesses. Models DXS-1210-10TS, DXS-1210-12TC and DXS-1210-12SC support 10GBASE-T and SFP+ combo ports for flexible uplink and server connections, and are designed to handle virtualization, cloud services and server-to-server traffic with high performance and low latency.

Advantages

The switches incorporate D-Link Green technology for reduced power consumption, with smart fans and internal temperature sensors that adjust fan speeds and link-aware port sleep to lower energy use and noise. Comprehensive Layer 2 features include port mirroring, Spanning Tree Protocol, LACP, loopback detection and cable diagnostics for easier maintenance. Advanced QoS, Auto Surveillance VLAN (ASV), Auto Voice VLAN and DSCP support prioritize voice and video traffic while bandwidth control allows administrators to reserve capacity for critical functions. Security features include Safeguard Engine for traffic-flood protection, 802.1X authentication, Access Control Lists, ARP spoofing prevention and DHCP server screening. Management is available via D-Link Network Assistant, D-View 6.0 and CLI over Telnet for simplified discovery, setup and central monitoring.

Key specifications

Supported models: DXS-1210-10TS, DXS-1210-12TC, DXS-1210-12SC
10 Gigabit ports: combination of 10GBASE-T and SFP+ ports (model-dependent)
DXS-1210-10TS: 8 × 10GBASE-T + 2 × SFP+
DXS-1210-12TC: 10GBASE-T/SFP+ combo ports with additional combo design
DXS-1210-12SC: 10 × 10G SFP+ + 2 × 10GBASE-T/SFP+ combo ports
Layer 2 features: port mirroring, STP, LACP
QoS and traffic prioritization: Auto Surveillance VLAN, Auto Voice VLAN, DSCP
Energy saving: smart fans, internal heat sensors, link status power-saving, low-power chipset
Security: Safeguard Engine, 802.1X, ACL, ARP spoofing prevention, DHCP server screening
Management: D-Link Network Assistant, D-View 6.0, CLI (Telnet)

How to use

Install the switch in a rack or on a stable surface and connect network devices using existing CAT5/CAT6 twisted-pair cables for 10GBASE-T or SFP+ modules for fiber links, selecting the appropriate ports according to the model. Use the D-Link Network Assistant to discover and perform initial setup without changing the PC IP address, or manage centrally with D-View 6.0 or via CLI over Telnet. Configure VLANs, QoS, ASV/Auto Voice VLAN and bandwidth control through the management interface to prioritize surveillance and VoIP traffic. Enable security features such as 802.1X, ACLs and DHCP screening to protect the network; use loopback detection and cable diagnostics for troubleshooting.

Recommendations

For optimal 10GBASE-T performance use CAT6 or higher cabling and verify SFP+ module compatibility when deploying fiber links. Plan VLANs and QoS rules in advance to ensure priority for VoIP and surveillance streams, and enable power-saving features where appropriate to reduce energy consumption.

Specifications

Basic switching RJ-45 Ethernet ports type:: 10G Ethernet (100/1000/10000)
Switch type:: Managed
Basic switching RJ-45 Ethernet ports quantity:: 8
10G support:: Yes
Weight:: 3.1 kg
Networking standards:: IEEE 802.1w, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D
Product colour:: Silver, Black

All features

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: 10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity:: 8
SFP+ module slots quantity:: 2

Management features

MIB support:: Bridge, MIB-II
Switch layer:: L2/L3
Quality of Service (QoS) support:: Yes
Web-based management:: Yes
Switch type:: Managed

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Design

Rack mounting:: Yes
Safety:: cUL, CB, CE, CCC, BSMI
Form factor:: 1U
LED indicators:: Y
Product colour:: Silver, Black

Multicast features

Multicast support:: Yes

Protocols

Management protocols:: SNMPv1/2/3, Telnet, SSH, TFTP, RMON v1/v21

Logistics data

Harmonized System (HS) code:: 85176990

Operational conditions

Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -5 - 50
Storage relative humidity (H-H):: 0 - 95

Power

AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power consumption (max):: 68.67 W

Certificates

Certification:: CE FCC C-Ticket VCCI BSMI CCC

Security

Security algorithms:: SSL/TLS, SSH, 802.1x RADIUS
Access Control List (ACL):: Yes
IGMP snooping:: Yes
DHCP features:: DHCP client, DHCP server

Technical details

Pallet gross width:: 1200 mm
Pallet gross length:: 1100 mm
Shipping (inner) case width:: 314 mm
Shipping (inner) case length:: 562 mm
Shipping (inner) case height:: 383 mm
Shipping (inner) case gross weight:: 14056 g
Products per shipping (inner) case:: 3 pc(s)
Shipping (inner) case net weight:: 13125 g
Pallet gross weight (air):: 272508 g
Master (outer) cases per pallet (air):: 18 pc(s)
Products per pallet (air):: 54 pc(s)
Pallet height (air):: 1284 mm
Pallet gross weight (sea):: 441680 g
Master (outer) cases per pallet (sea):: 30 pc(s)
Products per pallet (sea):: 90 pc(s)
Pallet height (sea):: 2050 mm

Weight & dimensions

Weight:: 3.1 kg
Height:: 44 mm
Width:: 440 mm
Depth:: 210 mm

Data transmission

MAC address table:: 16000 entries
Switching capacity:: 200 Gbit/s
Jumbo frames support:: Yes
Number of queues:: 8
Store-and-forward:: Yes

Network

Networking standards:: IEEE 802.1w, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D
Flow control support:: Yes
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Auto MDI/MDI-X:: Yes
Number of VLANs:: 4000
Spanning tree protocol:: Yes
Head-of-line (HOL) blocking:: Yes
VLAN support:: Yes
10G support:: Yes
Copper ethernet cabling technology:: 100BASE-TX, 1000BASE-T, 10BASE-T, 10GBASE-T

Packaging data

Package weight:: 4375 g
Package depth:: 546 mm
Package height:: 96 mm
Package width:: 349 mm
