SFP+ fiber optic transceiver module TP-Link SM5110-LR, 10 Gbps, 1310 nm, 3.3 V, compact form factor

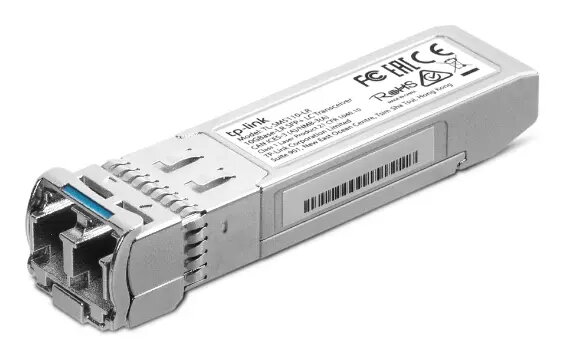

TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 1
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 2
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 3
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 4
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 1
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 2
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 3
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 4
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 1
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 2
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 3
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 4
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 1
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 2
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 3
TP-Link SM5110-LR SFP+ 10 Gbps transceiver Photo 4
SFP+ fiber optic transceiver module TP-Link SM5110-LR, 10 Gbps, 1310 nm, 3.3 V, compact form factor
Out of stock.
View similar!
Out of stock.
View similar!

Short description

TP-Link SM5110-LR is an SFP+ fiber optic transceiver module supporting up to 10 000 Mbit/s (10 Gbps) data rate at 1310 nm wavelength. Designed for SFP+ ports with 3.3 V supply, it provides a compact, hot-pluggable interface for long-reach optical links. Typical use cases include uplinks, switches and routers in data centers and enterprise networks.
Warranty: 2 Years
SKU: 12065274
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

TP-Link SM5110-LR is an SFP+ fiber optic transceiver module that supports data rates up to 10 000 Mbit/s over single-mode fiber using a 1310 nm wavelength. The module fits SFP+ ports with a 3.3 V supply and provides a compact, hot-pluggable interface for establishing long-reach optical links in networking equipment such as switches, routers and uplink ports.

Advantages

The transceiver offers a compact form factor compatible with SFP+ cages and supports hot-swapping to minimize downtime during installation or replacement. With operation at 1310 nm and support for 10 Gbps throughput, it is suitable for long-reach connections in data center and enterprise environments. Native 3.3 V operation ensures compatibility with standard SFP+ power rails.

Suitable for

  • 10 Gbps uplinks between switches and routers
  • Long-reach single-mode fiber links in data centers
  • Server-to-switch optical connections
  • Enterprise backbone and aggregation links

Key specifications

  • Interface type: SFP+
  • Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
  • Optical wavelength: 1310 nm
  • Input voltage: 3.3 V
  • Form factor: compact, hot-pluggable transceiver module

How to use

Power down is not required for installation in most systems; insert the SFP+ transceiver into a compatible SFP+ port until it latches, and connect the single-mode fiber cable to the optical interface. Ensure the host device recognizes the module and configure link settings on the connected equipment if necessary. To remove, release the latch and pull the module from the port, protecting the fiber ends from contamination when disconnected.

Usage recommendations

Use single-mode fiber patch cables and ensure connectors are clean before mating. Verify compatibility with the host equipment and apply appropriate link configurations and monitoring. Store unused modules in protective anti-static packaging and keep optical ports capped when not in use to maintain performance.

Specifications

Interface type:
SFP+
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
10000 Mbit/s
SFP transceiver type:
Fiber optic
All features

Packaging content

Quantity per pack:
8 pc(s)

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.
10.35 mm
Depth: The distance from the front to the back of something.
13.9 mm
Width: The measurement or extent of something from side to side.
56.7 mm

Operational conditions

Storage relative humidity (H-H):
5 - 90
Operating relative humidity (H-H):
10 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 70

Power

Input voltage: The voltage (V) which is required to power the product.
3.3

Features

Hot-swap:
Yes

Performance

Digital Diagnostics Monitoring (DDM):
Yes
Duplex system: A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.
10000 m
Fiber cable diameters supported (core/cladding):
9/125
Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Single-mode fiber (SMF) supported:
Yes
Interface type:
SFP+
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.
10000 Mbit/s
SFP transceiver type:
Fiber optic
