Network Cable DATACOM S/FTP drát CAT7 PE,Fca 500m black

DATACOM S/FTP CAT7 network cable designed for structured cabling installations. The cable features S/FTP shielding (overall braid with individual aluminium-foiled pairs), solid copper conductors and a PE outer jacket in black. It is supplied on a 500 m wooden drum and meets international standards for high-bandwidth, interference-resistant data transmission in more demanding outdoor environments.

Advantages

The double-shielded S/FTP construction combined with a PE jacket provides strong protection against electromagnetic interference and environmental exposure. Solid 23 AWG (0.56 mm) copper conductors and FMPE insulation ensure consistent signal quality and mechanical stability. The cable includes a drain wire for grounding and an Al&Mg braid for additional shielding coverage.

Suitable for

• Outdoor and indoor structured network cabling where enhanced shielding is required
• High-speed Ethernet installations up to CAT7 performance
• Data centers, backbone runs and industrial network segments

Key specifications

• Type: DATACOM S/FTP drát CAT7
• Conductor: 4 pairs x solid copper 0.56 mm (23 AWG)
• Insulation: FMPE, insulation diameter 1.35 mm ±0.05 mm
• Shielding: S/FTP (overall braid + individual AL foil per pair) plus Al&Mg braid 8/7/0.12 mm
• Drain wire: 1 x 0.4 mm
• Outer jacket: PE, black
• Cable diameter: 8.0 mm ±0.05 mm
• Pair colours: white-blue, white-orange, white-green, white-brown

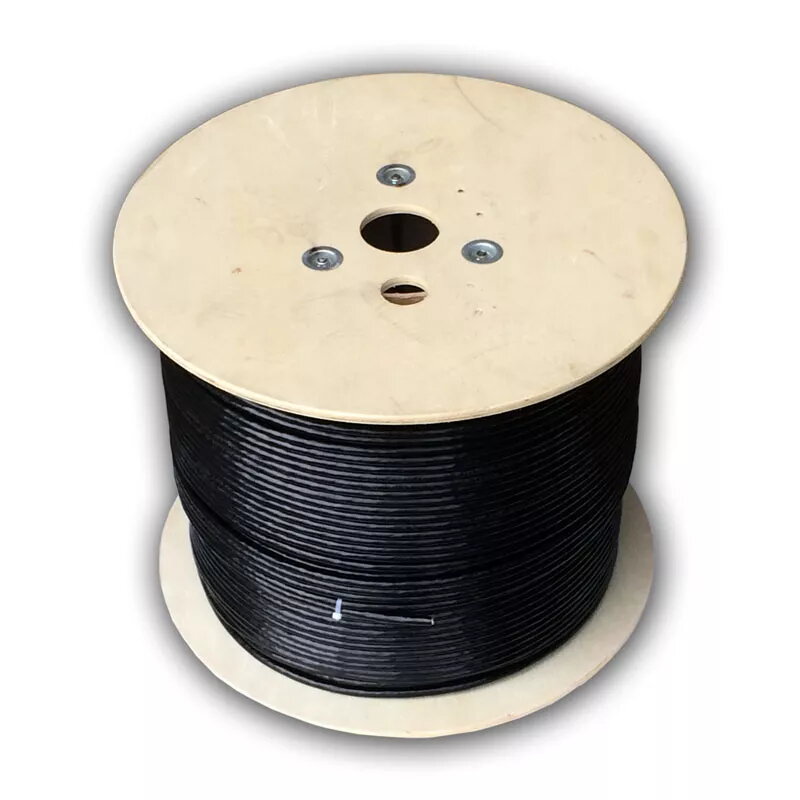

• Length: 500 m on wooden drum (drum width 34 cm, diameter 43 cm)
• Weight: 27.5 kg

How to use

Install the cable following standard structured cabling practices. Route the cable avoiding excessive bending and mechanical stress; observe the minimum bend radius recommended for CAT7 cables. Terminate each pair with compatible CAT7 connectors or keystone jacks that support S/FTP shielding, and connect the drain wire to the system ground to maintain shielding effectiveness.

Usage recommendations

For outdoor deployments, ensure the cable is placed in suitable conduits or trays to protect from direct UV exposure and physical damage. Use appropriate grounding at both ends and select connectors and installation tools rated for CAT7 S/FTP cables to preserve performance.
