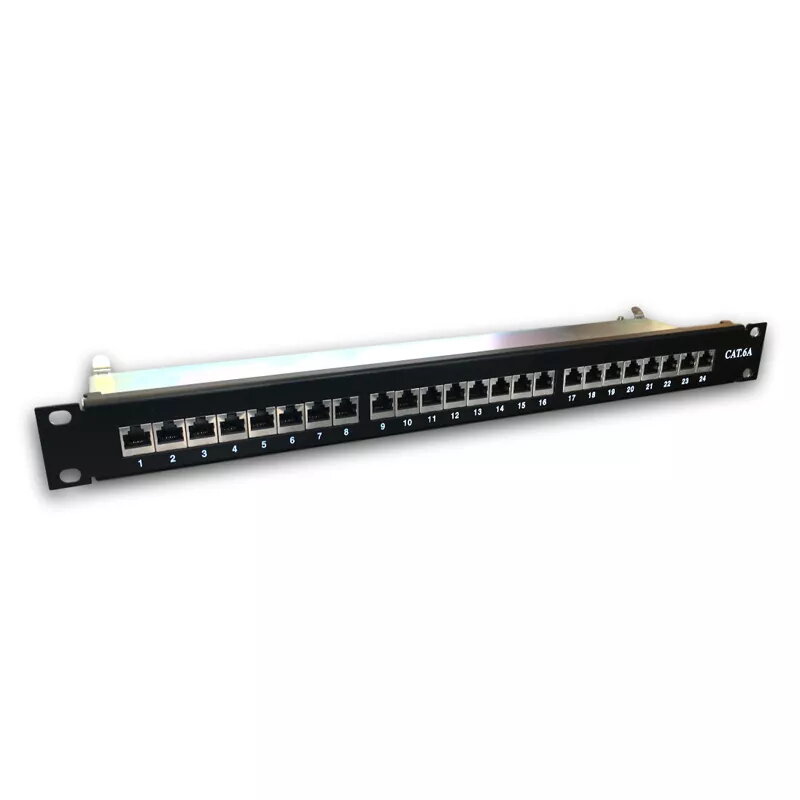

Patch panel DATACOM 3131 24-port 19" STP Cat6A 1U

DATACOM 3131 24-port 19" STP Cat6A 1U is a rack-mount patch panel designed to terminate and organize shielded copper network cabling in a 1U, 19-inch format. Engineered for Cat6A performance, this 24-port STP panel supports high-speed Ethernet links up to 10 Gigabit and provides an organized, space-efficient solution for structured cabling in data centers, server rooms and telecommunication closets.

Advantages

The patch panel features metal-shielded RJ45 ports that maintain cable shielding continuity and reduce susceptibility to electromagnetic interference. Its 1U form factor saves rack space while keeping ports accessible for fast patching and reconfiguration. With Cat6A-rated performance, the panel supports higher bandwidth and improved crosstalk performance compared to lower-category panels. Built for professional installations, it offers reliable mechanical termination points and a consistent port layout for simplified cable management.

Suitable for

• 10 Gigabit Ethernet networking in data centers and server rooms
• Structured cabling systems requiring shielded (STP) connectivity
• Rack-mounted installations where space efficiency is important
• Commercial and institutional IT closets with high-density port requirements

Key specifications

• Form factor: 1U, 19-inch rack-mount
• Number of ports: 24 RJ45 shielded ports (STP)
• Cable category: Cat6A compliant performance
• Supported data rate: up to 10 Gigabit Ethernet
• Shielding: metal-shielded connectors to maintain STP continuity
• Mounting: front-facing ports for easy access in rack environments
• Construction: durable metal housing for mechanical stability and EMI protection

How to use

Install the patch panel into a standard 19-inch rack occupying one rack unit (1U). Terminate incoming shielded Cat6A cables using appropriate punch-down or IDC termination methods following the panel’s port labeling and wiring scheme. Ensure that cable shields are properly grounded at the rack or network earthing point to preserve STP effectiveness. Connect patch cords to the front RJ45 ports to link devices or switches; maintain clear labeling for each port to simplify future changes and troubleshooting.

Usage recommendations

Use factory-rated Cat6A shielded patch cords and maintain continuous shielding and grounding practices throughout the rack to achieve consistent 10 Gigabit performance and reduce electromagnetic interference. Keep cable bend radii within manufacturer guidelines and avoid tight cable bundling near power sources. Periodically inspect terminations and rack earthing to ensure long-term connection reliability.
