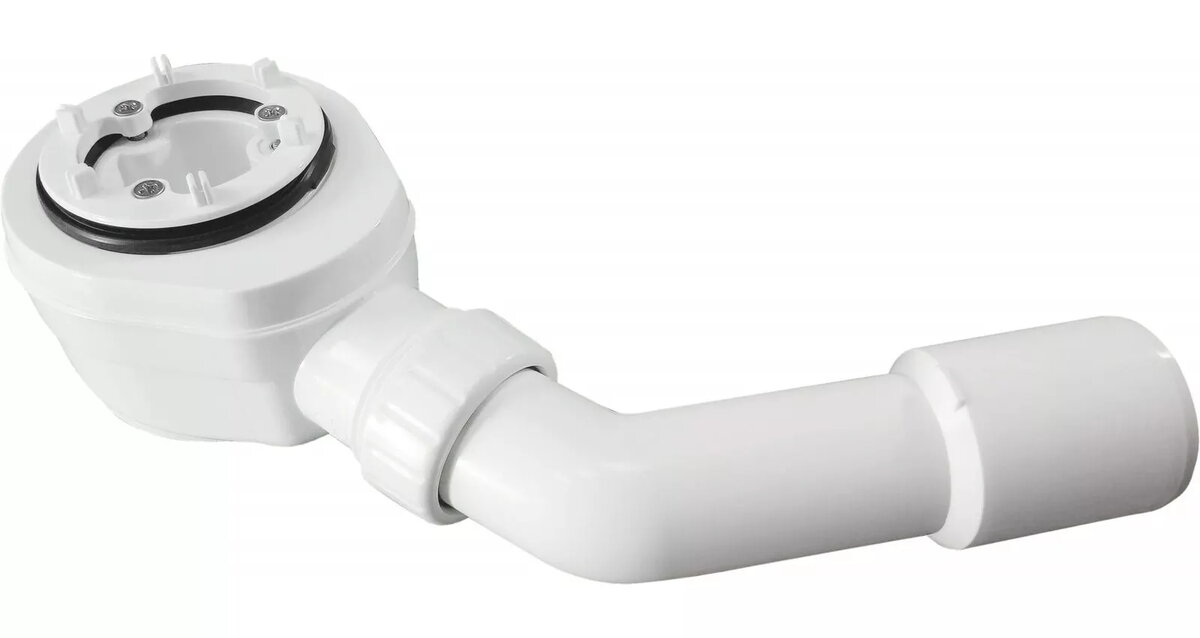

Siphon for linear drain deante KXY 9956

The siphon for linear drain deante KXY 9956 is a plumbing component developed to connect linear shower channels to the building drainage system while providing a water seal to prevent sewer gas from entering the room. Designed for use with linear channel drains, the siphon enables secure coupling between the channel outlet and the waste pipe and is suitable for residential and commercial bathroom installations where a compatible siphon solution is required.

Advantages

This siphon offers a reliable water trap that prevents odors and backflow, while ensuring smooth drainage from the linear channel. Its compact design allows installation in confined spaces beneath the channel without affecting the finished floor level. The construction supports standard pipe connections for easy integration into existing plumbing layouts and facilitates maintenance access when needed.

Suitable for

• Linear shower drains in residential bathrooms
• Commercial shower installations in hotels and gyms
• Renovation projects where a compact siphon is required under a channel drain
• Situations requiring an effective trap to prevent sewer odors

Key specifications

• Function: provides water trap and connection between linear channel and waste pipe
• Compatibility: intended for use with linear channel shower drains
• Installation location: beneath the linear drain channel, accessible for maintenance
• Connection type: suitable for standard drainage piping (adapters may be required depending on pipe diameter)
• Design: compact profile to fit under tiled finishes and low construction heights

How to use

Position the siphon directly under the outlet of the linear drain channel and connect it to the channel outlet according to the drain manufacturer's guidance. Connect the siphon outlet to the building waste pipe using an appropriate adapter or flexible connector matching the pipe diameter. Ensure that the siphon is level and that all joints are sealed to prevent leaks. After installation, pour water through the drain to confirm the trap is filled and check for proper flow and absence of leaks.

Usage recommendations

Use compatible sealing materials and follow local plumbing codes during installation. Periodically inspect the siphon for debris buildup and clean as necessary to maintain drainage performance and trap integrity.
