Managed Switch DELL S-Series S5248F-ON

Name: Managed Switch DELL S-Series S5248F-ON 210-APEX
Brand: Dell
SKU: 6678065
Price: 5289.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Managed Switch DELL S-Series S5248F-ON L2/L3 100 Gigabit Ethernet

Managed Switch DELL S-Series S5248F-ON Photo 1

Managed Switch DELL S-Series S5248F-ON Photo 2

Managed Switch DELL S-Series S5248F-ON Photo 3

Managed Switch DELL S-Series S5248F-ON Photo 4

Managed Switch DELL S-Series S5248F-ON Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The DELL S-Series S5248F-ON is a managed L2/L3 switch featuring 100 Gigabit Ethernet support, a 2000 Gbit/s switching capacity, and a MAC address table with 16000 entries. It is designed for high-performance networking and offers various IEEE standards compliance. The switch is rack-mountable with a 1U form factor, making it suitable for data centers and enterprise environments.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 6678065

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 8.28 € (Weight: 9.70 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 1763.33 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities

36 months installment: from 146.94 euros per month

Leasing for legal entities: from 184.09 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DELL S-Series S5248F-ON is a managed L2/L3 100 Gigabit Ethernet switch designed for data centers and enterprise networks. It provides a 2000 Gbit/s switching capacity, a MAC address table supporting 16,000 entries and compliance with multiple IEEE networking standards. The unit is rack-mountable in a 1U form factor and is intended to support high-performance, software-defined network deployments while enabling architectural flexibility.

Advantages

The switch supports 100 Gigabit Ethernet and 10G connectivity, offering high throughput and low-latency forwarding suitable for aggregation and spine-leaf architectures. With a large MAC address table and broad IEEE standards support, it integrates with existing network authentication, spanning, link aggregation and QoS frameworks. Its 1U rack-mount design and managed L2/L3 capabilities make it adaptable for data center and enterprise rack deployments.

Suitable for

Data center aggregation and spine/leaf fabrics
High-performance enterprise core or distribution layers
Environments requiring 100 Gigabit uplinks and 10G access
Software-defined networking migrations and flexible architectures

Key specifications

Switching capacity: 2000 Gbit/s
MAC address table: 16,000 entries
Supported speeds: 100 Gigabit Ethernet; 10G support: Yes
Switch type: Managed L2/L3
Networking standards: IEEE 802.1w, 802.3x, 802.3ad, 802.3ac, 802.1x, 802.1s, 802.1p, 802.1ab, 802.1Qbb, 802.1Qaz, 802.1Q, 802.1D
Form factor: 1U rack-mountable
Colour: Black
Weight: 9.7 kg

How to use

Install the switch in a standard 19-inch rack using the 1U mounting provisions and ensure adequate airflow and power provisioning according to site requirements. Connect uplink and access ports using appropriate QSFP28 or SFP+ transceivers and configure VLANs, routing, link aggregation and QoS through the switch management interface or supported network controller. Use the management features to integrate authentication, spanning tree, and monitoring in line with your network design.

Usage recommendations

Deploy this managed 100 Gigabit Ethernet switch in aggregation or core roles where high throughput, standards compliance and managed L2/L3 features are required. Verify transceiver compatibility for 100G and 10G links and follow data center cooling and power best practices.

Specifications

10G support:: Yes
Weight:: 9.7 kg
Switch type:: Managed
Networking standards:: IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.1x, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Q, IEEE 802.1D
Product colour:: Black

All features

Optical fiber

Switching optical modules type:: 100 Gigabit Ethernet

Ports & interfaces

Console port:: RJ-45
Fiber optic connector:: SFP28, QSFP28, QSFP28-DD, QSFP-DD
SFP module slots quantity:: 48
Power connector:: AC-in jack

Performance

Internal memory:: 16000 MB
Minimum system requirements:: Linux Kernel 4.9
Compatible operating systems:: Debian Linux version 9
Built-in processor:: Yes
List of RFCs:: IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP

Logistics data

Harmonized System (HS) code:: 85176990

Operational conditions

Operating relative humidity (H-H):: 5 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 45
Storage relative humidity (H-H):: 5 - 90
Heat dissipation:: 2054 BTU/h

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 400 W
Number of power supply units:: 2
Redundant power supply (RPS) support:: Yes
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power consumption (max):: 602 W
Power supply included:: Yes

Certificates

Certification:: RoHS

Design

Rack mounting:: Yes
Form factor:: 1U
LED indicators:: Y
Backlight display:: Yes
Product colour:: Black
Cable management:: Yes
Stackable:: Yes
Number of fans:: 4 fan(s)
Display type:: LED

Protocols

Management protocols:: CLI, SNMP, REST, API’s

Network

Networking standards:: IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.1x, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Q, IEEE 802.1D
Port mirroring:: Yes
Link aggregation:: Yes
VLAN support:: Yes
10G support:: Yes
Address Resolution Protocol (ARP) entries (max):: 128000
Virtual LAN features:: Tagged VLAN

Management features

Switch layer:: L2/L3
Quality of Service (QoS) support:: Yes
Switch type:: Managed

Weight & dimensions

Weight:: 9.7 kg
Height:: 44 mm
Width:: 434 mm
Depth:: 460 mm

Data transmission

MAC address table:: 16000 entries
Switching capacity:: 2000 Gbit/s
Packet buffer memory:: 32 MB

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Multicast features

Multicast support:: Yes

Security

Security algorithms:: AES, 802.1x RADIUS, EAP

Hide Show all

Instructions

mmo_66926443_1551944404_9804_1703.pdf

dell-210-APEX-6678065.pdf

Description

Instructions

mmo_66926443_1551944404_9804_1703.pdf

dell-210-APEX-6678065.pdf

Machine translation. Load original

Reasons to buy

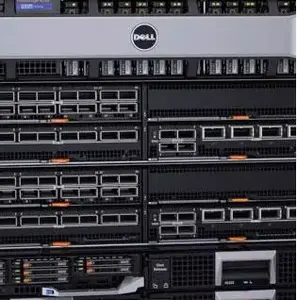

Innovative data center architectural agility with 25/40/50/100GbE switches

Gain the flexibility to transform your data centers with high-capacity network fabrics that are easy to deploy, cost-effective and provide a clear path to a software-defined data center. They offer:

- High density for 25/40/50/100GbE deployments in top-of-rack, middle-of-row, and end-of-row deployments
- A choice of S5048F-ON, S5148F-ON, S5248F-ON, S5296F-ON and S5232F-ON 25 &100GbE, S6000-ON and S6010-ON 40GbE switches and the S6100-ON 10/25/40/50/100GbE modular switch
- An ideal solution for modern workloads and applications designed for the open networking era Innovative data center architectural agility with 25/40/50/100GbE switches

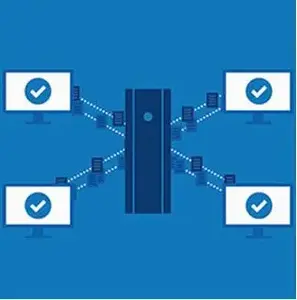

Optimized for the open networking era

Get more agility, more choices and lower costs than proprietary networks with select open-standards-based ON (open networking) switches.

- Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center.
- Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems.
- Your choice of network operating system helps simplify data-center fabric orchestration and automation.
- A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network. Optimized for the open networking era

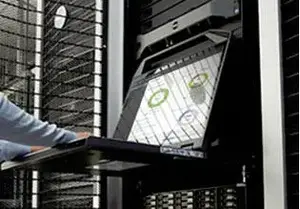

Ready for software-defined networking

Deploy modern workloads and applications while providing an easy on-ramp to software-defined networking (SDN).

- Support for OpenFlow v1.3 provides interoperability with industry-standard OpenFlow controllers.
- VXLAN Layer 2 Gateway enabling allows connection to hypervisor-based overlay networks.
- Third-party OS support provides an easy entry point to SDN for part or all of your production environment. Ready for software-defined networking

Dell EMC Networking S5248F-ON

Provide optimum flexibility and cost-effectiveness for demanding compute and storage traffic environments with this ToR switch that features 48 x 25GbE SFP28 ports, 4 x 100GbE QSFP28 ports and 2 x 100GbE QFSP28-DD ports. The S5248F-ON also supports Open Network Install Environment (ONIE) for zero-touch installation of network operating systems. Dell EMC Networking S5248F-ON
