DELL S-Series S5248F-ON 210-APFB

Name: Managed L2/L3 Network Switch Dell 210-APFB
Brand: Dell
SKU: 12265060
Price: 11806.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Managed L2/L3 Network Switch Dell S-Series S5248F-ON with 100GbE modules, RJ-45 console, 16k MAC table, 2000 Gbit/s switching

DELL S-Series S5248F-ON 210-APFB Photo 1

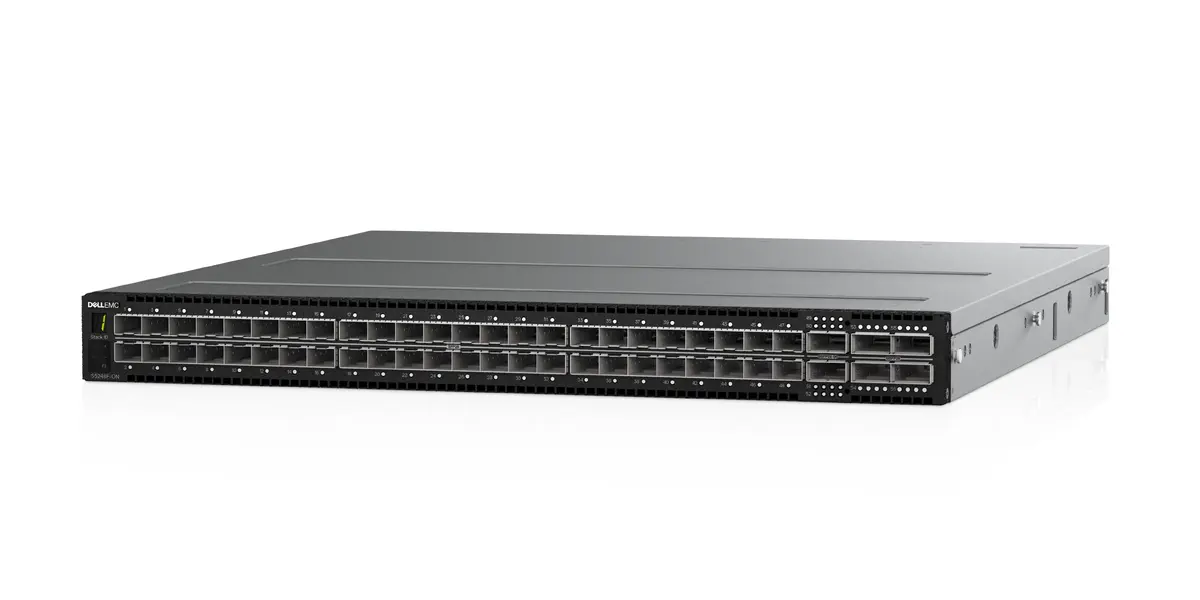

DELL S-Series S5248F-ON 210-APFB Photo 2

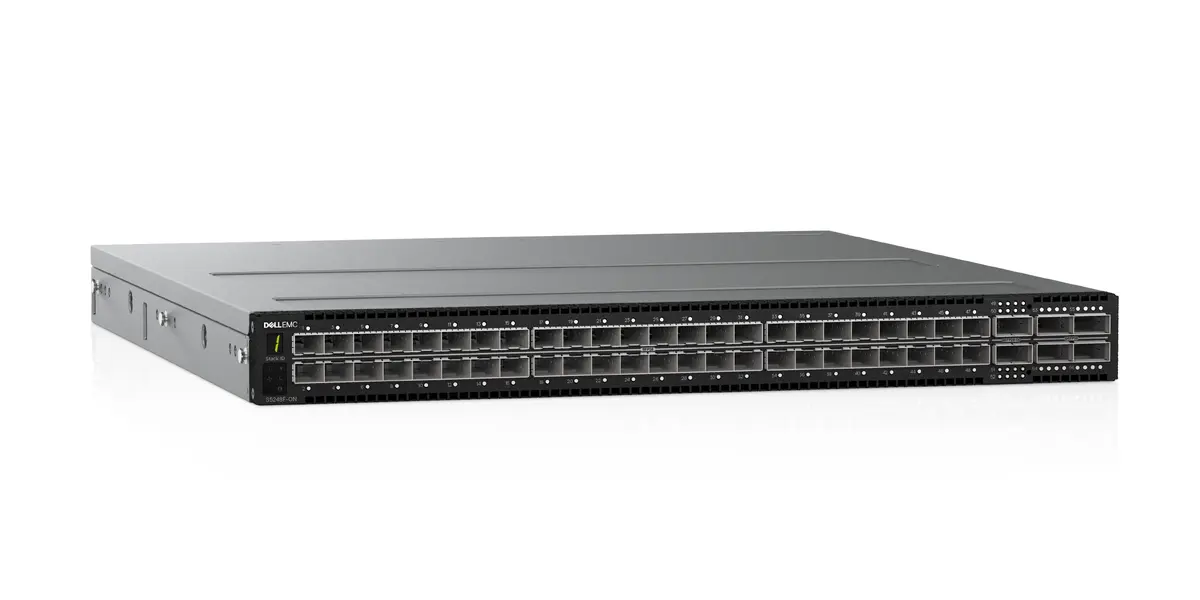

DELL S-Series S5248F-ON 210-APFB Photo 3

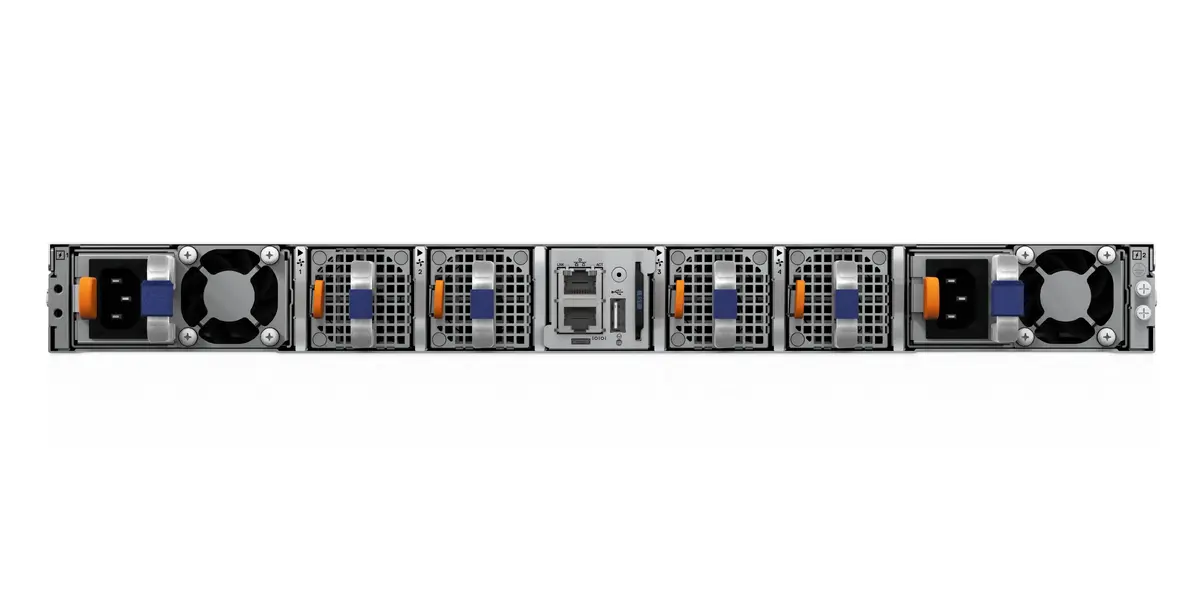

DELL S-Series S5248F-ON 210-APFB Photo 4

DELL S-Series S5248F-ON 210-APFB Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

DELL S-Series S5248F-ON. Switch type: Managed, Switch layer: L2/L3. Switching optical modules type: 100 Gigabit Ethernet. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 2000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s,.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

Available at price 11,806.99 €: 2 pcs.

Total available for order: 4 pcs.

Warranty: 2 Years

SKU: 12265060

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 8.28 € (Weight: 9.70 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 410.88 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DELL S-Series S5248F-ON is a managed L2/L3 1U network switch designed for data centres and enterprise networks that require high-density, low-latency switching. It supports 10G and higher-speed optical interfaces and includes a console RJ-45 port. The unit is rack-mountable (1U), stackable and shipped with a power supply. Built to support common Ethernet and VLAN standards, the switch aims to facilitate migration toward software-defined data centre architectures.

Advantages

This Dell S5248F-ON provides managed L2/L3 functionality with CLI, SNMP and REST APIs for integration into automated network environments. It supports Quality of Service (QoS) mechanisms and a MAC address table capable of storing up to 16,000 entries. With a switching capacity of 2000 Gbit/s and support for 10G interfaces, the switch delivers the throughput required for aggregation and leaf roles in modern data centre designs. The 1U form factor and included power supply simplify rack deployment.

Suitable for

Data centre leaf or spine deployments requiring high switching capacity
Enterprise aggregation switches for virtualised workloads
Environments needing managed L2/L3 features and API-based automation
Racked server rooms where a 1U form factor is required

When it may not be suitable

This switch is not intended for small office or home deployments that do not require high port density or advanced L3 routing features. It also may be unnecessary where lower-speed copper RJ‑45 ports are the primary requirement, as the unit focuses on higher-speed optical interfaces rather than many basic Ethernet RJ‑45 ports.

Key specifications

Switch type: Managed L2/L3
Form factor: 1U rack-mountable, stackable
Switching capacity: 2000 Gbit/s
MAC address table size: 16,000 entries
Console port: RJ-45
10G support: Yes (supports higher-speed optical modules)
Supported standards: IEEE 802.1D, 802.1Q, 802.1Qaz, 802.1Qbb, 802.1ab, 802.1p, 802.1s, 802.1w, 802.1x, 802.3x, 802.3ad, 802.3ac
Product colour: Black
Weight: 9.7 kg
Power connector: AC-in jack (power supply included)

How to use

Install the S5248F-ON in a standard 19-inch equipment rack using the 1U mounting hardware. Connect power using the AC-in power connector and power supply provided. Use the RJ-45 console port for initial configuration via CLI, or manage the device remotely using SNMP, REST APIs or supported management tools. Configure VLANs, L2/L3 interfaces and QoS according to your network design, and integrate the switch into automation workflows if required.

What to consider before purchase

Ensure your environment requires high-speed optical interfaces and the provided switching capacity
Verify that a 1U rack-mountable, stackable form factor fits your rack space and deployment model
Confirm compatibility with your network management and automation tools (CLI, SNMP, REST APIs)
Check power and cooling requirements for rack installation

Usage recommendations

Deploy the S5248F-ON as a leaf or aggregation switch in software-defined or automated data centre networks; use API-driven configuration and QoS policies to optimise traffic flows and ensure predictable performance.

Specifications

Weight:: 9.7 kg
Basic switching RJ-45 Ethernet ports quantity:: 0
10G support:: Yes
Switch type:: Managed
Networking standards:: IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Q, IEEE 802.1D
Product colour:: Black

All features

Optical fiber

Switching optical modules type:: 100 Gigabit Ethernet

Ports & interfaces

Console port:: RJ-45
Fiber optic connector:: SFP28, QSFP28
Installed SFP+ modules quantity:: 0
Installed SFP modules quantity:: 0
Basic switching RJ-45 Ethernet ports quantity:: 0
SFP module slots quantity:: 48
Power connector:: AC-in jack

Design

Rack mounting:: Yes
Form factor:: 1U
LED indicators:: Y
Product colour:: Black
Stackable:: Yes
Number of fans:: 4 fan(s)
Ventilation system:: Back-to-front airflow

Protocols

Management protocols:: CLI, SNMP, REST, API’s

Performance

Internal memory:: 16000 MB
Minimum system requirements:: Linux Kernel 4.9
Built-in processor:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 310 W
Number of power supply units:: 2
Redundant power supply (RPS) support:: Yes
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power consumption (max):: 647 W
Power supply included:: Yes

Operational conditions

Operating relative humidity (H-H):: 5 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 45
Storage relative humidity (H-H):: 5 - 90
Heat dissipation:: 2208 BTU/h

Certificates

Certification:: RoHS

Weight & dimensions

Weight:: 9.7 kg
Height:: 44 mm
Width:: 434 mm
Depth:: 460 mm

Data transmission

MAC address table:: 16000 entries
Switching capacity:: 2000 Gbit/s
Packet buffer memory:: 32 MB

Management features

Switch layer:: L2/L3
Quality of Service (QoS) support:: Yes
Switch type:: Managed

Network

Networking standards:: IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Q, IEEE 802.1D
Port mirroring:: Yes
Link aggregation:: Yes
VLAN support:: Yes
10G support:: Yes
Virtual LAN features:: Tagged VLAN

Multicast features

Multicast support:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Security

Security algorithms:: 802.1x RADIUS, AES, EAP

Hide Show all

Instructions

mmo_66926443_1551944404_9804_1703.pdf

Description

Instructions

mmo_66926443_1551944404_9804_1703.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU9	2	30.06.2026 Best delivery	11,806.99 € Best price
WH109	2	14.07.2026	15,209.99 €

Available only for legal entities

11,806.99 €

Stock: 2

Delivery Date: 30.06.2026 Best delivery

Warehouse: EU9

15,209.99 €

Stock: 2

Delivery Date: 14.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the DELL S-Series S5248F-ON 210-APFB cost, and is it available for purchase?

The price is 11,806.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 4 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 30.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Dell products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Dell service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: weight, basic switching rj-45 ethernet ports quantity, 10g support, switch type, networking standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for DELL S-Series S5248F-ON 210-APFB?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
