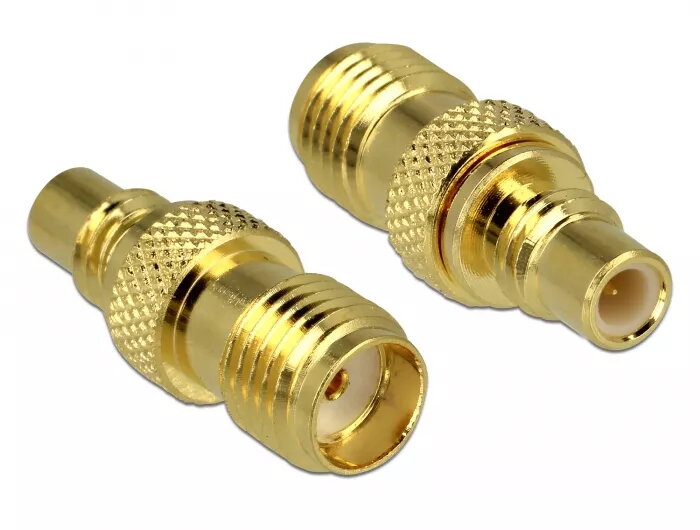

Coaxial Connector SMA DeLOCK 65855

The DeLOCK 65855 is an SMA coaxial connector designed for reliable connections in radio frequency (RF) systems. It provides a standardized 50 Ω impedance and converts between SMC and SMA interfaces in a compact housing with a depth of 19.5 mm, suitable for use in electronic projects and RF assemblies.

Advantages

The adapter offers a stable 50 Ω impedance for minimal signal reflection and is built to maintain signal integrity in RF applications. Its compact 19.5 mm depth saves space in tight installations, and the SMC-to-SMA configuration enables compatibility between different coaxial connector types. The metal construction ensures mechanical durability and consistent electrical contact.

Suitable for

• Connecting SMC devices to SMA-equipped equipment
• RF test setups and measurement rigs
• Prototyping and electronic projects involving coaxial connections
• Telecommunications and wireless equipment repairs

Key specifications

• Brand: DELOCK
• Model / MPN: 65855
• EAN: 4043619658558
• Impedance: 50 Ω
• Connector type: SMC to SMA adapter
• Depth: 19.5 mm

How to use

Align the SMC and SMA connectors, then carefully screw or push the adapter into place depending on the connector mating style. Ensure both mating surfaces are clean and free of debris before connection. Tighten by hand or with a suitable torque wrench to the manufacturer-recommended torque to avoid over-tightening and to secure reliable electrical contact.

Usage recommendations

Use the adapter in environments within the manufacturer's specified temperature and humidity ranges and avoid exposing it to corrosive substances. For best performance, regularly inspect the connector surfaces for wear or contamination and replace the adapter if mechanical damage or significant signal degradation is observed.
