PoE adapter DeLOCK 66024

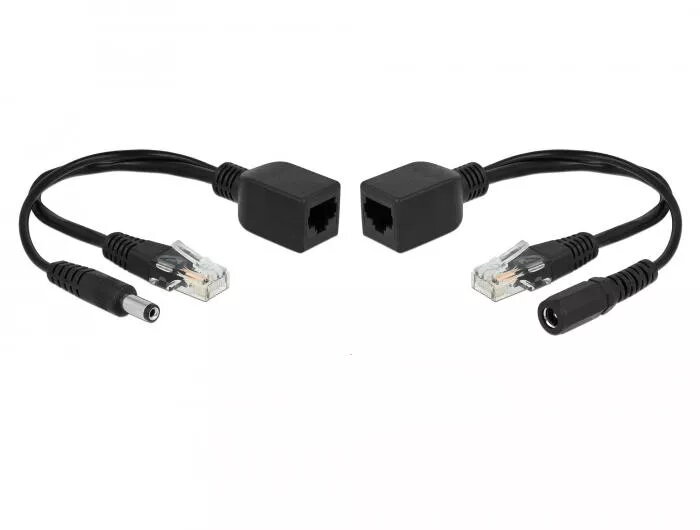

The PoE adapter DeLOCK 66024 enables a network cable to carry both a 10/100 Mbps Ethernet connection and DC power simultaneously. The set includes two adapters that must be connected to the cable so that a DC socket and plug are available on both ends, allowing an external power supply to feed devices over the same cable.

Advantages

This DeLOCK PoE adapter supports Fast Ethernet data rates (10/100 Mbit/s) while delivering DC power over the same cable. It accepts a wide input voltage range from 9 to 57 V and has an input current rating of 0.8 A. The compact black design with a single RJ-45 port simplifies installation and reduces the need for separate power wiring.

Suitable for

• Powering network devices such as IP cameras and access points over Ethernet
• Situations where separate power cabling is impractical or costly
• Temporary or permanent installations requiring combined data and power delivery

Key specifications

• Model: DeLOCK 66024
• Data rate: 10/100 Mbit/s (Fast Ethernet)
• Input voltage: 9–57 V
• Input current: 0.8 A
• Ethernet ports: 1 x RJ-45
• Colour: Black
• Brand: DELOCK
• MPN: 66024
• EAN: 4043619660247

How to use

Connect each adapter of the set to opposite ends of an Ethernet cable. Attach the DC plug on the power-supplying side to a compatible external power supply within the supported voltage range (9–57 V). On the powered device side, connect the DC socket to the device that requires power. Ensure the RJ-45 connectors are properly seated for network communication and verify polarity and voltage before powering the device.

Usage recommendations

Use suitable cabling and connectors rated for the intended distance and current; verify that the connected device accepts the supplied voltage and polarity before applying power. For long cable runs, check voltage drop to ensure reliable operation.
