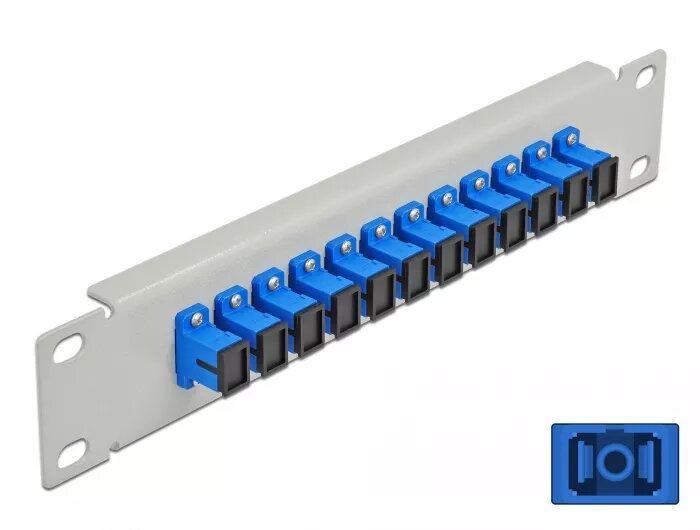

Fiber Optic Patch Panel DeLOCK 10" 12 Port SC Simplex Blue 1U Grey

The DeLOCK 10" 12 Port SC Simplex patch panel provides twelve SC Simplex fiber optic couplers in a 1U rack‑mountable metal housing. It is designed for installation in a standard 10" network cabinet and enables straightforward connection between fiber optic male connectors. The unit measures 44 mm width, 10 mm height and 254 mm depth and comes in blue and grey finish.

Advantages

The panel offers 12 SC Simplex ports for organized fiber termination and quick mating of SC male connectors. Its 1U metal construction is suitable for standard rack mounting, while the compact dimensions save space in network cabinets. The blue and grey colour coding helps identify ports and maintain a tidy installation.

Suitable for

• Telecommunications racks and 10" network cabinets
• Fiber backbone and distribution panels
• Data centers and server rooms requiring organized fiber management
• Patch locations where SC Simplex connections are used

Key specifications

• Brand: DELOCK
• Model / MPN: 66781
• EAN: 4043619667819
• Ports: 12 x SC Simplex
• Form factor: 1U, 10" rack mount
• Material: metal housing
• Colour: blue, grey
• Dimensions (W×H×D): 44 mm × 10 mm × 254 mm

How to use

Mount the patch panel into a 10" rack or cabinet using appropriate mounting screws. Insert SC Simplex male connectors into the corresponding SC couplers until they click into place to establish the connection. Route and secure fiber cables to avoid strain on connectors and to maintain bend radii. For removal, gently pull the connector from the coupler while supporting the cable to prevent stress.

Usage recommendations

Use appropriate fiber cleaning tools to clean connector endfaces before mating and follow standard fiber handling procedures to prevent damage. Ensure rack-mounted equipment is powered down or isolated according to site safety practices when performing major reconfigurations.
