Fiber Optic Patch Panel DeLOCK 10" 12 Port LC Duplex Blue 1U Grey

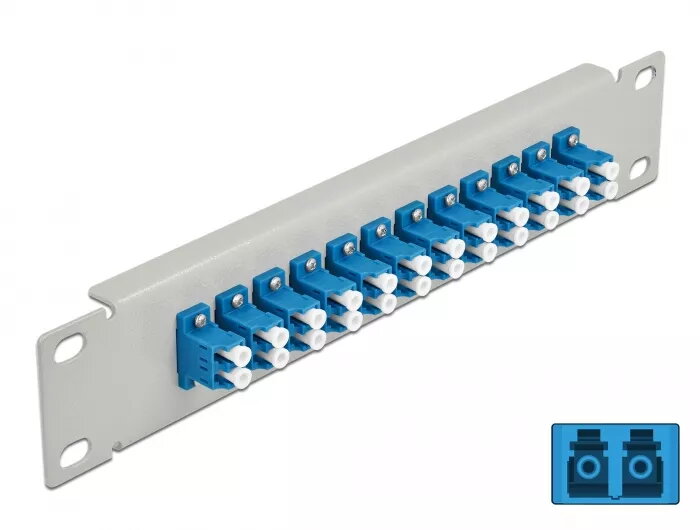

The DeLOCK 10" 1U fiber optic patch panel provides twelve LC Duplex couplers for easy and organized fiber connections in a 10" network cabinet. The panel is made of metal with a blue front and grey body and is designed for rack mounting to create a neat termination point for LC Duplex fiber connectors.

Advantages

The panel accommodates 12 LC Duplex ports in a compact 1U form factor, enabling high-density fiber termination. Metal construction offers mechanical stability for rack installations, and the front-mounted LC Duplex couplers allow simple plug-and-play mating of fiber optic connectors.

Suitable for

• Data center fiber management
• Telecommunications racks
• Server room backbone connections
• Network cabinets requiring LC Duplex terminations

Key specifications

• Ports quantity: 12 LC Duplex
• Form factor: 1U, 10" rack mount
• Product colour: Blue (front), Grey (body)
• Dimensions (approx.): width 44 mm, height 10 mm, depth 254 mm
• Manufacturer: DELOCK, MPN 66786, EAN 4043619667864

How to use

Install the patch panel into a standard 10" rack using the mounting holes. Route fiber cables to the rear of the panel and terminate them with LC Duplex connectors. Plug the LC Duplex male connectors into the front-mounted couplers to establish connections. Ensure cable management and strain relief are applied to avoid mechanical stress on the fiber terminations.

Usage recommendations

When installing, follow standard fiber handling procedures: keep connectors clean, avoid bending fibers beyond their minimum bend radius, and use appropriate cleaning tools before mating connectors to ensure optimal signal performance.
