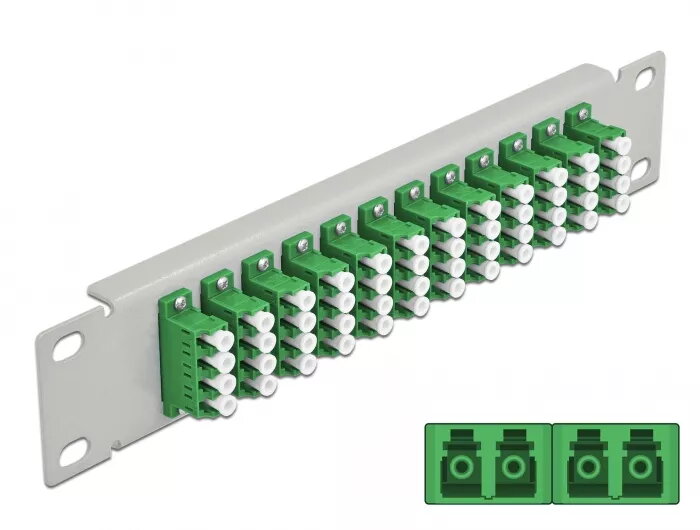

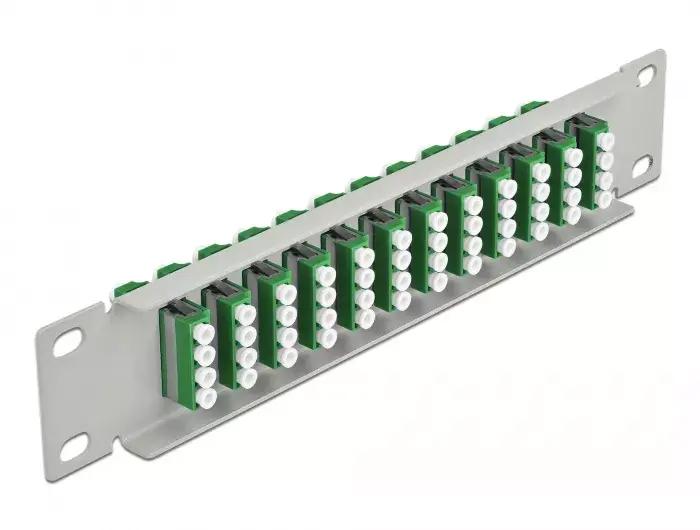

Fiber Optic Patch Panel DeLOCK 10" 12 Port LC Quad Green 1U Grey

This Delock 10" 1U fiber optic patch panel provides twelve LC Quad ports for connecting fiber optic male connectors. Constructed from metal for rack mounting, the panel is sized for a 10" network cabinet and combines green and grey finishes to support clear port identification and cable management.

Advantages

The panel offers twelve LC Quad couplers in a compact 1U form factor allowing high-density fiber connections in a standard 10" rack. Metal construction ensures durability and stability when mounted in network cabinets. The color-coded design helps visual identification of ports and organized cable routing.

Suitable for

• Data center and server room fiber interconnects
• Telecommunications racks requiring LC Quad connections
• Network cabinets and small form-factor rack installations

Key specifications

• Ports quantity: 12 (LC Quad)
• Form factor: 1U, 10" rack compatible
• Material: Metal
• Product colour: Green, Grey
• Dimensions (approx.): 44 mm width, 10 mm height, 254 mm depth
• Brand: DELOCK, MPN: 66797, EAN: 4043619667970

How to use

Mount the patch panel into a compatible 10" network cabinet using appropriate rack screws. Insert fiber optic male connectors into the LC Quad couplers until they click into place. Route and secure fiber cables to avoid sharp bends and mechanical stress. To disconnect, gently pull the connector straight out from the coupler.

Usage recommendations

Use compatible LC connectors and follow standard fiber handling procedures: keep connectors clean, avoid tight bends, and secure cables to prevent strain on the couplers.
