DeLOCK 19" Patch Panel 48 port Cat.5e 2U coloured RJ-45

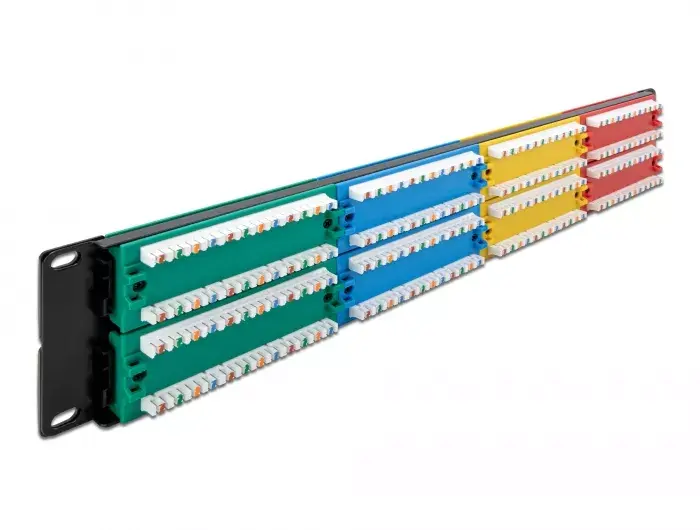

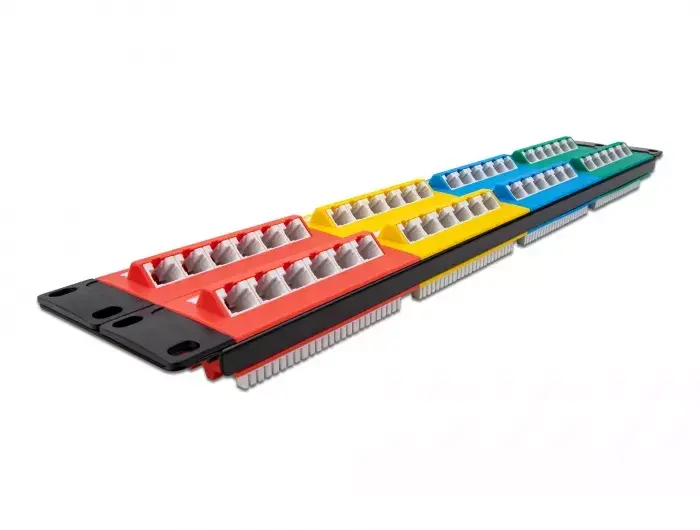

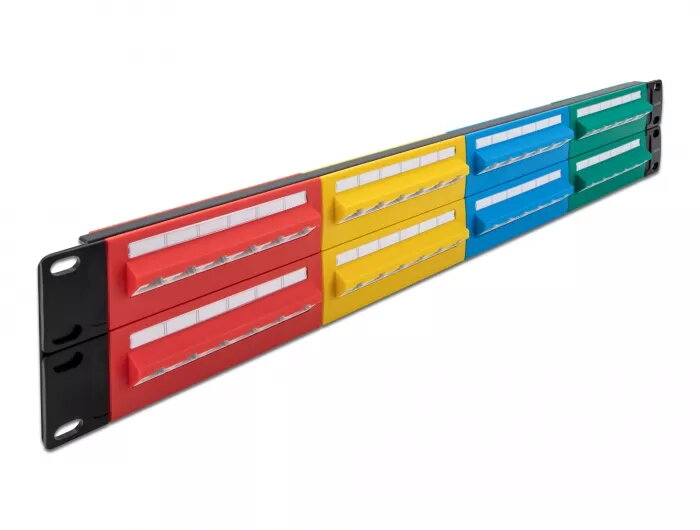

This DeLOCK 19" Patch Panel provides 48 Cat.5e ports in a 2U rack-mountable housing for structured network cabling. The panel uses RJ-45 connectors and LSA (punch-down) blocks to terminate up to 48 network cables and accepts AWG 22–26 conductors. The frame is constructed from metal and plastic and is available in multiple colours for port identification.

Advantages

The 2U design fits standard 19" cabinets and allows organised cable management for medium to large installations. Using LSA punch-down blocks ensures reliable terminations and compatibility with Cat.5e cabling. Coloured panels simplify identification of network segments or services. The metal and plastic construction provides durability while keeping weight and cost moderate.

Suitable for

• LAN patching and distribution in server rooms and network closets
• Office and campus network installations using Cat.5e cabling
• Racks where quick port identification by colour is useful

Key specifications

• Ports: 48 RJ-45 (Cat.5e)
• Rack unit: 2U, 19" mounting
• Termination: LSA punch-down blocks
• Supported AWG: 22–26
• Material: metal and plastic
• Colours: Blue, Green, Red, Yellow
• Brand: DELOCK, MPN: 66881, EAN: 4043619668816

How to use

Mount the patch panel into a standard 19" rack taking up 2U of space. Terminate each incoming network cable onto the LSA punch-down blocks using a suitable punch-down tool, following the T568A or T568B wiring scheme as required by your network. Connect patch cords to the front RJ-45 ports to link devices or switches. Label ports as needed for easier management.

Usage recommendations

For optimal performance, use Cat.5e-compliant cables and maintain proper cable routing to avoid excessive bend radii and interference. Verify wiring standard consistency across the installation and test each link after termination.
