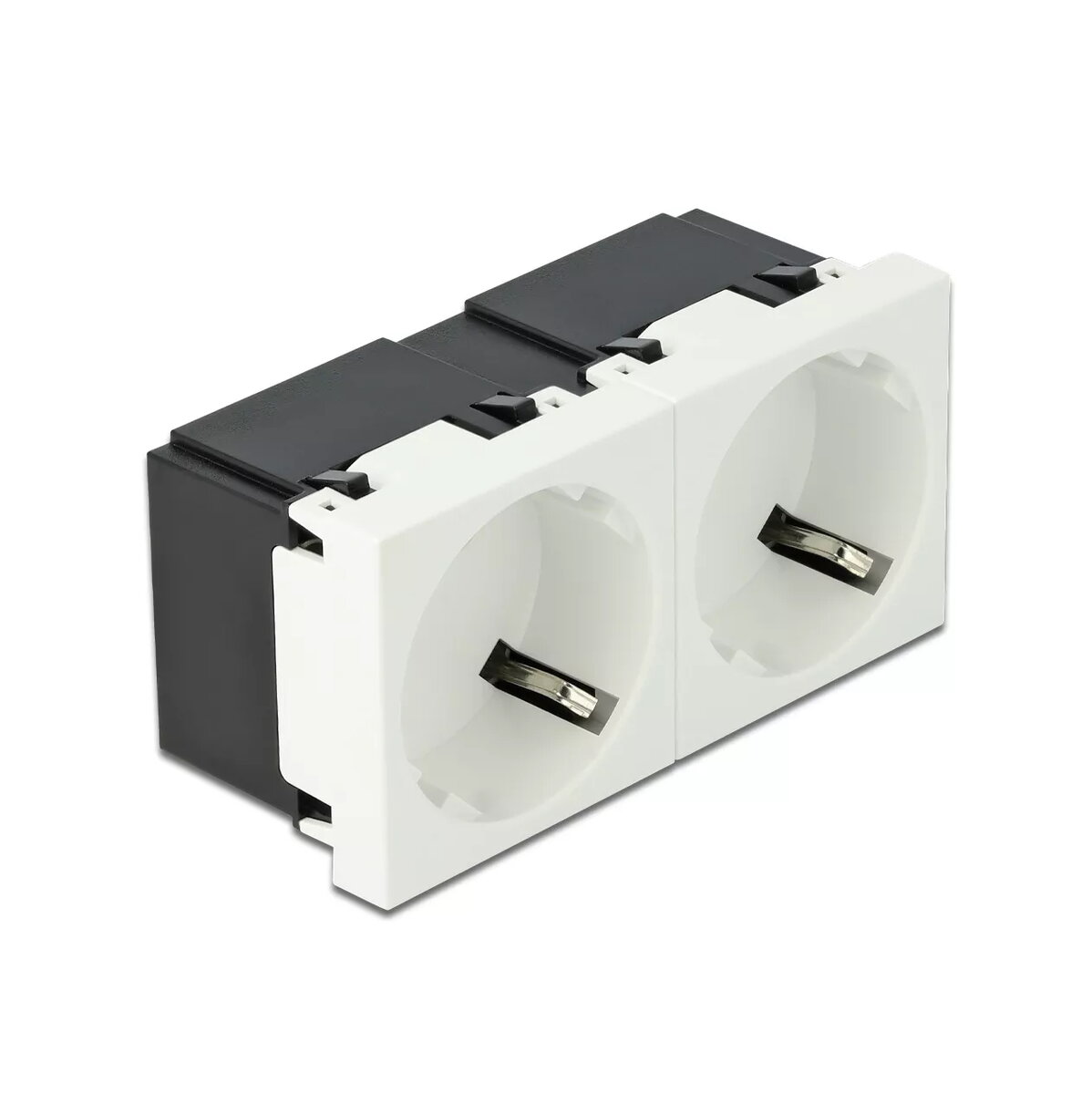

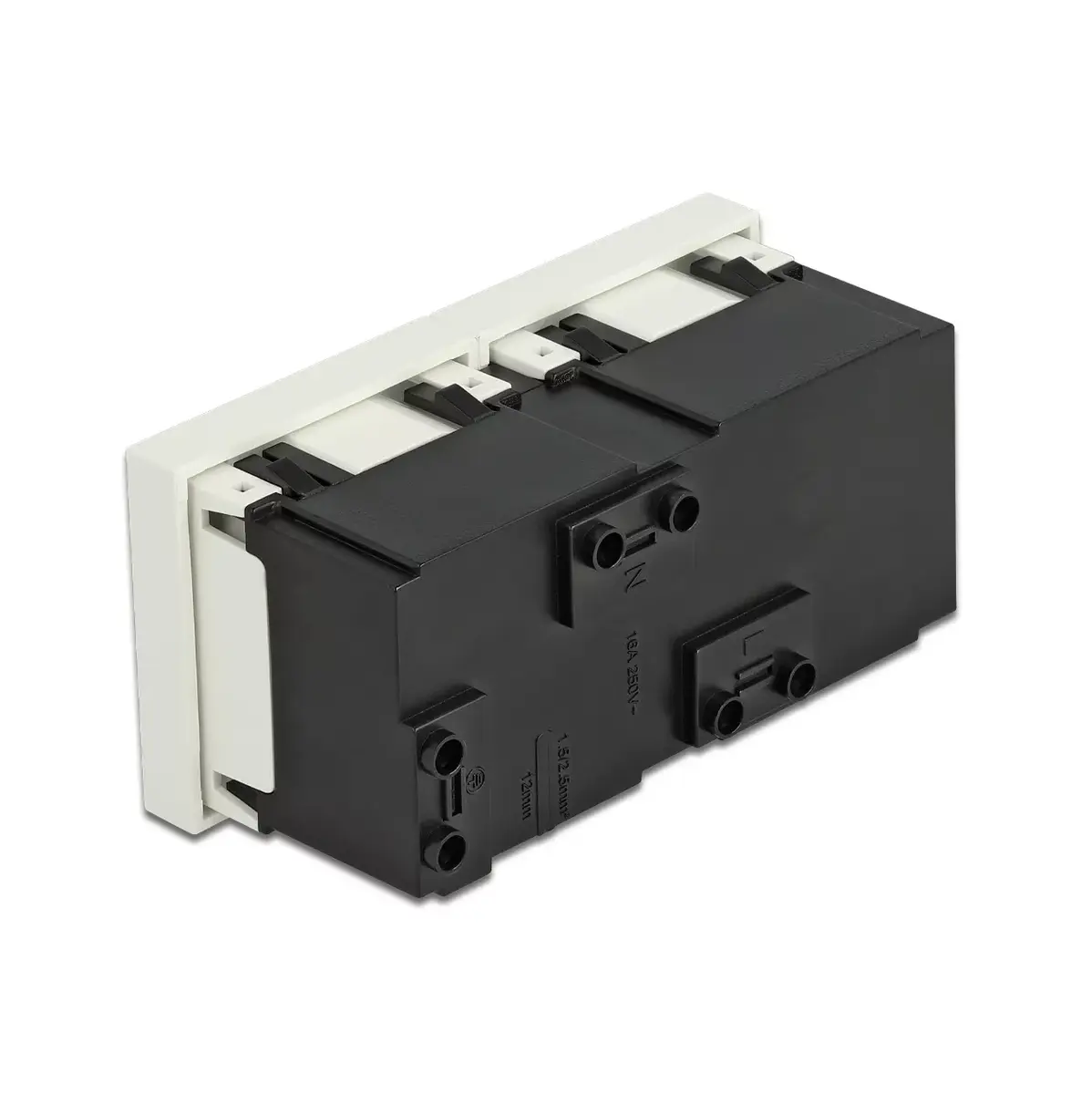

Wall Socket Outlet DELOCK 81423 — CEE 7/3, 16 A, 250 V, White, ABS/PC, 45×90 mm

DELOCK 81423 is a compact wall-mounted socket outlet with CEE 7/3 connections designed for fixed domestic and light commercial installations. The outlet supports two CEE 7/3 plugs and is rated for 250 V and 16 A (maximum 4000 W). Its housing is made of white ABS and polycarbonate, and the unit is intended for screw installation into a standard wall box with a visible footprint of 45×90 mm. A simple snap-in mechanism secures the module in place while allowing tool-free removal when needed.

Advantages

The socket provides two CEE 7/3 connections in a single compact module, saving wall space while enabling simultaneous use of two devices. Constructed from ABS and polycarbonate, the housing combines impact resistance and flame retardance suitable for typical indoor use. The screw-mount design offers stable electrical and mechanical installation, and the snap-in module mechanism simplifies maintenance or replacement without altering the fixed base.

Suitable for

• Fixed power supply for household appliances such as vacuum cleaners, lamps, and chargers
• Light commercial environments where a single, reliable dual outlet is required
• Replacement of single socket modules in standard European flush-mount wall boxes

Key specifications

• Plug type: CEE 7/3 (Schuko compatible)
• Rated voltage: 250 V
• Rated current: 16 A (max. power 4000 W)
• Housing material: ABS and polycarbonate
• Color: White
• Installation: Screw-mounted wall outlet with snap-in module
• Visible dimensions: 45 × 90 mm (width × height/depth footprint)
• Number of outlets: Two CEE 7/3 sockets

How to use

Switch off the circuit breaker before beginning installation. Mount the screw base into a compatible flush-mount wall box and secure with the provided screws. Connect the live, neutral and protective earth conductors to the corresponding terminals following local electrical codes. Attach the outlet module into the base using the snap-in mechanism until it is firmly seated. After completing wiring and securing the module, restore power and test the sockets with a suitable device or outlet tester to verify correct operation.

Usage recommendations

Use this socket only in dry indoor locations and within its electrical ratings. Ensure installation and any wiring changes are performed by a qualified electrician and comply with local regulations. Do not overload the outlet beyond 16 A total; distribute connected loads accordingly. Regularly inspect the socket for signs of damage or discoloration and replace the module if any defects are found.
