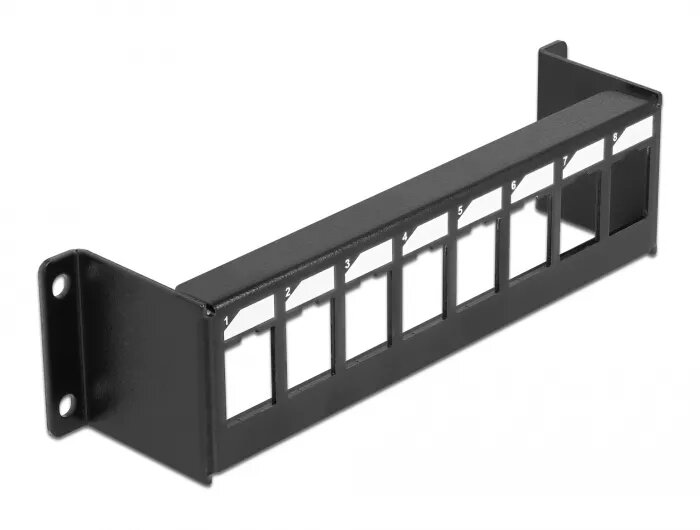

Patch panel DELOCK 86611, metal 19" 1U, 44 mm width, 41.6 mm height, 175 mm depth, black

DELOCK 86611 is a metal patch panel for 19" rack installation occupying 1U of rack space. Finished in black, the panel measures 44 mm in width, 41.6 mm in height and 175 mm in depth. Its compact steel construction provides a sturdy mounting surface for network connectors and cable routing in server rooms, telecommunications cabinets and small network enclosures. The panel accepts up to eight keystone modules with a standardized snap-in mounting layout, enabling flexible connector configurations for copper and fiber adapters or pass-through couplers.

Advantages

The metal construction ensures mechanical strength and durability while the black finish provides a neutral, professional appearance suitable for many installations. Standard 19" 1U dimensions and the snap-in keystone openings allow quick installation and easy reconfiguration of network ports. The shallow depth is suited to compact cabinets and enclosures where space behind the panel is limited. The product offers a stable mounting base for connector modules and contributes to organised cable management in rack systems.

Suitable for

• Mounting keystone connectors (up to 8 modules) such as RJ45, HDMI or fiber couplers
• Small server rooms and telecom closets with limited rack depth
• Network cabinets, enclosures and custom equipment racks
• Patch panels and structured cabling installations requiring a 1U metal faceplate

Key specifications

• Form factor: 19" rack, 1U height
• Material: metal (steel)
• Finish: black
• External dimensions: 44 mm (W) × 41.6 mm (H) × 175 mm (D)
• Keystone capacity: up to 8 snap-in modules
• Mounting: standard 19" rack or compatible enclosure mounting

How to use

Install the panel into a compatible 19" rack or enclosure using the rack's 1U mounting points. Snap keystone modules into the panel openings according to your required connector types, ensuring each module clicks securely into place. Route cables behind the panel and terminate or connect them to the installed keystone modules. Secure cabling as needed with ties or cable management accessories to maintain order and reduce strain on connectors. The shallow depth allows installation in racks and cabinets with limited rear clearance.

Usage recommendations

For reliable performance, select keystone modules appropriate for the intended signal type and maintain correct cable bend radii when routing wires behind the panel. If mounting in a high-density environment, plan connector layout to allow access for patching and maintenance. Use grounding practices recommended for metal rack components in your local installation standards.
