header-product TNC Connector DeLOCK 90016 RG-174 RG-316 Crimping
25.49 €

TNC Connector DeLOCK 90016 RG-174 RG-316 Crimping

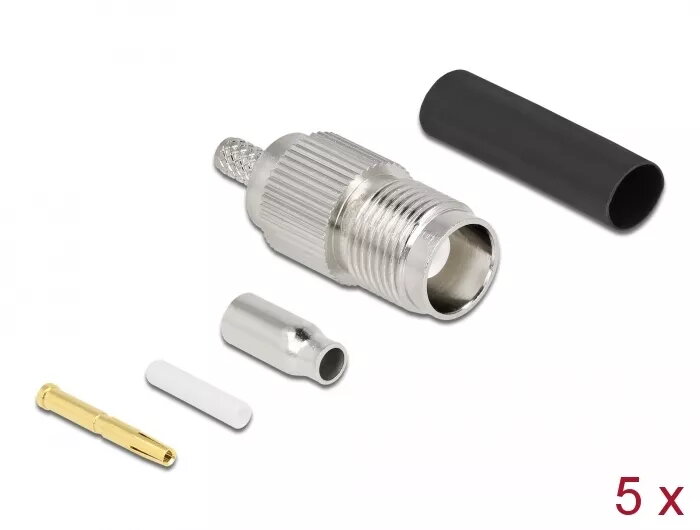

TNC Connector DeLOCK 90016 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

TNC Connector DeLOCK 90016 RG-174 RG-316 Crimping

{{email}}
You keep track of price changes

TNC Connector DeLOCK 90016 RG-174 RG-316 Crimping

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The DeLOCK TNC connector is designed for crimping RG-174 and RG-316 cables. It features nickel-plated contacts, ensuring durability and reliable performance with a 50 Ω impedance. The compact dimensions of 12 mm width, 30 mm depth, and 12 mm height make it suitable for various applications. Each package contains 5 connectors, providing a cost-effective solution for your connectivity needs.
Available at price 25.49 €: 21 pcs.
Total available for order: 42 pcs.
Warranty: 2 Years
SKU: 4133520
Manufacturer: DELOCK
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.10 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The DeLOCK TNC connector with matching shrink tube is intended for use in radio frequency technology to connect coaxial cables. It is designed specifically for crimping RG-174 and RG-316 cables and provides a 50 Ω impedance with nickel‑plated contacts for reliable electrical connection and corrosion resistance. The compact dimensions (12 mm width × 30 mm depth × 12 mm height) make the connector suitable for installations with limited space; the package contains five identical connectors.

Advantages

The TNC connector supports a standardized 50 Ω impedance and nickel‑plated contacts for durability and stable signal transmission. Its crimping design ensures a secure mechanical and electrical connection to RG-174 and RG-316 coaxial cables. The small form factor simplifies use in confined assemblies, and the included shrink tube improves strain relief and environmental protection at the joint.

Suitable for

  • Connecting RG-174 coaxial cables in RF applications
  • Connecting RG-316 coaxial cables in RF applications
  • Laboratory and test setups requiring compact 50 Ω TNC terminations
  • Equipment and devices with limited installation space

Key specifications

  • Brand: DELOCK
  • Manufacturer part number (MPN): 90016
  • EAN: 4043619900169
  • Connector type: TNC (crimp)
  • Compatible cables: RG-174, RG-316
  • Impedance: 50 Ω
  • Contact plating: nickel
  • Package quantity: 5 connectors
  • Dimensions (W × D × H): 12 × 30 × 12 mm

How to use

Prepare the RG-174 or RG-316 cable by stripping the outer jacket, braid, and dielectric to the recommended lengths for the crimp contact. Slide the shrink tube and crimp ferrule onto the cable, insert the centre conductor into the contact, and crimp the contact and ferrule using the appropriate crimping tool for the connector size. Position the connector body over the assembly, apply heat to the shrink tube to secure strain relief, and verify the mechanical and electrical integrity after assembly.

Usage recommendations

Use a crimping tool and dies matched to the DeLOCK TNC contact dimensions and verify cable strip lengths from the connector manufacturer. Test continuity and impedance after assembly to ensure correct installation and maintain RF performance.

All features
Height:
12 mm
Width:
12 mm
Depth:
30 mm
Product colour:
Silver
Impedance:
50 Ω
Package type:
Polybag
Connector type:
TNC
Connector contacts plating:
Nickel
Quantity per pack:
5 pc(s)
