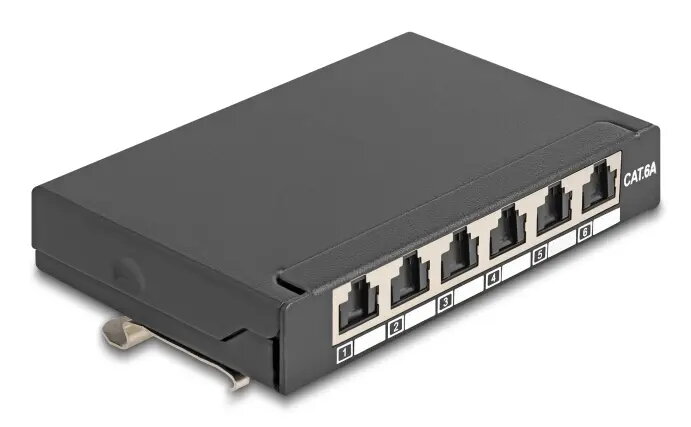

Patch panel DELOCK Mini Desktop RJ45 6-port Cat.6A shielded, metal, black, 80×22×125 mm

DELOCK Mini Desktop RJ45 6-port Cat.6A patch panel in a compact black metal housing, designed for small network installations, patching and endpoint consolidation. The unit provides six shielded RJ45 jacks compatible with Cat.6A cabling and supports 22–26 AWG wiring. Its small footprint (80×22×125 mm) and multiple mounting options make it suitable for mounting on a table, wall or 35 mm DIN rail in offices, server closets or distribution boxes where rack space is limited.

Advantages

The metal housing offers sturdy mechanical protection and electromagnetic shielding for reliable operation in office and industrial environments. Each RJ45 port is shielded and fitted with a dust protection flap to reduce contamination of contacts. Compact dimensions and included DIN rail clips allow flexible installation on desks, walls or standard 35 mm DIN rails without requiring a full rack.

Suitable for

• Small office networks and branch workstations
• Server closets and technical rooms with limited rack space
• Patch consolidation and endpoint distribution for switches
• Industrial or distribution cabinets mounted on DIN rails

Key specifications

• Ports: 6 x RJ45 (shielded)
• Category: Cat.6A
• Supported wire sizes: 22–26 AWG
• Material: metal housing
• Colour: black

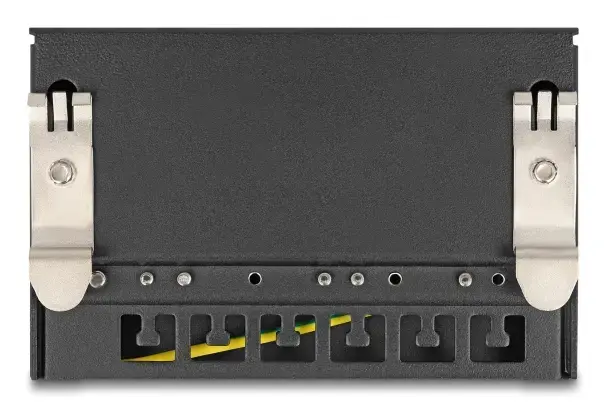

• Mounting options: table, wall, 35 mm DIN rail (clips included)
• Dimensions: 80 × 22 × 125 mm

How to use

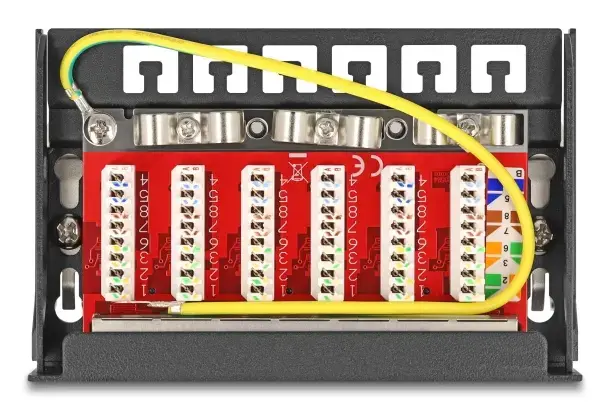

Mount the patch panel to the chosen surface using the supplied DIN rail clips for 35 mm rails or secure it directly to a wall or tabletop with appropriate screws. Terminate shielded Cat.6A cables to the RJ45 jacks following standard wiring schemes (T568A or T568B) and ensure correct shielding continuity by connecting cable drain wires to the housing or grounding point if required. Close dust protection flaps when ports are not in use to protect contacts from dirt.

Usage recommendations

For optimal performance, use shielded Cat.6A cables and maintain proper cable management to minimize bend radii and interference. Verify wiring and shield grounding after installation and perform network tests to confirm link speeds and signal integrity. Avoid exposing the unit to excessive moisture or corrosive environments.
