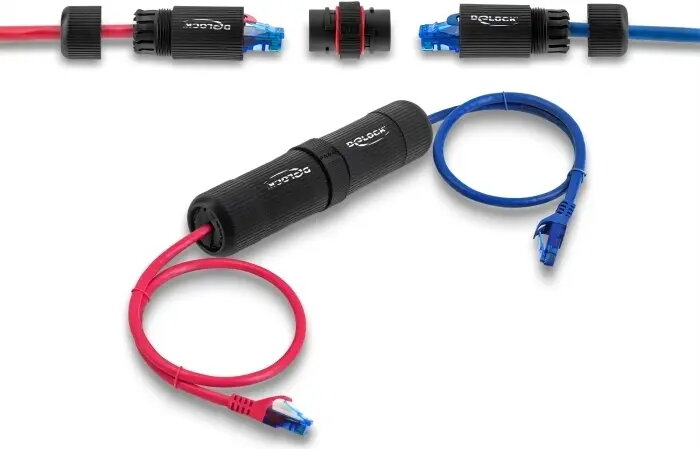

Network Cable Delock RJ45 Connector to Cat.6 with M16 Thread 90780

The Network Cable Delock RJ45 Connector to Cat.6 with M16 Thread 90780 from DELOCK provides a shielded connector solution for Cat.6 network cables with an integrated M16 threaded coupling. Designed to create a mechanically secure and electrically stable connection, this RJ45 connector supports the wiring and termination requirements of Cat.6 cabling while offering protection and strain relief at the cable entry point. The product is intended for use where a threaded mating interface and robust RJ45 termination are required.

Advantages

This Delock RJ45 connector combines Cat.6 compatible termination with an M16 threaded interface to secure the connector in enclosures or bulkhead panels. The design reduces mechanical stress on the cable and helps maintain contact integrity under repeated mating cycles. It is engineered for straightforward installation and long-term durability in standard networking environments.

Suitable for

• Installing Cat.6 network cable terminations where a threaded M16 coupling is required
• Panel or enclosure feed-throughs that need a secure RJ45 connector mounting
• Applications requiring a compact, durable RJ45 termination for Ethernet cabling

Key specifications

• Connector type: RJ45 compatible termination for Cat.6 cabling
• Thread type: M16 threaded coupling for panel or bulkhead mounting
• Intended cable category: Cat.6
• Mechanical features: strain relief and secure mounting via thread
• Use environment: networking installations and enclosed panels

How to use

Prepare the Cat.6 cable by stripping the outer jacket and exposing the twisted pairs according to standard Cat.6 wiring practices. Terminate the individual conductors to the RJ45 contacts following the required pinout for the network application. Slide the connector housing and M16 threaded coupling into place, secure the threaded coupling into the panel or mating component, and ensure the strain relief is correctly positioned to prevent conductor movement. Verify continuity and correct wiring after installation before placing the assembly into service.

Usage recommendations

Use appropriate Cat.6 termination tools and test equipment to ensure reliable electrical performance. When installing into panels or enclosures, tighten the M16 coupling to the manufacturer’s recommended torque limits for a secure fit without deforming the connector. Avoid exposing the connector to environments outside standard networking conditions unless additional environmental protection is applied.
