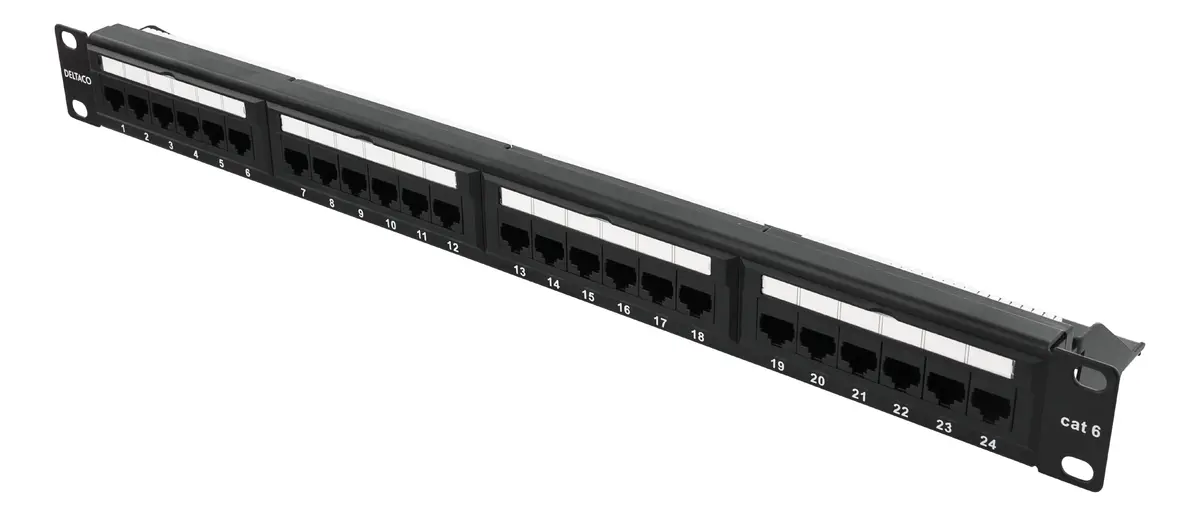

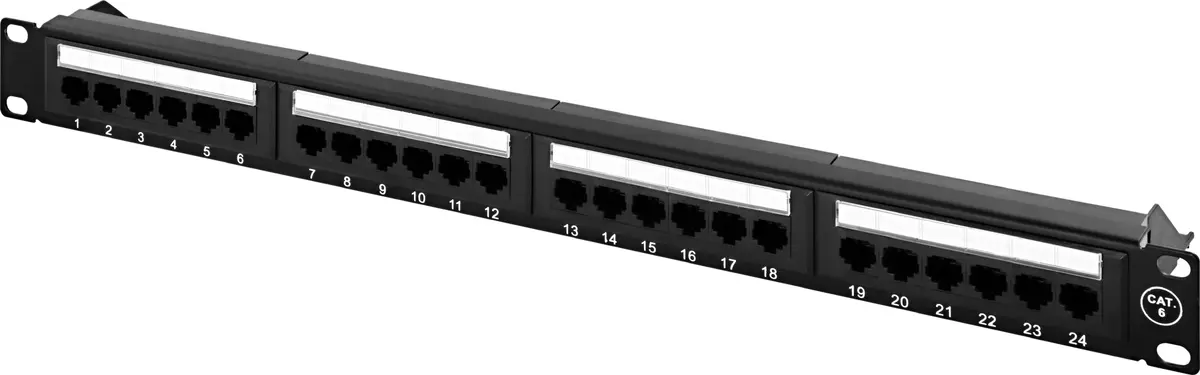

DELTACO PAN-112 19-inch Patch Panel with 24x RJ45 Ports Cat6 UTP 1U Rack Mount Black

The DELTACO PAN-112 19-inch Patch Panel with 24x RJ45 Ports Cat6 UTP 1U Rack Mount Black is a reliable networking component designed to streamline cable management in server rooms and network cabinets. Built with a robust metal housing, this unshielded patch panel accommodates twenty-four RJ45 ports and supports high-speed data transfer rates up to 10000 Mbit/s, making it suitable for demanding network infrastructures. Featuring color-coded Krone terminals for both T568A and T568B wiring standards, the panel ensures straightforward and accurate termination for solid conductors ranging from 22 to 26 AWG.

Advantages

This patch panel provides a structured and organized approach to network cabling, helping to reduce clutter and maintain optimal airflow within server racks. The inclusion of an integrated cable support on the rear simplifies cable dressing and can be removed when installation space is strictly limited. Designed to fit standard 19-inch racks with a 1U height profile, it maximizes rack space efficiency while delivering dependable performance for Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet environments.

Suitable for

• Organizing network cables in server rooms and data centers
• Enterprise and office local area network installations
• Supporting 10 Gigabit Ethernet, Gigabit Ethernet, and Fast Ethernet networks
• Terminating 22-26 AWG solid network cables securely

When it may not be suitable

This patch panel is unshielded and may not be appropriate for installations exposed to high levels of electromagnetic interference where shielded Cat6A or STP solutions are required. Additionally, it is specifically designed for 19-inch rack mounting and cannot be easily deployed in wall-mounted desktop enclosures without a compatible rack frame.

Key specifications

• 24 RJ45 ports
• Cat6 UTP unshielded performance
• 1U rack capacity
• Supports data transfer rates up to 10000 Mbit/s and 250MHz
• Compatible with 22-26 AWG solid conductors
• Color-coded Krone terminals for T568A and T568B
• Durable metal housing in black color

How to use

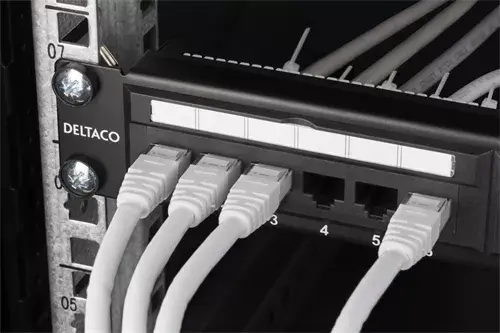

Begin by securing the 1U patch panel firmly into your standard 19-inch rack using appropriate mounting hardware. Route the network cables from your infrastructure to the rear of the panel, utilizing the integrated cable support bar to relieve tension on individual lines. Strip the outer jacket of each cable to expose the twisted pairs, and punch down the individual wires into the corresponding color-coded Krone terminals using a punch-down tool according to your chosen T568A or T568B wiring scheme. Once all connections are terminated and verified, patch cables can be connected from the front RJ45 ports to your network switches or routers.

What to consider before purchase

• Ensure your setup utilizes a standard 19-inch rack with at least 1U of available space
• Verify that your network cabling consists of solid conductors between 22 and 26 AWG
• Determine whether an unshielded UTP patch panel meets your environment's electromagnetic requirements

For optimal network performance and longevity, ensure proper cable dressing at the rear of the panel and avoid exceeding the recommended bending radius of your Cat6 cables during installation.
