WiFi Adapter Devolo Magic 1 WiFi mini

Name: WiFi Adapter Devolo Magic 1 8559
Brand: Devolo
SKU: 3785600
Price: 49.49 EUR
Availability: OutOfStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

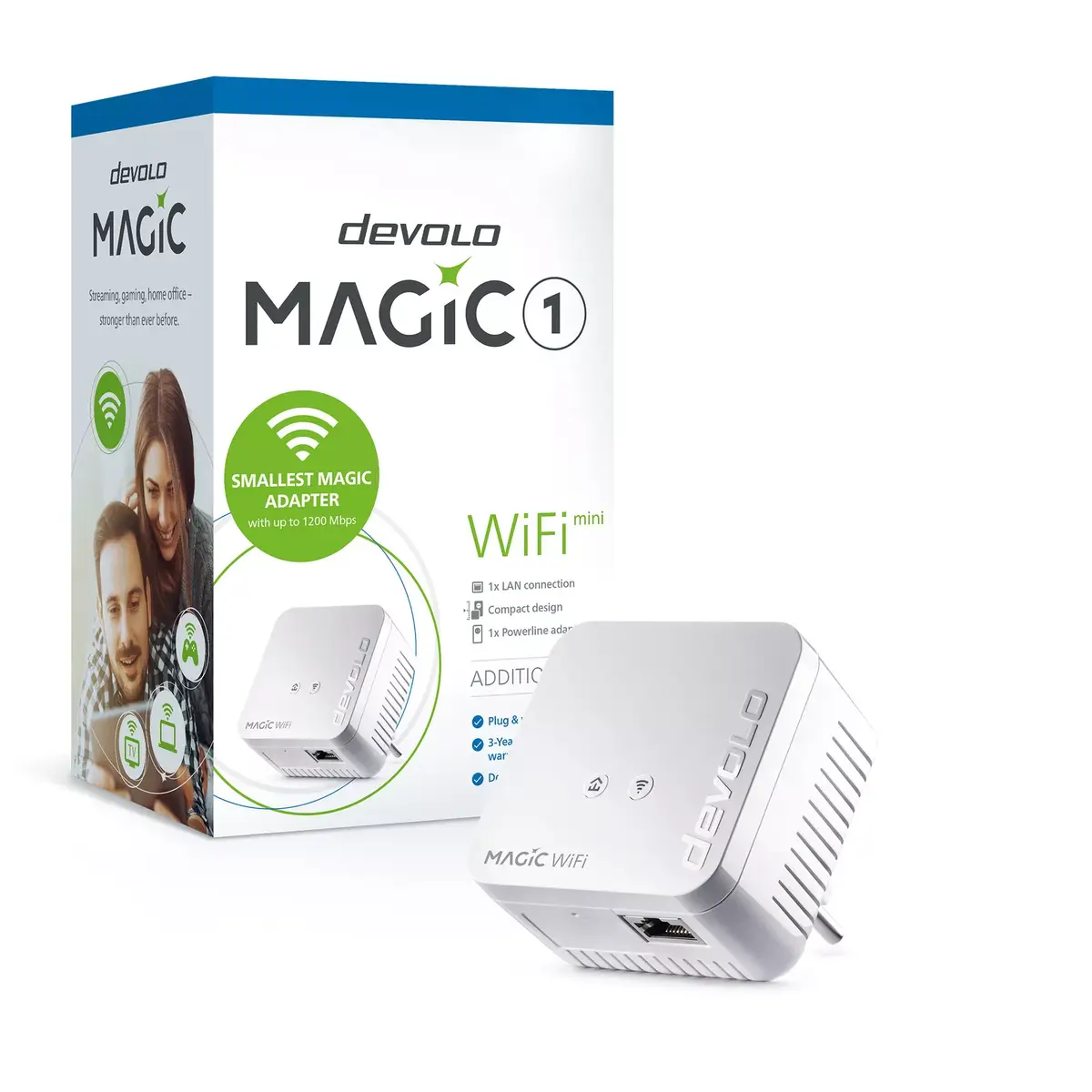

WiFi Adapter Devolo Magic 1 WiFi mini Photo 3

WiFi Adapter Devolo Magic 1 WiFi mini Photo 4

WiFi Adapter Devolo Magic 1 WiFi mini Photo 5

Short description

The Devolo Magic 1 WiFi mini offers a maximum data transfer rate of 1200 Mbit/s, supporting IEEE 802.11 standards. It features an internal antenna, LED indicators for PLC, and is compatible with various operating systems including Windows and Mac. Compact design with dimensions of 68x68x41 mm and low power consumption (4.4 W typical, 1 W standby) makes it an efficient choice for seamless internet connectivity.

Warranty: 2 Years

SKU: 3785600

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Devolo Magic 1 WiFi mini is a compact powerline Wi‑Fi adapter that extends wired and wireless network coverage through existing electrical cabling. With a maximum data transfer rate of 1200 Mbit/s and support for IEEE 802.11n/g/b standards, the unit combines a built‑in power socket, integrated Wi‑Fi and an Ethernet LAN port to provide flexible connectivity in small apartments or multi‑room homes. LED indicators show PLC activity and the internal antenna design keeps the housing compact (68 x 68 x 41 mm) while maintaining energy efficiency with typical power consumption around 4.4 W and low standby usage.

Advantages

The adapter delivers fast data throughput over powerline connections and provides both wireless and wired access without requiring additional cabling. Its built‑in power socket preserves wall outlet availability and the compact white enclosure fits unobtrusively into most interiors. LED indicators simplify status monitoring and low power consumption reduces operating costs while maintaining continuous network availability.

Suitable for

Extending internet access to rooms without direct router coverage
Streaming video and media in living rooms or bedrooms
Connecting smart TVs, consoles or set‑top boxes via Ethernet
Providing Wi‑Fi for home offices and remote workstations

Key specifications

Maximum data transfer rate: 1200 Mbit/s
Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interfaces: integrated Wi‑Fi, Ethernet LAN port
Built‑in power socket: Yes
Antenna: internal
Typical power consumption: 4.4 W; standby: 1 W
Dimensions (W×H×D): 68 × 68 × 41 mm
Color: White

How to use

Plug one Magic 1 WiFi mini adapter into a power outlet near your router and connect it to the router with an Ethernet cable. Place the second adapter in the room where you need network access and allow the devices to pair via the electrical wiring; LED indicators will confirm PLC connection. Use the Ethernet LAN port for wired devices or connect wirelessly using the adapter's Wi‑Fi network. Configure network settings or security options through the Devolo interface or compatible management tools on your computer or mobile device.

Usage recommendations

For optimal performance, connect the adapters to mains outlets that are not switched by wall switches and avoid using multi‑socket extenders or surge protectors between the adapter and the wall. Place the adapter away from large appliances that may create electrical noise and, where possible, use the Ethernet port for bandwidth‑sensitive devices such as gaming consoles or smart TVs.

Specifications

Built-in power socket:: Yes
Wi-Fi:: Yes
Ethernet LAN:: Yes
Maximum data transfer rate:: 1200 Mbit/s
Product colour:: White
Networking standards:: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

All features

Performance

Wi-Fi standards:: Wi-Fi 4 (802.11n), 802.11g, 802.11b
Security algorithms:: WPS-PBC, WPS-PIN, WPS, WPA2, WPA, 128-bit AES
Plug and Play:: Yes
Maximum data transfer rate:: 1200 Mbit/s
Ethernet LAN:: Yes
Modulation:: QPSK, OFDM, DSSS, BPSK, 4096-QAM, 1024-QAM, 256-QAM, 64-QAM
Networking standards:: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Maximum operating distance:: 400 m
Compatible products:: devolo Magic
Ethernet LAN (RJ-45) ports:: 1
Wi-Fi:: Yes
Quality of Service (QoS) support:: Yes
WLAN data transfer rates supported:: 1200, 300
Ethernet LAN data rates:: 1200, 100, 10
Power plug:: Type C
Copper ethernet cabling technology:: 100BASE-TX, 1000BASE-T, 10BASE-T
Built-in power socket:: Yes
PowerLine standard:: HomePlug AC
Ethernet LAN interface type:: Fast Ethernet
Top Wi-Fi standard:: Wi-Fi 4 (802.11n)
MIMO:: Yes

Logistics data

Harmonized System (HS) code:: 85171800

Packaging data

Package weight:: 335 g
Package depth:: 118 mm
Package height:: 92 mm
Package width:: 190 mm
Package type:: Box

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -25 - 70
Operating temperature (T-T):: 0 - 40

Design

Certification:: CE
Antenna type:: Internal
LED indicators:: PLC
Product colour:: White
Antennas quantity:: 2

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 4.4 W
Power consumption (standby):: 1 W
AC input frequency:: 50
AC input voltage:: 196 - 250

System requirements

Mac compatibility:: Yes
Windows operating systems supported:: Windows 8 Pro, Windows 8, Windows 7 x64, Windows 7, Windows 10 x64, Windows 10 Pro x64, Windows 10, Windows 8 Pro x64
Mac operating systems supported:: Mac OS X 10.13 High Sierra, Mac OS X 10.12 Sierra, Mac OS X 10.11 El Capitan
Linux operating systems supported:: Ubuntu 15.10, Ubuntu 15.04, Ubuntu 14.10
Mobile operating systems supported:: iOS, Android

Packaging content

Cables included:: LAN (RJ-45)
Manual:: Yes
Quick installation guide:: Yes
Quantity per pack:: 1 pc(s)

Weight & dimensions

Height:: 41 mm
Width:: 68 mm
Depth:: 68 mm
