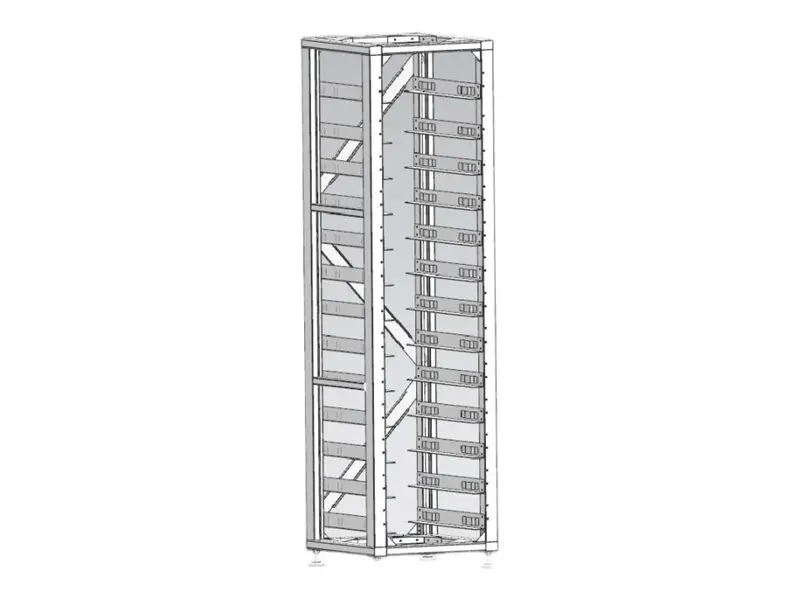

Deye 3U-HRack ESS HV BOS-G Battery Rack 13 Layers

The Deye 3U-HRack ESS HV BOS-G Battery Rack 13 Layers is a robust mounting solution specifically engineered for the Deye high-voltage energy storage system. Designed to accommodate up to 13 battery modules in a vertical layout, this rack provides secure organization and optimal space utilization for both residential and commercial solar power installations. Its sturdy construction ensures reliable support and efficient integration of battery components within your energy storage setup.

Advantages

This battery rack offers exceptional structural stability and durability, ensuring that heavy high-voltage battery modules remain securely in place during operation. The 13-layer configuration maximizes vertical space efficiency, allowing users to consolidate their energy storage system into a compact footprint. Proper vertical integration also facilitates organized cable management and contributes to a clean, professional installation appearance while supporting system reliability.

Suitable for

• Residential high-voltage solar energy storage systems using Deye BOS-G batteries
• Commercial photovoltaic installations requiring structured battery module mounting
• Expanding existing Deye high-voltage energy storage capacities
• Centralized energy management setups in technical rooms or utility areas

When it may not be suitable

This product is not suitable for low-voltage battery systems or battery models from manufacturers other than Deye that do not match the specified mounting dimensions. Additionally, it cannot be used in applications where horizontal battery placement is strictly required by space constraints.

Key specifications

• Designed for Deye ESS HV BOS-G energy storage systems
• 13-layer vertical configuration
• High-voltage battery rack design
• Robust structural mounting for solar power setups

How to use

Begin by assembling the rack structure on a level and stable surface in the designated installation area, ensuring sufficient clearance around the unit for ventilation and maintenance. Carefully mount each compatible high-voltage battery module sequentially from the bottom layer upward, securing each unit according to standard installation guidelines. Connect the necessary power and communication cables between the modules and the inverter system only after all mechanical components are fully secured and inspected.

What to consider before purchase

• Verify compatibility with your specific Deye BOS-G battery modules and inverter setup
• Check available floor space and vertical ceiling clearance in your installation location
• Ensure the mounting surface can support the combined weight of the rack and fully loaded batteries
• Confirm that local electrical and fire safety regulations for high-voltage energy storage are met

Usage recommendations: Always follow the manufacturer guidelines and local electrical codes during assembly and installation. Ensure the rack is placed in a clean, dry, and temperature-controlled environment to maximize the operational lifespan of the battery system.
